Detailed Specifications

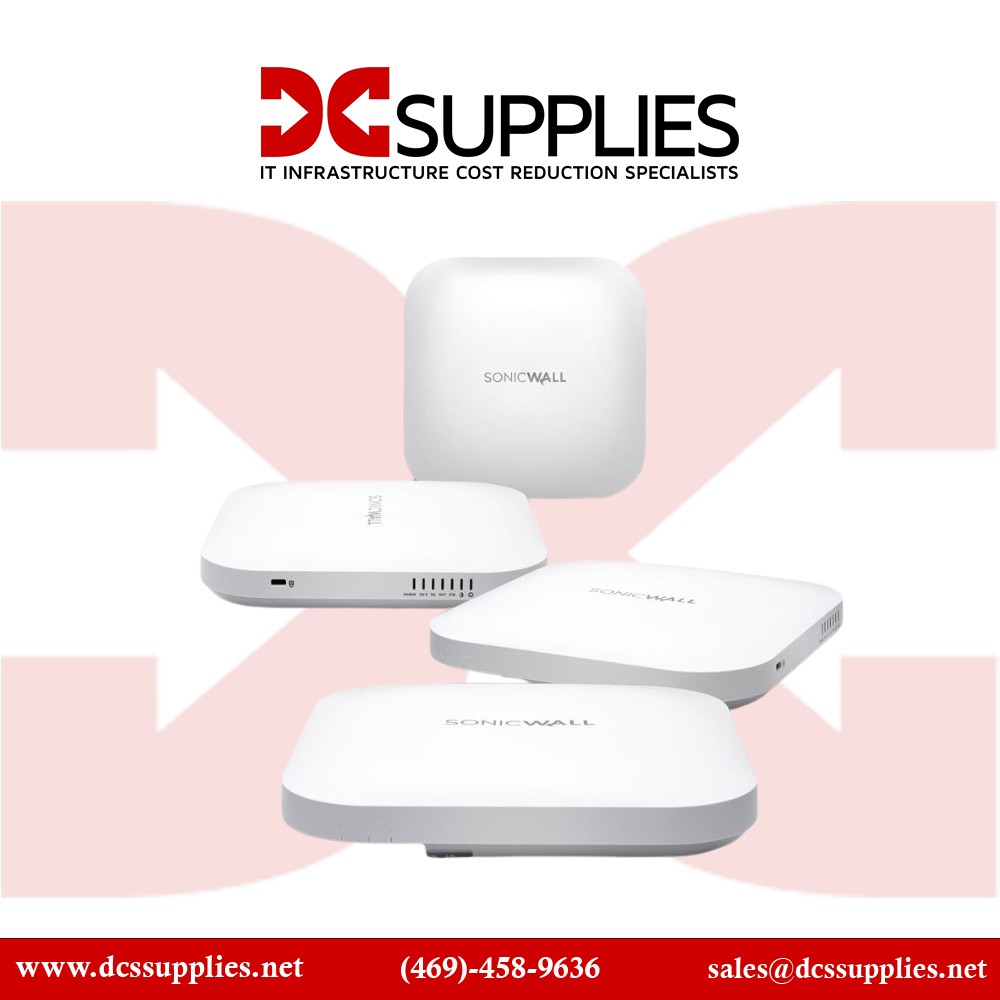

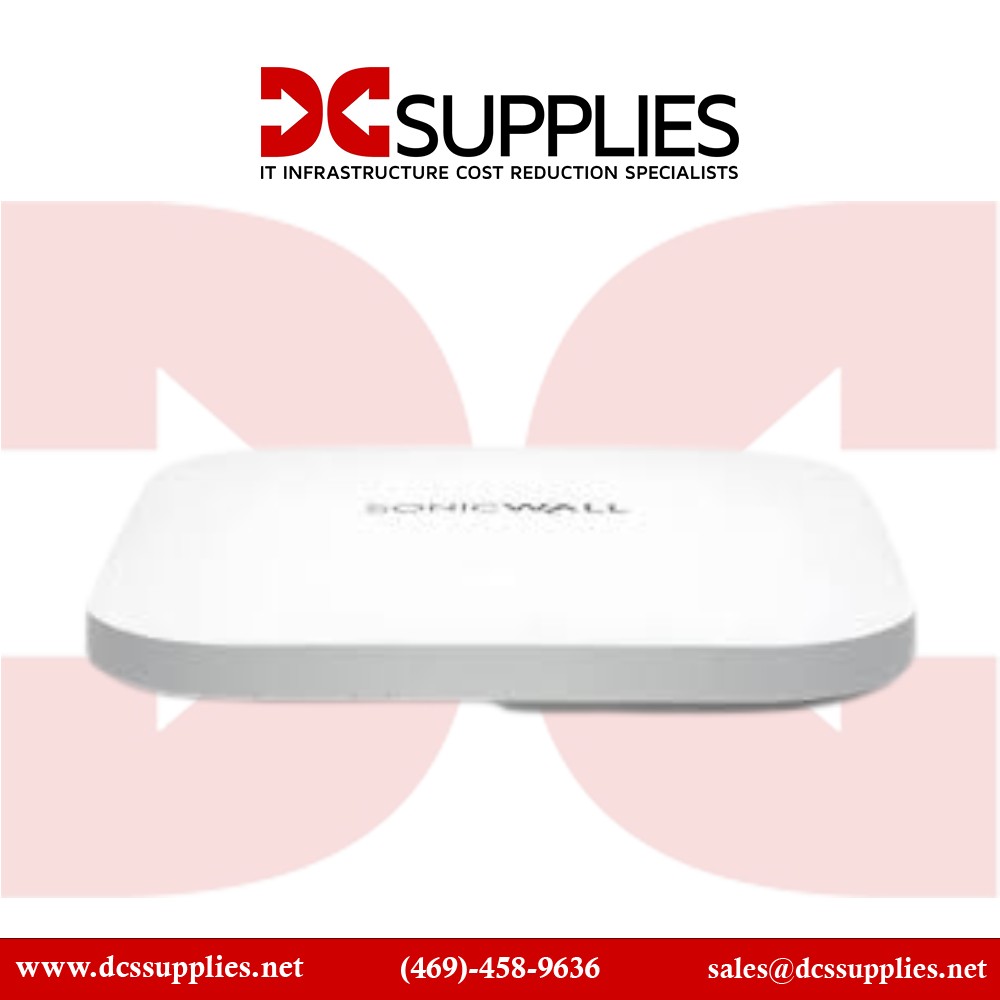

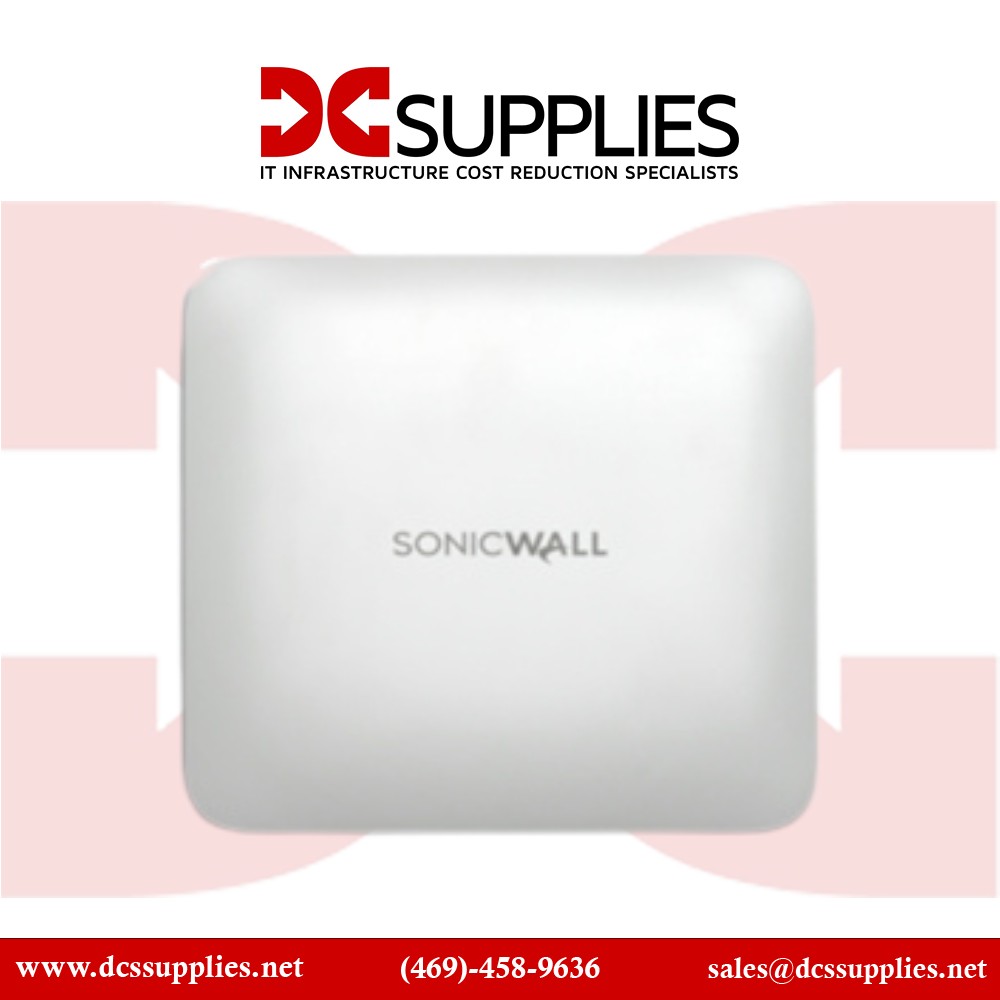

SonicWall 03-SSC-0341 SonicWave 681 Wi-Fi 6 Access Point
Overview
The SonicWall SonicWave 681 (part number 03-SSC-0341) is a high-performance Wi-Fi 6 (802.11ax) wireless access point meticulously engineered to address the demanding connectivity and security requirements of modern enterprise and high-density environments. It delivers a robust, secure, and scalable wireless solution designed to support a multitude of devices and applications simultaneously, effectively eliminating network bottlenecks and enhancing user experience. This access point is ideal for organizations seeking to upgrade their wireless infrastructure to leverage the full benefits of Wi-Fi 6 technology, ensuring reliable and fast connectivity across their premises. Leveraging advanced Wi-Fi 6 capabilities, the SonicWave 681 features 8x8 MU-MIMO (Multi-User, Multiple-Input, Multiple-Output) on the 5 GHz band and 4x4 MU-MIMO on the 2.4 GHz band, coupled with 1024 QAM modulation. This combination significantly boosts data transfer efficiency and throughput, achieving up to 4.8 Gbps on the 5 GHz band and up to 1.148 Gbps on the 2.4 GHz band, while substantially reducing latency by up to 75% compared to previous generations. Beyond speed, the SonicWave 681 integrates SonicWall's best-in-class security features, including WPA3 encryption, Deep Packet Inspection (DPI), and Real-Time Deep Memory Inspection (RTDMI), to provide comprehensive protection against an evolving threat landscape. A dedicated scanning radio further enhances security by enabling continuous threat detection and prevention capabilities, including rogue AP detection. Designed for flexible deployment, the SonicWave 681 features an indoor, plenum-rated form factor, suitable for ceiling, wall, or desktop mounting. It supports Multi-Gigabit 802.3bt PoE++ (Power over Ethernet) for simplified installation with a single cable for both power and data, utilizing a 5GBase-T RJ-45 port. The device also includes a USB 3.0 port for external 4G/5G LTE modem support, ensuring critical backup connectivity. Management is streamlined through the intuitive, cloud-based SonicWall Wireless Network Manager, offering centralized control, zero-touch deployment, and integrated switch management for comprehensive network oversight from a single pane of glass.
