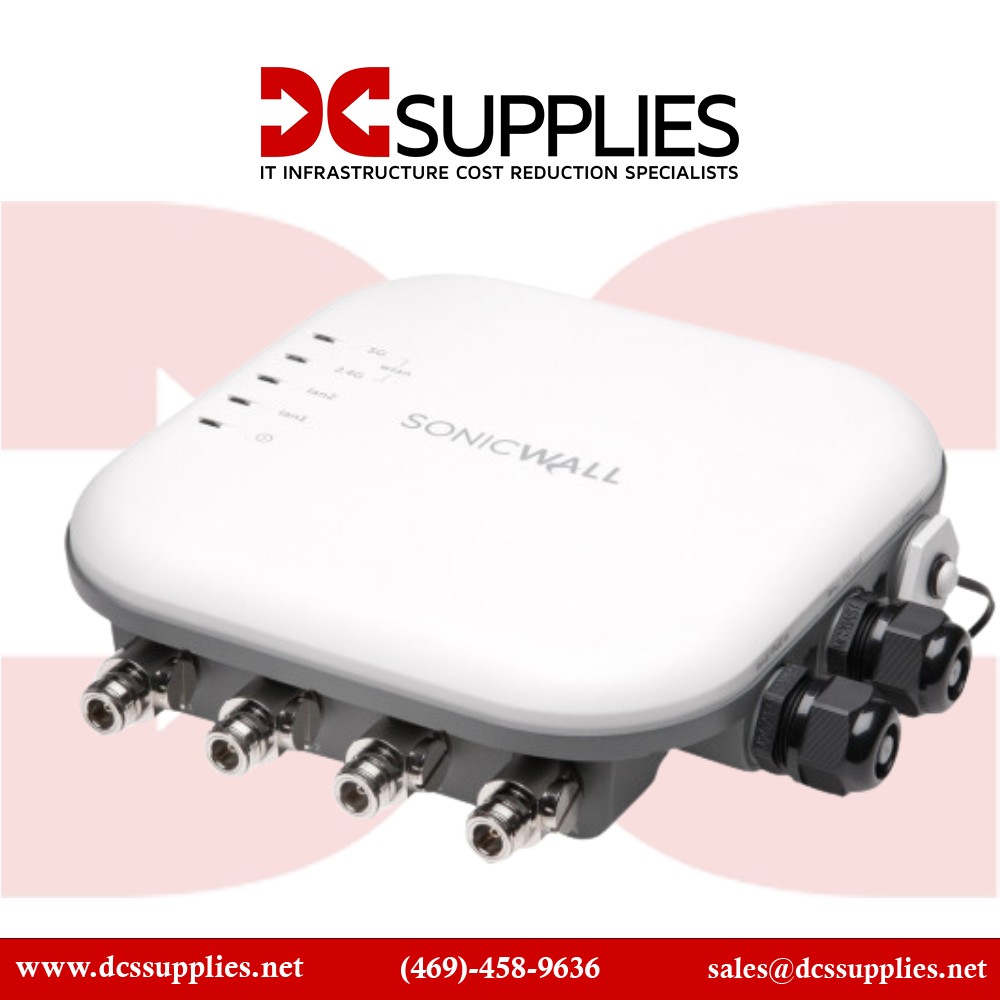

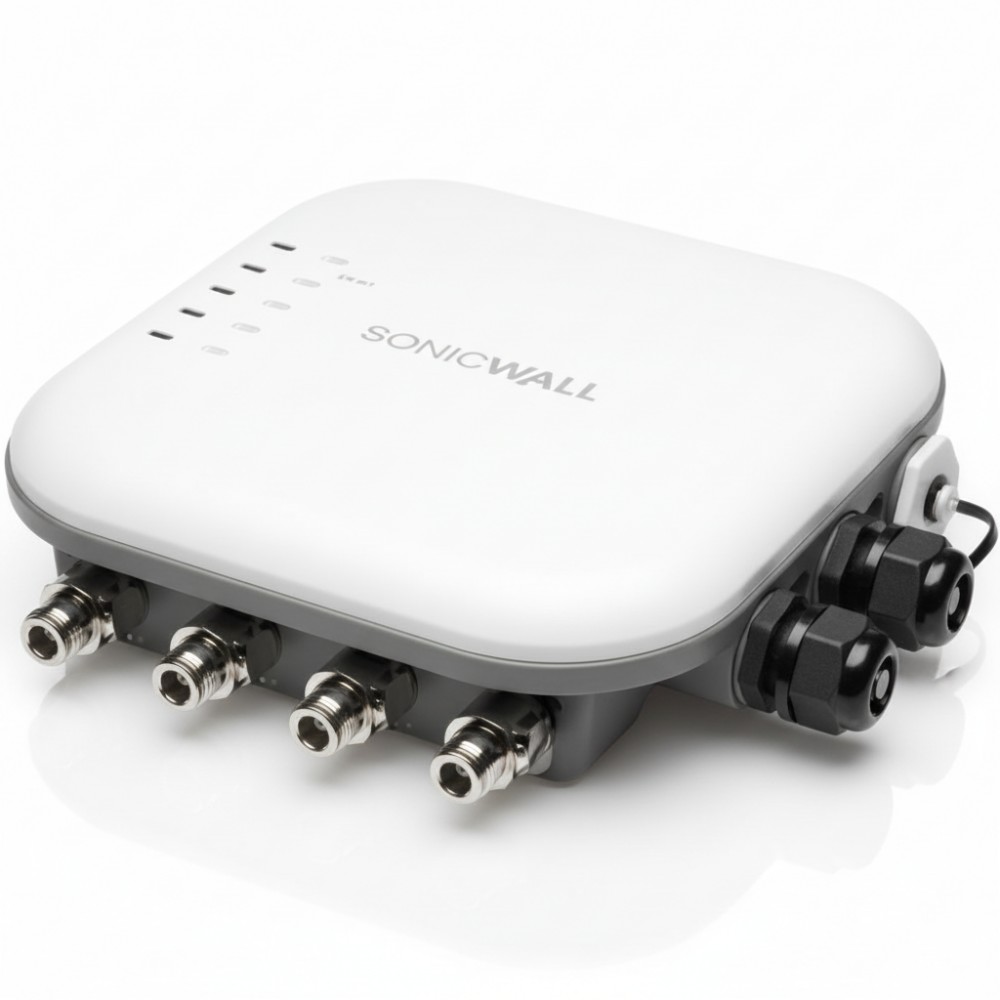

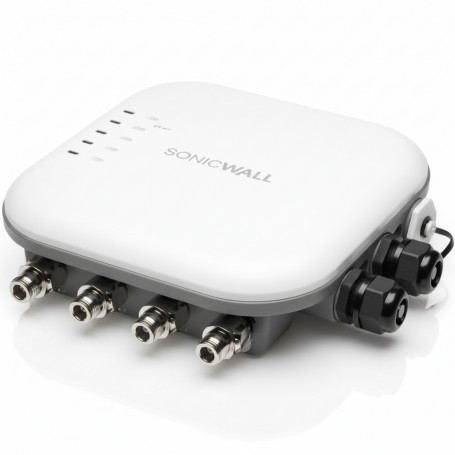

SonicWall 01-SSC-2570 SonicWave 432o wireless access point WiFi 5 View larger

SonicWall 01-SSC-2570 SonicWave 432o wireless access point WiFi 5

New

"SonicWave 432o Wireless AP with Wave 2 Wi-Fi"

×




  • New

Detailed Specifications

SonicWall 01-SSC-2570 SonicWave 432o Tri-Radio 802.11ac Wave 2 AP

Overview

The SonicWall SonicWave 432o Wireless Access Point, identified by part number 01-SSC-2570, provides robust, high-performance wireless connectivity and advanced security for small to mid-sized organizations and distributed enterprises. Designed to meet the demands of modern wireless environments, this tri-radio access point leverages IEEE 802.11ac Wave 2 technology to deliver a superior user experience with enhanced speed, coverage, and reliability. It addresses the critical need for secure, high-speed wireless access without compromising network integrity. This access point integrates seamlessly into a comprehensive SonicWall security ecosystem, allowing for centralized management and unified threat prevention across both wired and wireless networks. It is particularly well-suited for environments requiring robust security features, such as wireless intrusion detection and prevention, virtual access point segmentation, and content filtering, ensuring that wireless traffic is as secure as any wired connection. The inclusion of a dedicated security radio for rogue AP detection further strengthens the network's defensive posture, providing continuous monitoring and threat mitigation. Deployable in various indoor settings with ceiling or wall-mountable options, the SonicWave 432o is ideal for office spaces, retail branches, and educational institutions. Its 2.5 GbE port facilitates high-speed backhaul, ensuring that network bottlenecks are minimized. Management is streamlined through the SonicWall Wireless Cloud Manager, supporting Zero-Touch Deployment for simplified rollout across multiple locations, thereby reducing operational overhead and accelerating infrastructure expansion.

Key Features

  • Tri-radio architecture with dedicated security scanning
  • High-speed 802.11ac Wave 2 with 4x4 MU-MIMO
  • Integrated 2.5 Gigabit Ethernet uplink port
  • Advanced rogue AP detection and packet capturing
  • Centralized cloud management for streamlined deployment

Specifications

SpecificationValue
Brand SonicWall
Part Number 01-SSC-2570
Product Type Wireless Access Point
Series SonicWave 432o
Dimensions (Height) 2.4 inches
Dimensions (Width) 9.5 inches
Dimensions (Depth) 9.3 inches
Weight 4.85 lbs
Wireless Standard IEEE 802.11ac Wave 2
Frequency Bands 2.4 GHz, 5 GHz
Wireless Transmission Speed 1.69 Gbit/s
MIMO Technology 4x4 MU-MIMO
Radios 3 (one 5 GHz, one 2.4 GHz, one dedicated security)
Ethernet Ports 1 x 2.5 GbE
Form Factor Ceiling Mountable, Wall Mountable
Power over Ethernet (PoE) Support Yes (Requires external PoE injector or PoE switch, not included with 01-SSC-2570)
