SonicWall 02-SSC-2670

SonicWave 432o Wireless Access Point WiFi5

Intro Overview:

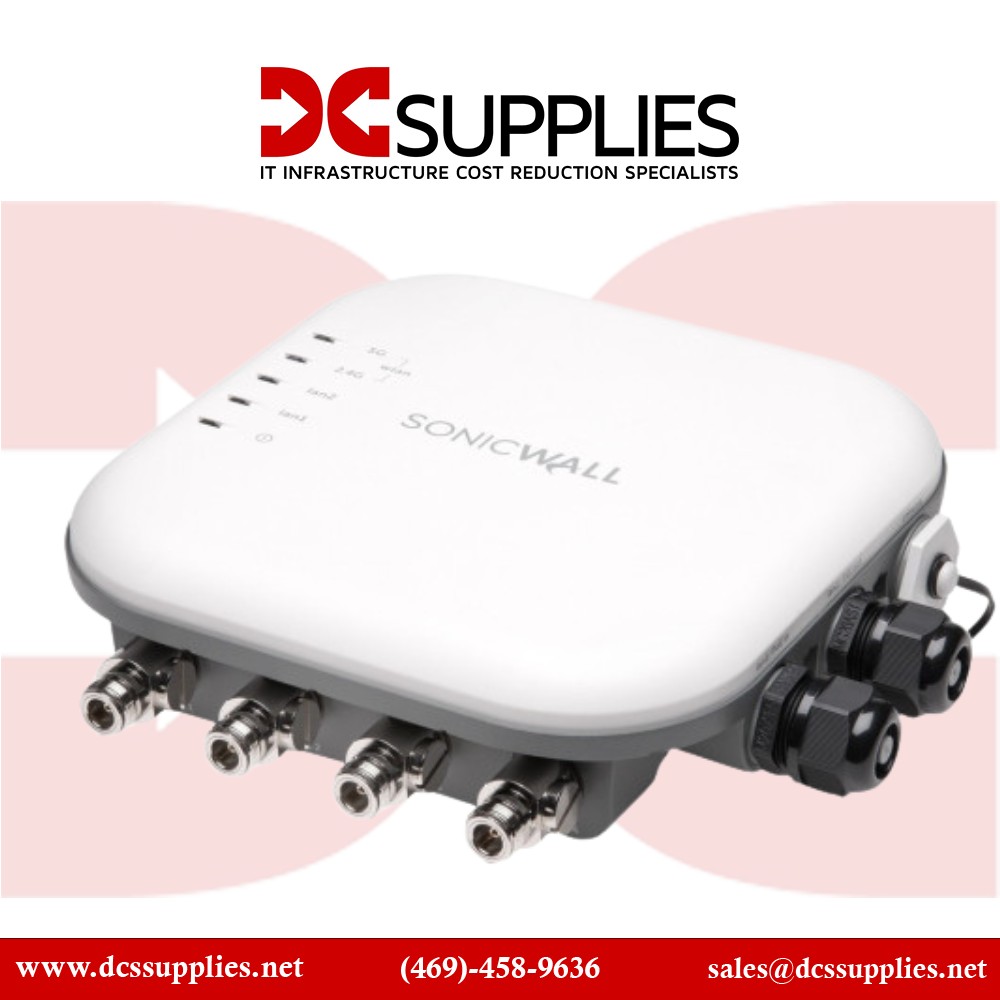

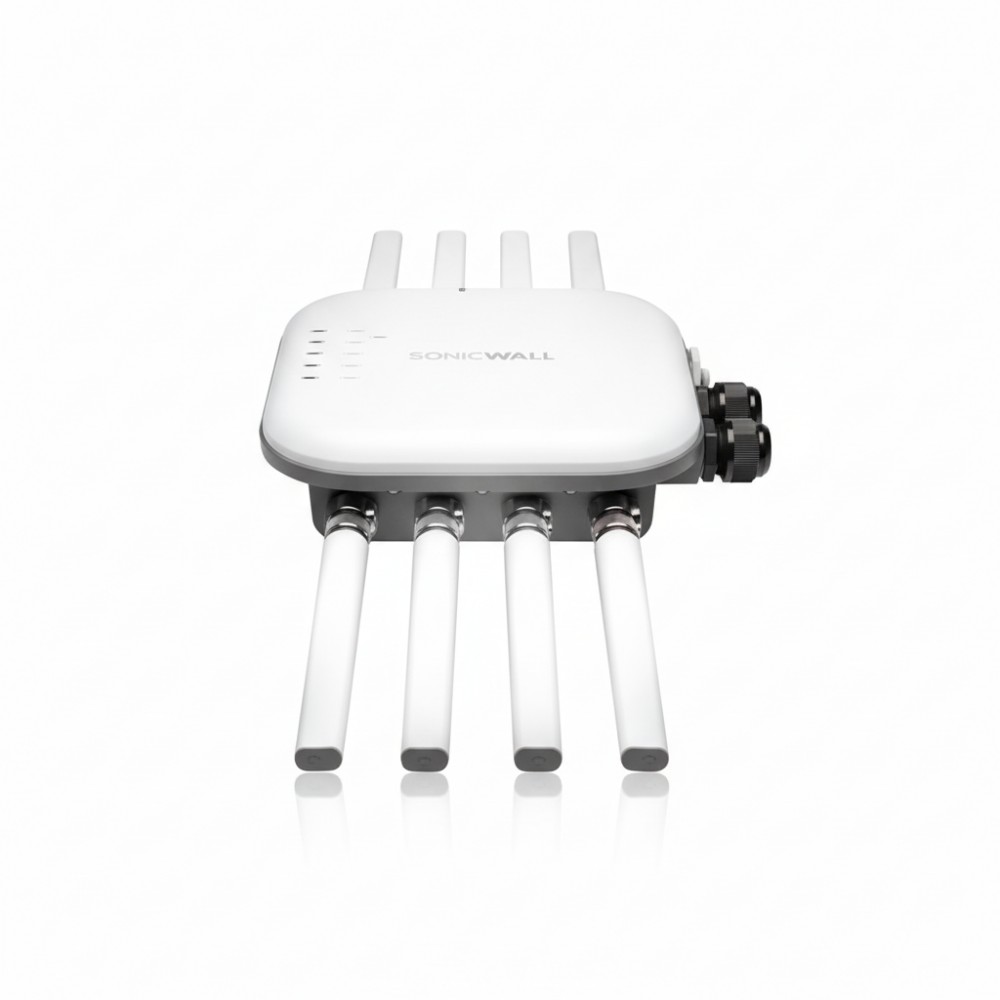

The SonicWall 02-SSC-2670 is a SonicWave 432o, a high-performance wireless access point designed for outdoor use. Featuring an IP67-rated weatherproof enclosure, this Wi-Fi 5 (802.11ac) device is built to extend secure, reliable wireless connectivity to outdoor environments such as campuses, public spaces, and parking lots, ensuring consistent performance regardless of weather conditions. This specific model is a hardware-only unit, allowing for flexible management and licensing options.

Expanded Overview:

The SonicWall SonicWave 432o leverages the Wi-Fi 5 (802.11ac Wave 2) standard, providing a total maximum data rate of 2.6 Gbps across its dual-band radios. With its powerful 4x4:4 MU-MIMO spatial stream configuration, this access point is optimized for high-density client environments. The outdoor-rated hardware is protected by an IP67 enclosure, ensuring durability against dust and water. It includes a 2.5 GbE port with PoE+ input and a 1 GbE port with PoE output for powering a secondary device. This access point can be centrally managed through a SonicWall firewall or the Wireless Network Manager (WNM), offering seamless integration and streamlined administration for secure outdoor networks.

Features :

The SonicWall SonicWave 432o is a feature-rich wireless access point.

Product Key Features

  • Outdoor-rated IP67 enclosure
  • Wi-Fi 5 (802.11ac) standard support
  • Dual-band concurrent operation (2.4 GHz and 5 GHz)
  • 4x4:4 MU-MIMO technology
  • High-speed 2.5 GbE backhaul
  • PoE+ (802.3at) power input with PoE output

Reliability & Performance :

The SonicWall SonicWave 432o is engineered for high reliability and consistent performance, even in challenging outdoor environments. Its robust IP67-rated hardware ensures it can withstand harsh weather conditions, while the advanced Wi-Fi 5 technology guarantees a stable and fast wireless connection. The PoE output feature adds a layer of flexibility for deployments. This wireless access point is an excellent addition to any network infrastructure seeking modern wireless capabilities in outdoor spaces.

Key Features :

  • Outdoor-rated and weather-resistant
  • High-speed Wi-Fi 5 performance
  • Dual-band operation for optimal coverage
  • PoE+ for simplified installation
  • Robust and reliable design

Specifications :

SpecificationDetails
Model Number 02-SSC-2670
Brand SonicWall
Product Type Wireless Access Point
Wireless Standard Wi-Fi 5 (802.11ac Wave 2)
Environment Outdoor
IP Rating IP67
Radio Bands Dual-band (2.4 GHz & 5 GHz)
Antenna Configuration 4x4:4 MU-MIMO
Ports 1x 2.5 GbE (PoE+), 1x 1 GbE (PoE out)
Power PoE+ (802.3at)
PoE Output Yes (13W max)
Mesh Networking Supported
Dimensions (HxWxD) 2.3" x 7.8" x 7.8"
