Detailed Specifications

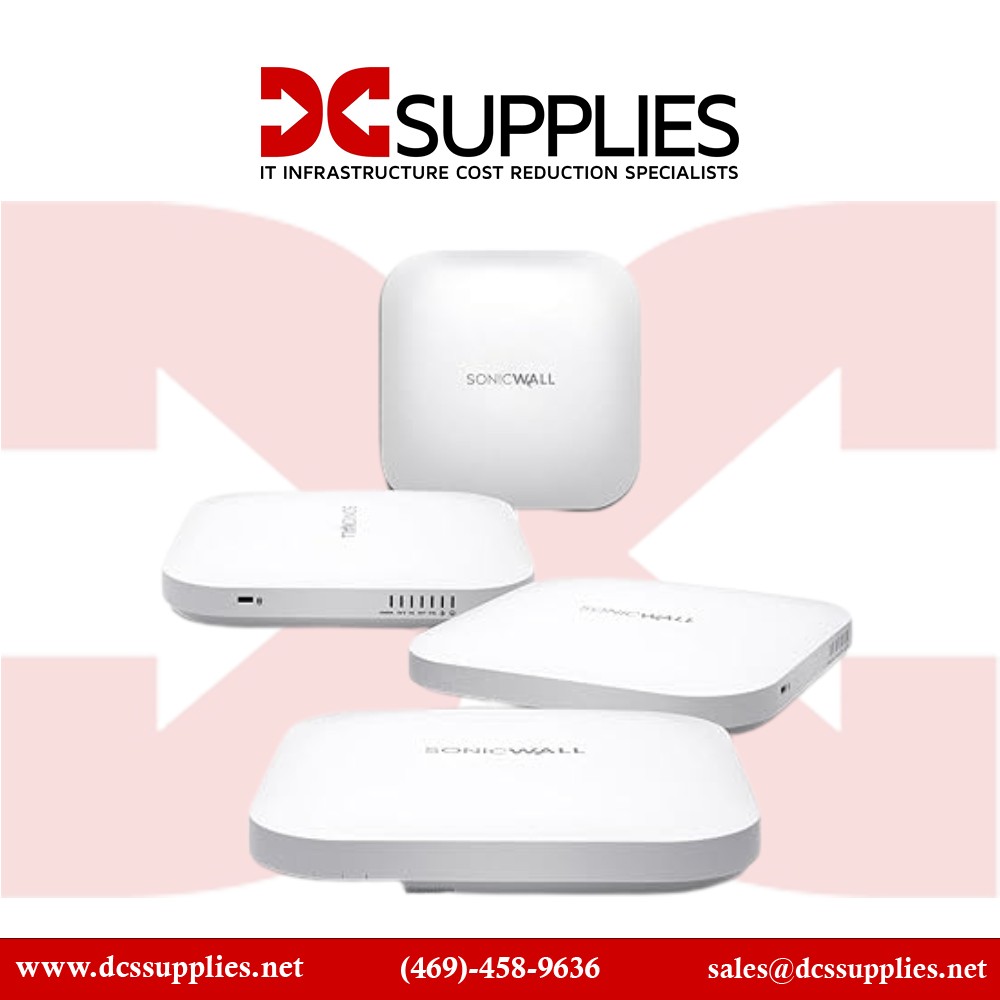

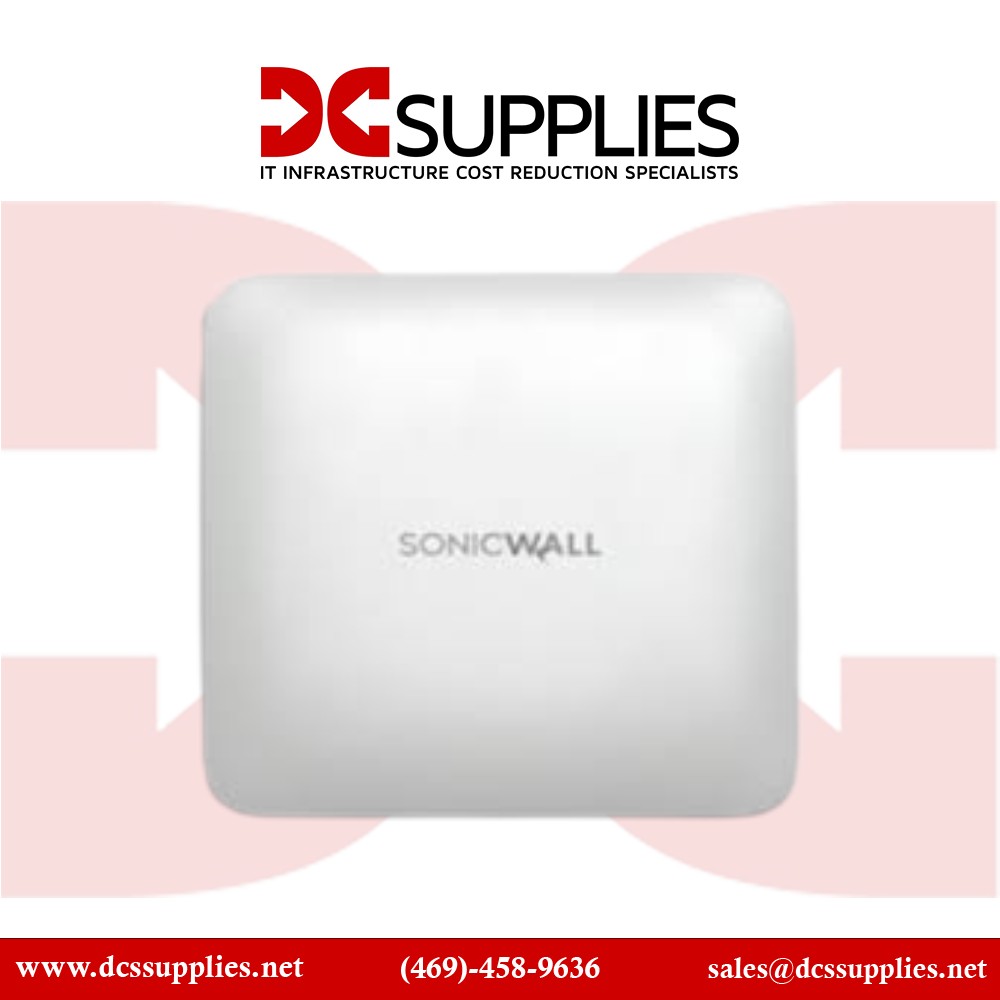

SonicWall SonicWave 432e (03-SSC-0346) - Dual-Band Wi-Fi 6 Indoor Access Point
Overview
The SonicWall SonicWave 432e, SKU 03-SSC-0346, is an indoor Wi-Fi 6 (802.11ax) access point designed for office, classroom, and conference room environments. It delivers dual-band coverage on 2.4 GHz and 5 GHz with 2×2:2 MU-MIMO, allowing multiple devices to connect simultaneously with stable performance.It features a 1 GbE PoE+ port, enabling flexible deployment without a separate power source. Managed via SonicWall Secure Cloud Wi-Fi, it supports zero-touch provisioning, centralized monitoring, and reporting for multiple APs.Ideal for medium-density indoor spaces, the 432e secures wireless access for employees, guest devices, and IoT endpoints, supporting WPA3 encryption and wireless intrusion prevention. Its low-profile ceiling or wall-mount design ensures unobtrusive installation in professional environments.
Key Features
Wi-Fi 6 (802.11ax) × efficient dual-band connectivity with high capacity.
MU-MIMO 2×2:2 × simultaneous support for multiple clients.
1 GbE PoE+ port × simplifies installation without extra power cabling.
Cloud-managed × Secure Cloud Wi-Fi for centralized provisioning and monitoring.
Indoor ceiling/wall mountable × flexible placement for offices or classrooms.
Advanced wireless security × WPA3, rogue AP detection, wireless intrusion prevention.
Technical Specifications
| Specification | Detail |
|---|
| Brand | SonicWall |
| Part Number | 03-SSC-0346 |
| Product Type | Indoor Wi-Fi 6 Access Point |
| Wireless Standard | 802.11ax (Wi-Fi 6) |
| Frequency Bands | 2.4 GHz / 5 GHz |
| MU-MIMO | 2×2:2 |
| Ethernet Port | 1 GbE RJ-45 with PoE+ |
| Power | PoE+ (802.3at), ~12 W typical |
| Antennas | Internal dual-band antennas |
| Max Clients Supported | ~64 clients per AP |
| Security | WPA3, WPA2, Rogue AP detection, Wireless IPS |
| Management | SonicWall Secure Cloud Wi-Fi |
| Form Factor | Ceiling or wall mount |
| Operating Temperature | 0-40 °C |
| Dimensions (W×D×H) | ~160×160×32 mm |
| Weight | ~0.45 kg |
