Detailed Specifications

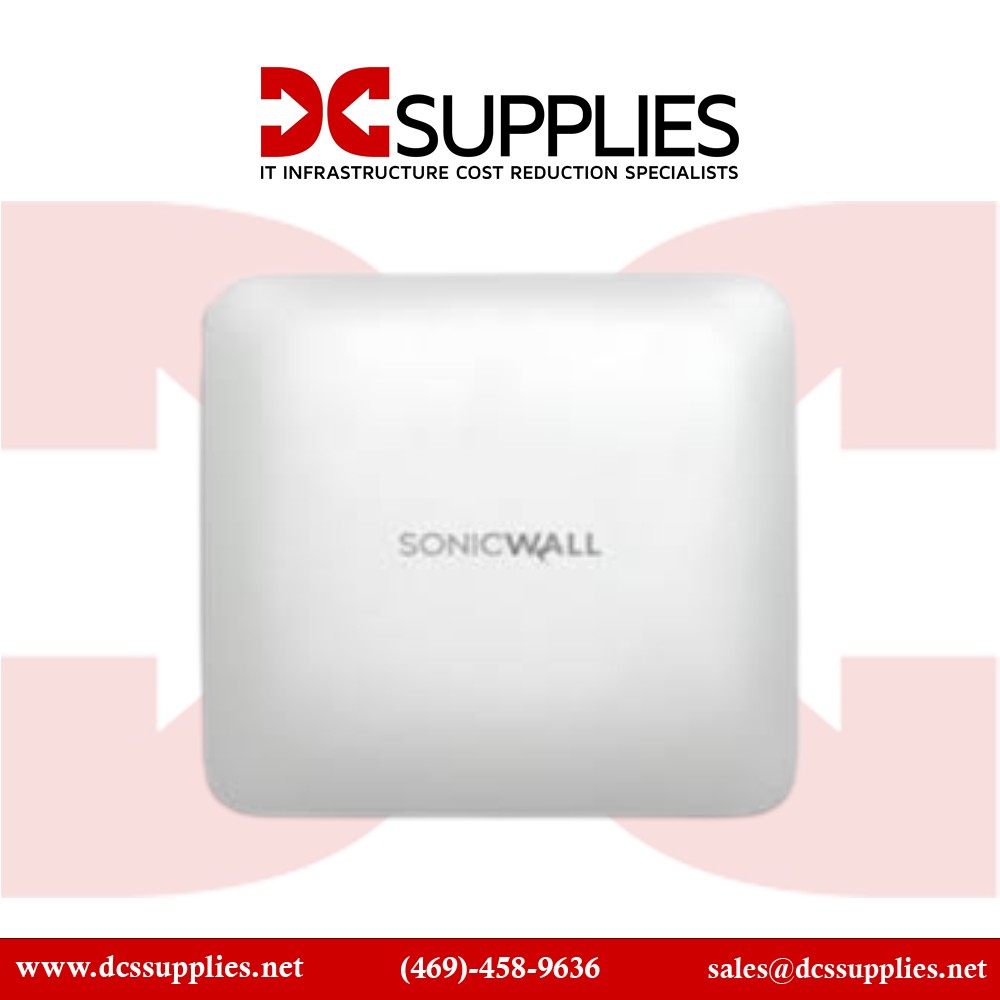

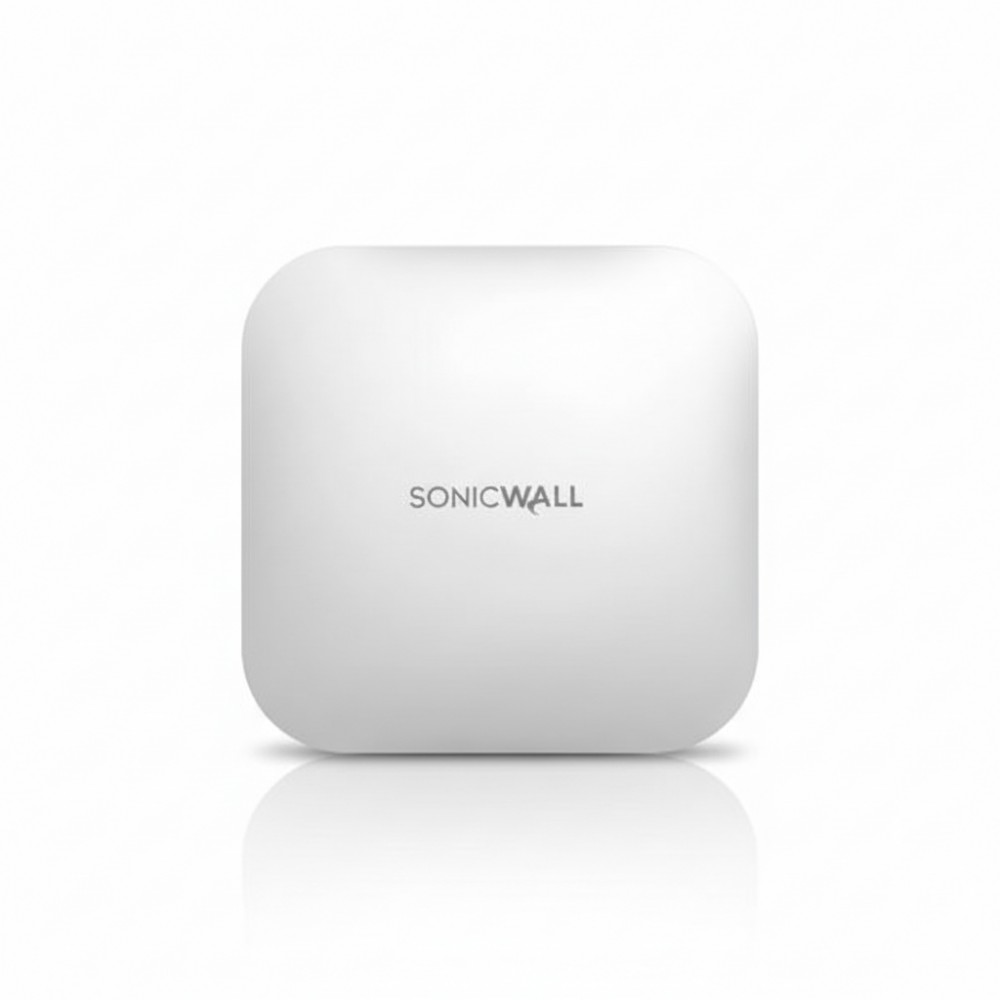

SonicWall SonicWave 641 (03-SSC-0303) - Dual-Band Wi-Fi 6 Indoor Access Point + 3-Yr Cloud License
Overview
The SonicWall SonicWave 641, SKU 03-SSC-0303, is an enterprise-grade Wi-Fi 6 (802.11ax) access point built for indoor deployments like offices, schools, or conference rooms. It offers dual-band coverage (2.4 GHz + 5 GHz) and supports 8 internal antennas, delivering strong signal and high-capacity multi-user MIMO performance.The AP is powered via PoE+ (802.3at) and includes a 2.5 GbE RJ-45 port, so wired backhaul won't bottleneck wireless speeds. It also has Bluetooth 5, which enables asset tracking, location services, or BLE device connectivity. Management is done via SonicWall's Secure Cloud Wi-Fi, providing centralized visibility, real-time monitoring, and simplified provisioning (zero-touch via SonicExpress).Running 23 W, the device is designed for enterprise reliability, supporting advanced wireless security like WPA3, rogue AP detection, and wireless intrusion detection/prevention. Its ceiling-mount design (or wall/shelf) makes it flexible for different deployment scenarios.
Key Features
Wi-Fi 6 (802.11ax) × better efficiency, capacity, and performance for modern devices.
Dual-band radios × supports both legacy and high-speed clients.
2.5 GbE uplink + PoE+ × ensures high-speed wired connectivity and flexible installation.
Bluetooth 5 × supports BLE-based services or devices.
8 internal antennas × strong coverage and MU-MIMO support.
Cloud-managed × 3-year Secure Cloud Wi-Fi license for centralized management.
Advanced security × WPA3, wireless intrusion detection/prevention, and zero-touch provisioning.
Technical Specifications
| Specification | Detail |
|---|
| Brand | SonicWall |
| Part Number | 03-SSC-0303 |
| Product Type | Indoor Wi-Fi 6 Access Point |
| Wireless Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Frequency Bands | 2.4 GHz / 5 GHz |
| Antennas | 8 × Internal |
| Ethernet Uplink | 1 × 2.5 GbE RJ-45 |
| Power | PoE+ (802.3at) |
| Bluetooth | Bluetooth 5 |
| Power Consumption | ~23 W |
| Management | Cloud-managed via SonicWall Wireless Network Manager / SonicExpress |
| Security Encryption | WPA3, AES, 802.1X (RADIUS) |
| Form Factor | Ceiling Mountable (also wall / shelf) |
| Operating Temperature | 0-40 °C (typical for indoor AP) |
