Detailed Specifications

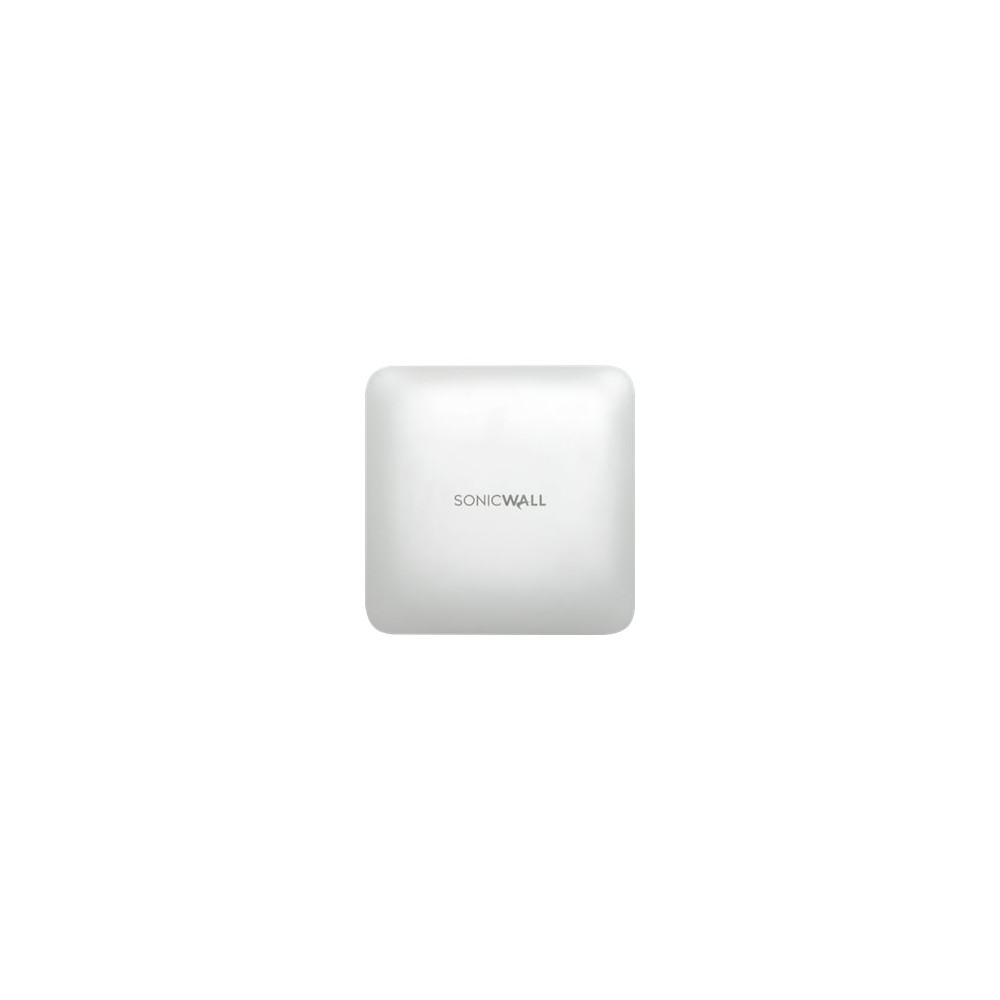

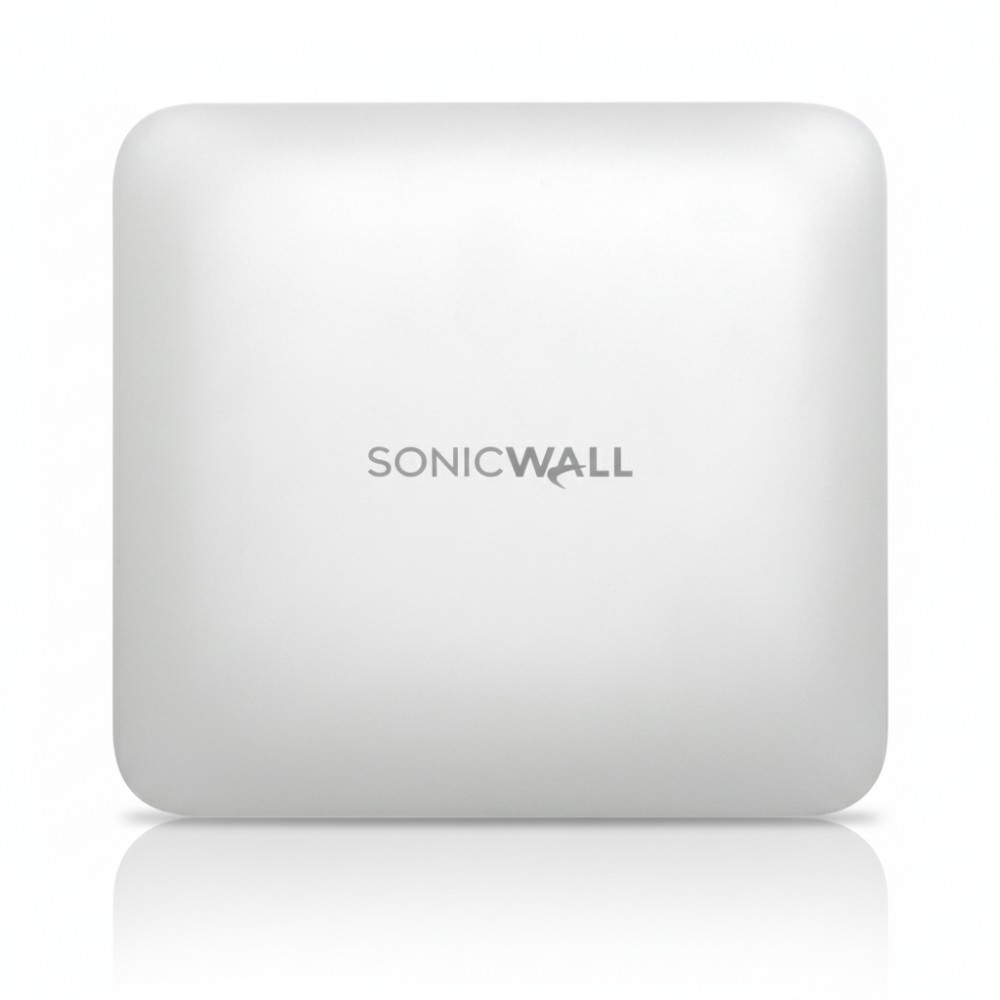

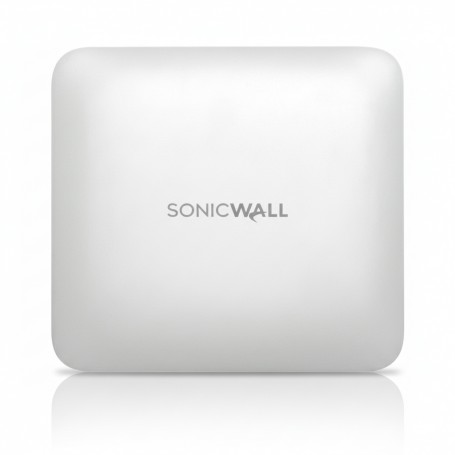

SonicWall SonicWave 641 (03-SSC-0302) - Dual-Band Wi-Fi 6 Indoor Access Point + Cloud Management
Overview
The SonicWall SonicWave 641, SKU 03-SSC-0302, is an enterprise-grade, indoor access point built for high-density environments. Designed for ceilings or wall mounting, it delivers Wi-Fi 6 performance across both 2.4 GHz and 5 GHz bands. It includes Bluetooth 5, enabling location services or Bluetooth-client connectivity.This AP supports Power over Ethernet-Plus (PoE+), simplifying installation and minimizing cabling. Its wired uplink is a 2.5 GbE RJ-45 port, ensuring that the wired backbone can carry the full capacity of the Wi-Fi clients. Management is integrated with SonicWall's cloud or on-prem system, giving centralized control, zero-touch provisioning, and seamless integration with firewall policies.The SonicWave 641 includes 8 internal antennas for strong MU-MIMO performance and beamforming, delivering reliable coverage and high throughput. It is ideal for deployments in offices, classrooms, conference halls, or any environment that requires robust, secure, and high-speed wireless access.
Key Features
Wi-Fi 6 (802.11ax) × improved capacity, efficiency, and performance.
Dual-band (2.4 GHz + 5 GHz) × supports legacy and high-speed clients.
2.5 GbE uplink × avoids bottleneck on wired backhaul.
PoE+ powered × simplifies installation and cabling.
Bluetooth 5 × for location-based services or BLE client support.
8 internal antennas × strong coverage and MU-MIMO support.
Technical Specifications
| Specification | Detail |
|---|
| Brand | SonicWall |
| Part Number | 03-SSC-0302 |
| Product Type | Indoor Wi-Fi 6 Access Point |
| Wireless Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Radio Bands | 2.4 GHz and 5 GHz |
| Antenna Configuration | 8 × Internal |
| MIMO | MU-MIMO (multi-user) |
| Ethernet Uplink | 1 × 2.5 GbE RJ-45 |
| PoE Support | Yes, 802.3at (PoE+) |
| Bluetooth | Bluetooth 5 |
| Power Consumption | ~23 W |
| Management | Cloud-managed (via SonicWall) |
| Security / Encryption | WPA3, AES, 802.1X options |
| Form Factor | Ceiling / Wall mount |
| Operating Temperature | 0-40 °C |
| Weight | ~850 g |
