SonicWall 03-SSC-0329 SonicWave 681 Wireless Access Point WiFi6 View larger

SonicWall 03-SSC-0329 SonicWave 681 Wireless Access Point WiFi6

New

Wi-Fi 6 access point with 8x8 MU-MIMO"

×




  • New

Detailed Specifications

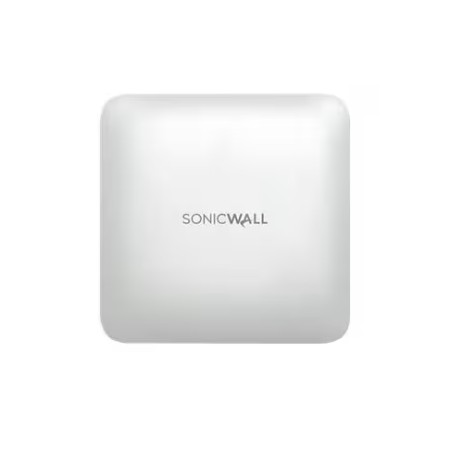

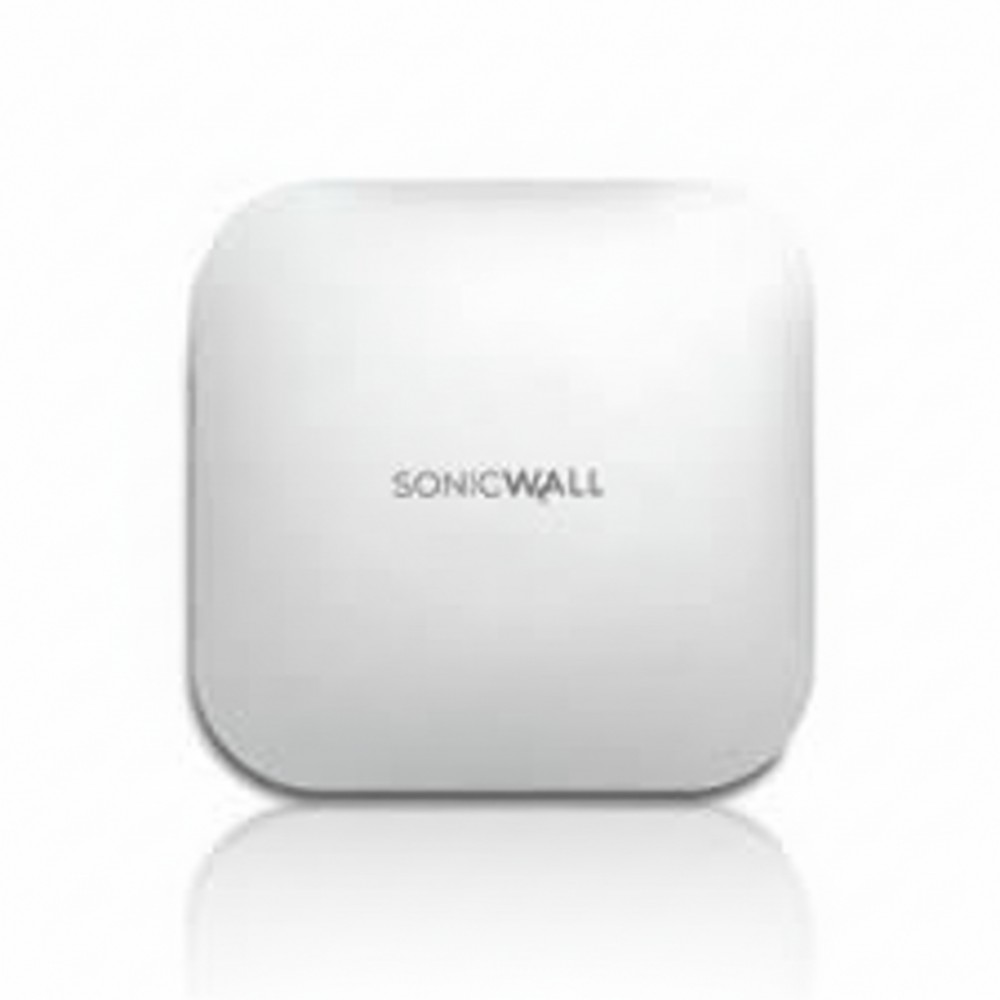

SonicWall 03-SSC-0329 SonicWave 681 Wi-Fi 6 8x8 MU-MIMO AP

Overview

The SonicWall 03-SSC-0329 is a high-performance SonicWave 681 Wireless Access Point, engineered to deliver cutting-edge Wi-Fi 6 (802.11ax) connectivity for demanding enterprise and large-scale environments. This indoor, ceiling-mountable device is designed to overcome the challenges of high-density, multi-device networks by providing superior throughput and reduced latency. It primarily addresses the need for robust, secure, and scalable wireless access in modern organizations, ensuring seamless connectivity and protecting sensitive data. Leveraging advanced 8x8 Multi-User Multiple-Input, Multiple-Output (MU-MIMO) technology across its 5 GHz band, alongside 4x4 MU-MIMO on the 2.4 GHz band, the SonicWave 681 optimizes concurrent data streams to numerous devices, significantly enhancing overall network efficiency. With theoretical aggregate data rates up to 4.8 Gbps (on the 5 GHz band), it ensures rapid and reliable wireless performance for bandwidth-intensive applications. Furthermore, the access point integrates comprehensive security features, including advanced WPA3 encryption and deep packet inspection, safeguarding wireless communications from evolving threats. Ideal for deployment in corporate offices, educational institutions, and other large venues, this access point facilitates a secure and high-speed wireless infrastructure. It supports centralized management through SonicWall's Secure Cloud Wi-Fi Management platform, simplifying configuration, monitoring, and troubleshooting. The device's zero-touch deployment capability streamlines installation, allowing for quick and efficient scalability across an IT environment while maintaining consistent security policies and operational oversight.

Key Features

  • High-performance Wi-Fi 6 (802.11ax) dual-band.
  • 8x8 MU-MIMO with 12 internal antennas for dense networks.
  • Secure Cloud WiFi Management with 3-year support included.
  • Advanced WPA3 encryption and deep packet inspection.
  • Zero-touch deployment for streamlined installation.

Specifications

SpecificationValue
Brand SonicWall
Part Number 03-SSC-0329
Product Type Wireless Access Point
Series SonicWave 681
Wireless Standard IEEE 802.11ax (Wi-Fi 6)
Frequency Band 2.4 GHz, 5 GHz
MIMO Technology MU-MIMO 8x8 (5GHz), MU-MIMO 4x4 (2.4GHz)
Data Rate (Max) 4.8 Gbps (5GHz)
Antennas 12 x Internal
Network Ports 1 x 5Gbase-T RJ-45 (PoE)
USB Ports 1 x USB 3.0, 1 x Micro-USB Console
PoE Support 802.3bt Type 3 PoE++
Security Protocols WPA3, WPA2, AES, SSL
Management Cloud-managed (SonicWall WNM)
Form Factor Indoor, Ceiling Mountable
Dimensions (H x W x D) 1.5 inches x 8.4 inches x 8.4 inches
Weight 2.43 lbs
Power Consumption 34 W
Operating Temperature 32°F to 104°F (0°C to 40°C)
TAA Compliant Yes
