Detailed Specifications

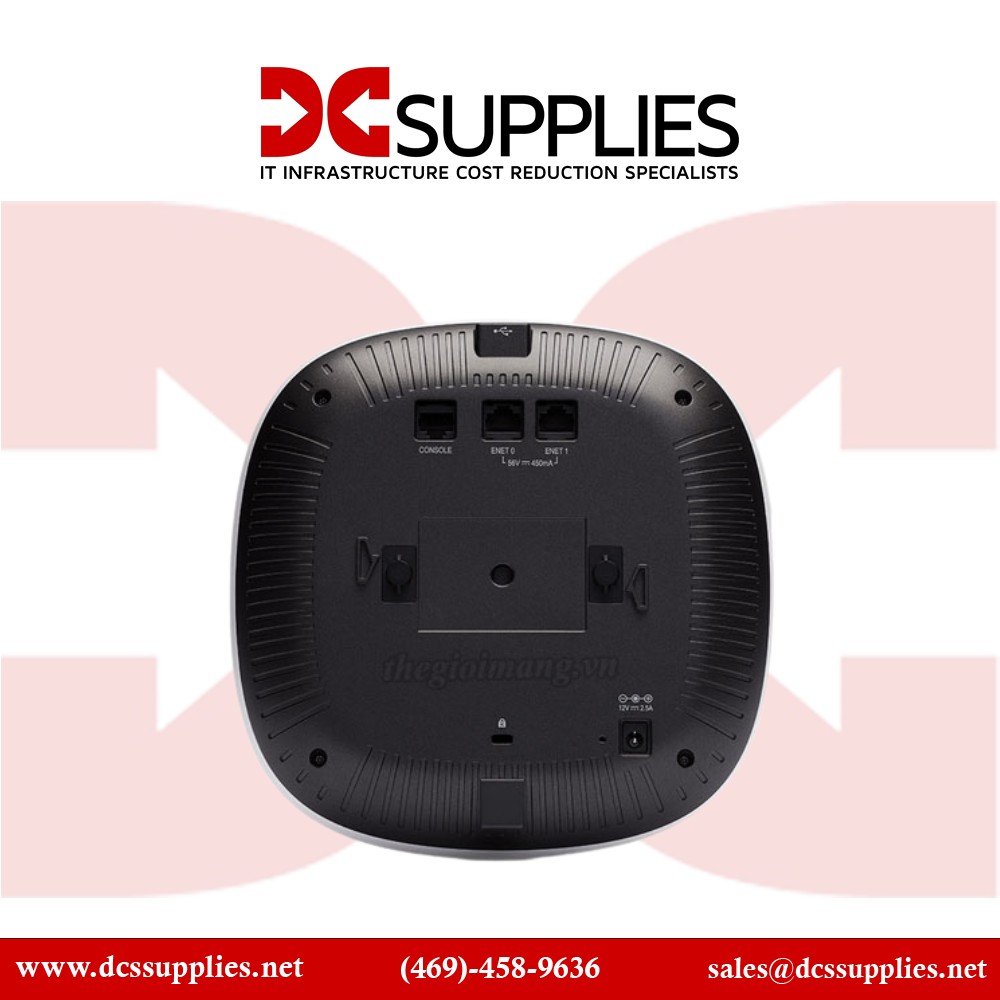

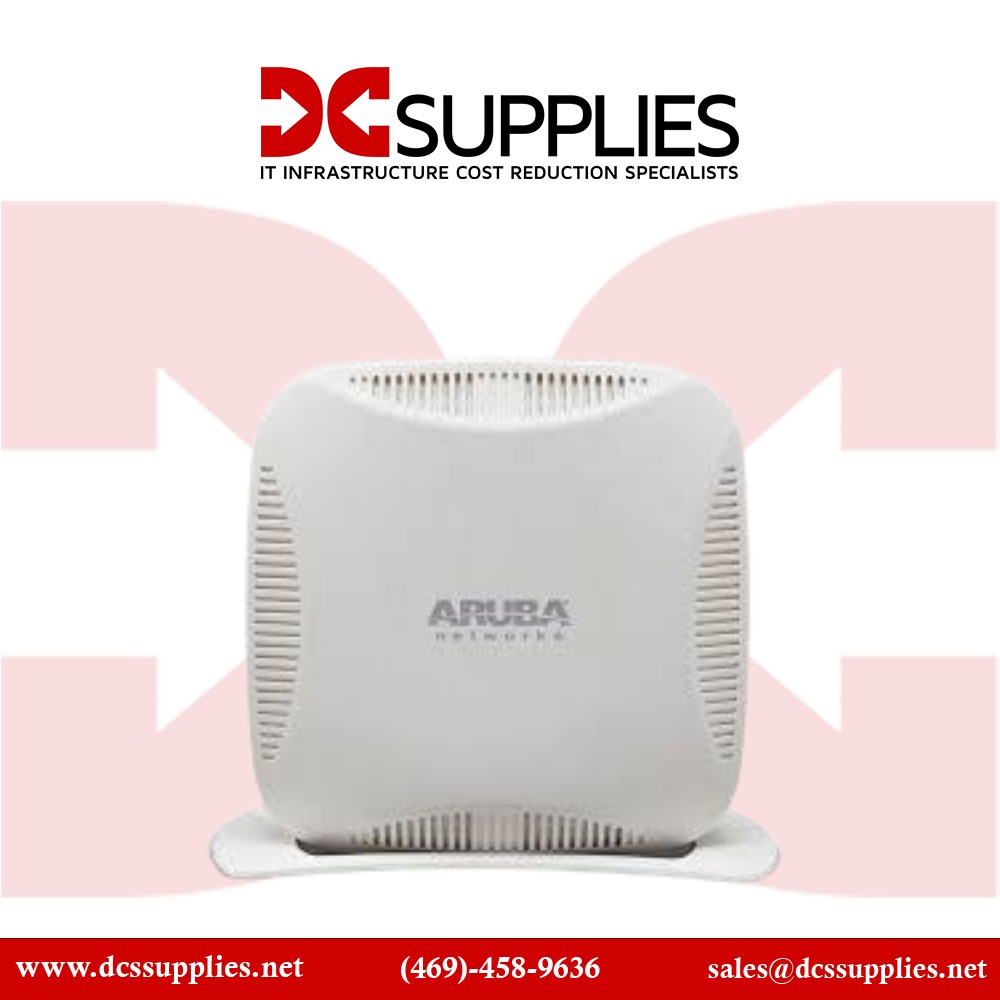

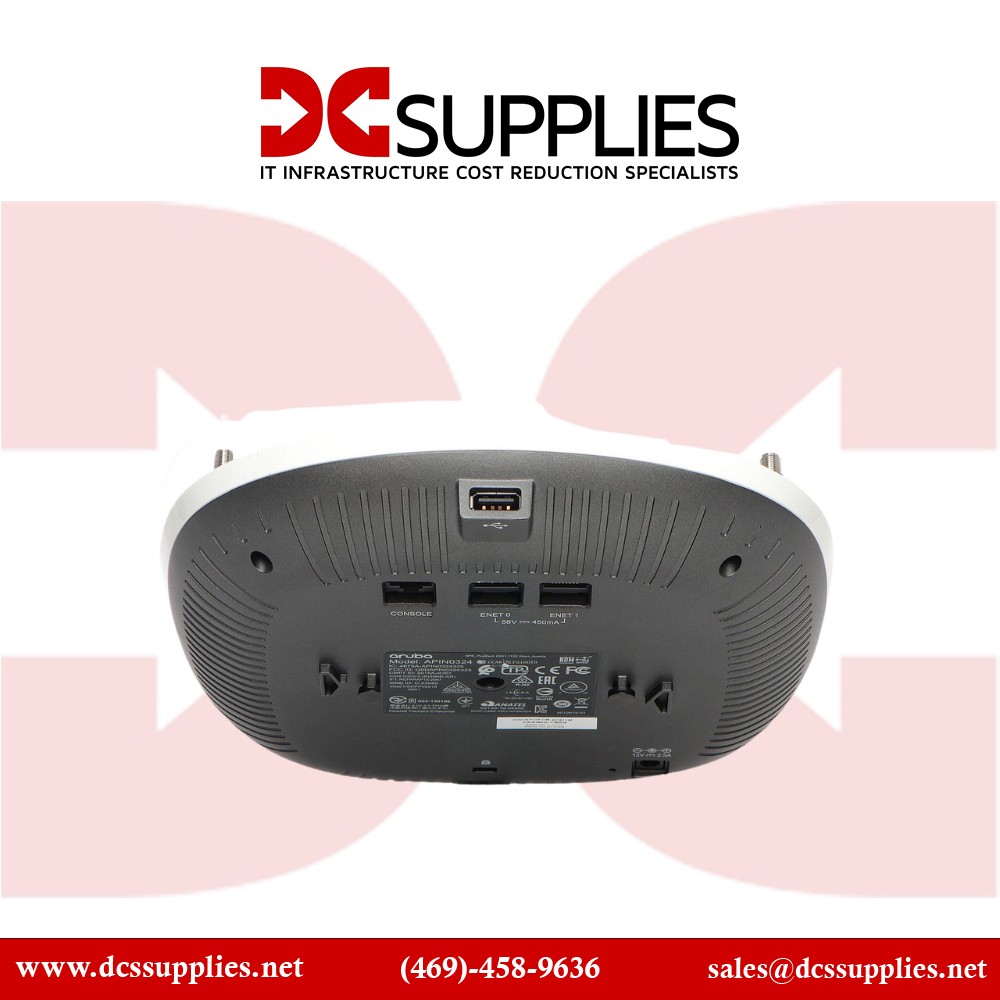

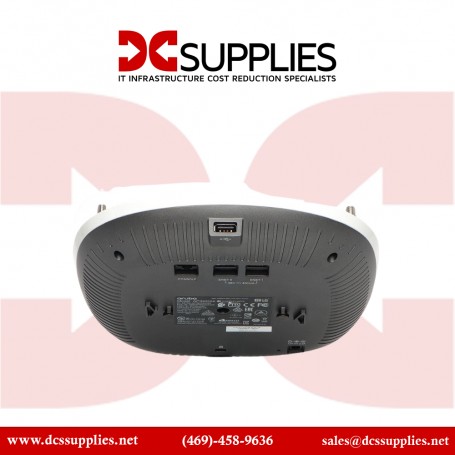

HPE JW285A Aruba RAP-155P 802.11n Dual-Radio Access Point
Overview
The HPE JW285A (Aruba RAP-155P) is a dual-radio indoor access point that supports 802.11a/b/g/n for enterprise or branch-office Wi-Fi deployments. It is powered via PoE and provides Gigabit Ethernet uplink, making it easy to mount without additional power cabling. The AP is designed for managed or controllerless use, enabling simplified deployment while supporting standard enterprise security and performance features.
Key Features
Dual-band Wi-Fi: 2.4 GHz and 5 GHz radios
Up to 450 Mb/s data rate on 5 GHz with 3×3 MIMO
4 × 10/100/1000Base-T ports + 1 × uplink port
PoE power support simplifies installation
Three internal antennas for reliable coverage
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE / Aruba |
| Part Number | JW285A |
| Product Type | Dual-Radio 802.11n Wireless Access Point |
| Wireless Standards | IEEE 802.11a/b/g/n |
| Radio Configuration | 2×2 (2.4 GHz), 3×3 (5 GHz) |
| Maximum Data Rate | Up to ~450 Mb/s (5 GHz) |
| Ethernet Ports | 4 × 1 Gb PoE, 1 × uplink |
| Power | PoE (802.3af/at) |
| Antennas | 3 × internal omni antennas |
| Operating Temperature | 0 °C to 40 °C |
| Mounting | Wall or ceiling mount compatible |
