HPE JW184A Aruba AP-324 Wireless Access Point

JW184A

New

In Stock

Dual-band MU-MIMO access point with BLE Beacon and ClientMatch.

×




$0.00

Detailed Specifications

HPE JW184A

Aruba AP-324 Wireless Access Point

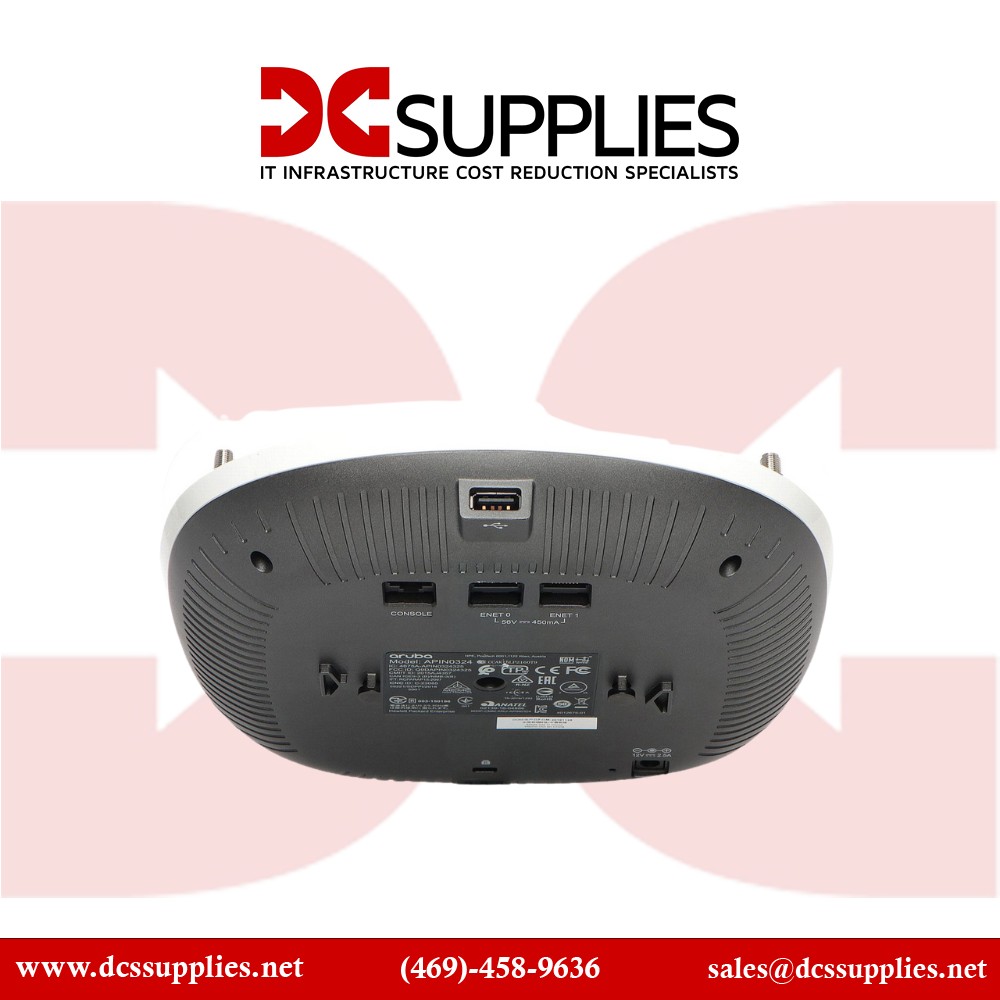

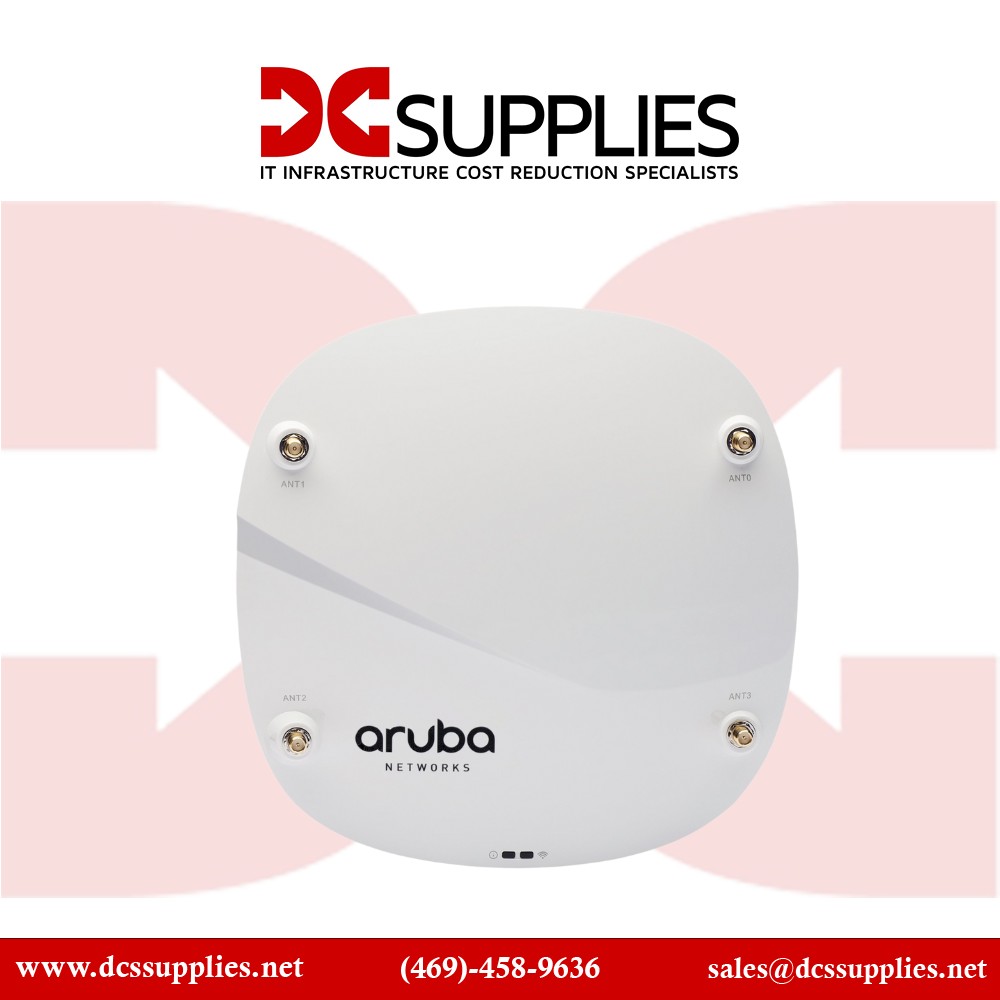

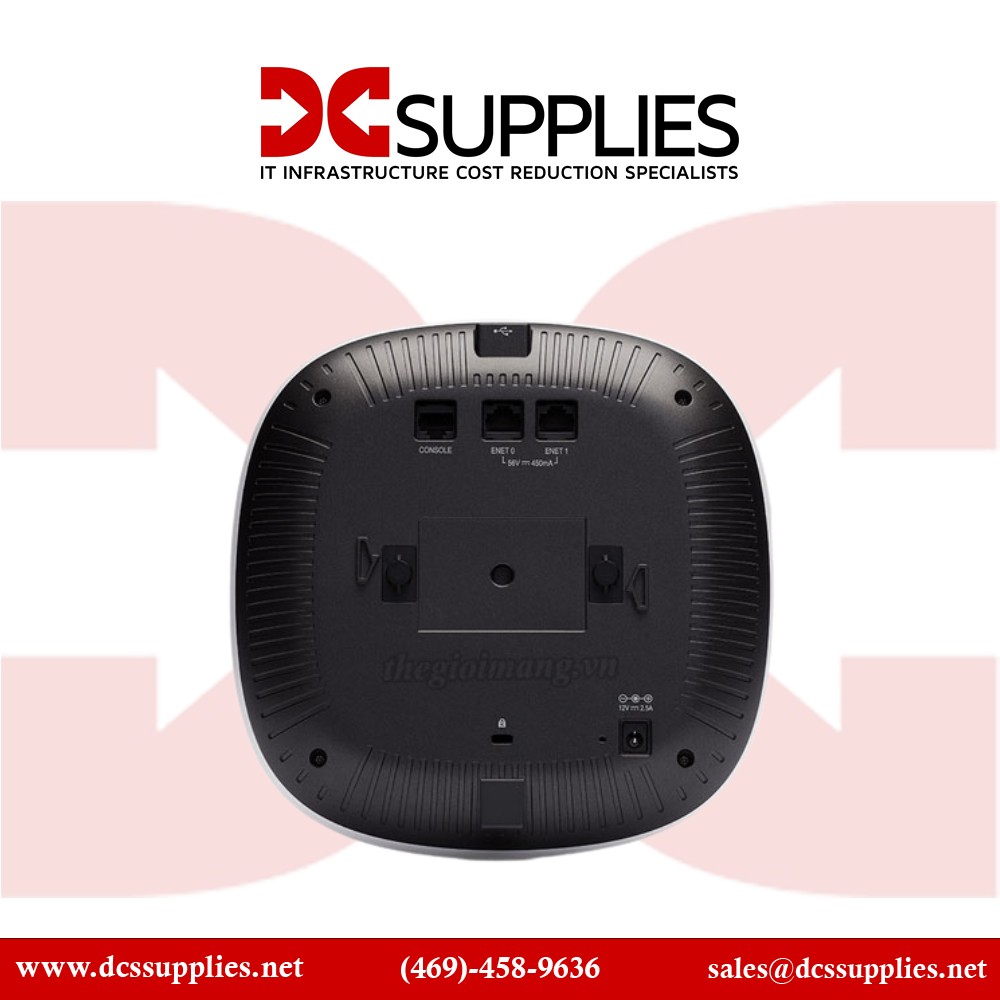

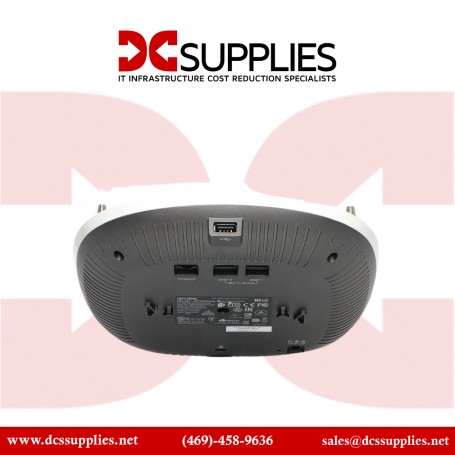

The HPE JW184A Aruba AP-324 is a high-performance indoor wireless access point featuring dual-band 802.11ac Wave 2technology and 4×4:4 MU-MIMO capability. Delivering speeds up to 1.733 Gbps in the 5 GHz band and 800 Mbps in the 2.4 GHz band, this AP is optimized for high-density environments such as offices, campuses, and classrooms. Equipped with Aruba ClientMatch and BLE Aruba Beacon technology, it dynamically steers clients for optimal throughput while enabling location-based services. Its compact, ceiling-mountable design, PoE support, Wireless Access Point and rich security options make it a versatile choice for enterprise Wi-Fi deployments

Features

The AP-324 brings robust enterprise-grade Wi-Fi with support for wave-2 features such as MU-MIMO—allowing multiple clients to receive data simultaneously via three spatial streams, significantly boosting network efficiency . Aruba enhanced ClientMatch technology ensures intelligent client steering, grouping MU-MIMO-capable devices together Wireless Access Point  to maximize throughput With integrated BLE beacon radios, the AP-324 extends beyond connectivity—facilitating indoor wayfinding, asset tracking, and proximity notification services . Deployments can operate in multiple modes, including controller-managed, Instant (controllerless), remote AP for branch use, air monitor, and spectrum analyzer—offering flexibility across diverse network architectures

Advanced Options

Even though the AP-324 has reached End of Sale (October 31, 2021), Wireless Access Point it remains supported through October 31, 2026—giving organizations time for planned transition Engineered for high-density enterprise environments, the AP-324 delivers exceptional wireless performance powered by MU-MIMO and advanced client management. Its ability to transmit simultaneously to multiple devices reduces airtime congestion and ensures smooth user experiences even during peak loads

Product Key Features

  • Dual-band 802.11ac Wave 2 with 4×4:4 MU-MIMO

  • Up to 1.733 Gbps on 5 GHz, 800 Mbps on 2.4 GHz

  • Aruba ClientMatch and BLE Aruba Beacon technology

  • Multiple deployment modes: controller-managed, Instant, RAP, AM, spectrum analyzer

  • Supports external diplexed RP-SMA antennas

  • Dual 1 GbE RJ-45 ports (often for redundancy or link aggregation)

  • PoE powered (802.3af/at) or optional 12 V DC external supply

  • Secure and seamless roaming experience in dense environments

  • Ideal for enterprise, education, and high-traffic indoor venues


Reliability & Performance

The integrated BLE beacon technology adds location-aware services without requiring additional hardware, enhancing deployment value Though discontinued in 2021, support continues until late 2026—making it a practical option for now with planned future migrations . The AP supports both PoE and DC power, allowing flexible installation options, and with two Ethernet ports it offers resilience or uplink flexibility

Key Features :

  • Dual-band 802.11ac Wave 2, 4×4:4 MU-MIMO

  • Up to 2.5 Gbps aggregated data rate

  • ClientMatch steering, BLE beacon support

  • Multi-mode operation: Instant, controller-managed, mesh, monitor

  • External RP-SMA antenna connectors

  • Dual Gigabit Ethernet ports

  • PoE (802.3af/at) or 12 V DC power options

  • High-density environment optimized

  • Discontinued but supported through Oct 2026

SpecificationDetails
Model Number JW184A / AP-324
Wireless Standard IEEE 802.11a/b/g/n/ac Wave-2 Wireless Access Point
Maximum Data Rate 5 GHz: 1,733 Mbps; 2.4 GHz: 800 Mbps (≈ 2.5 Gbps aggregate)
MIMO 4×4:4 MU-MIMO
Antennas 4 × diplexed external RP-SMA connectors
Ethernet Ports 2 × 1 GbE RJ-45
Power Options PoE (802.3af/at) or 12 V DC external
BLE Beacon Integrated
Deployment Modes Controller, Instant, RAP, Air Monitor, Spectrum Analyzer
Mounting Options Ceiling or wall mount (T-bar optional)
Security & Features ClientMatch, Aruba Central, WPA2/3, spectrum scan
End of Sale Date October 31, 2021
End of Support Date October 31, 2026
