Detailed Specifications

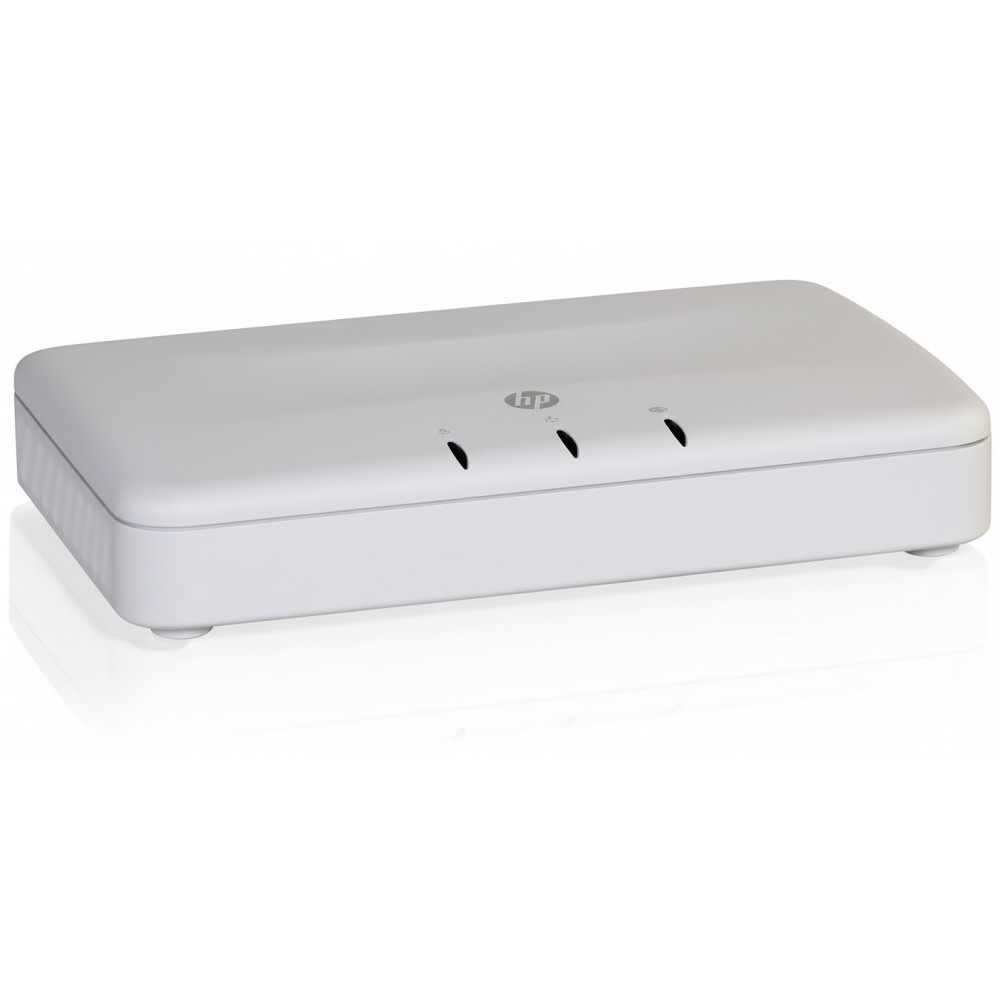

HPE J9798A OfficeConnect M220,802.11n Access Point
Overview
The HPE J9798A is an indoor wireless access point aimed at smaller enterprise or branch office deployments that require dual-band Wi-Fi coverage without the expense and complexity of a full enterprise controller-based solution. It supports both the 2.4 GHz and 5 GHz bands, providing up to 300 Mbps throughput using 2×2 MIMO 802.11n technology, making it suitable for typical office users, laptops and mobile devices. The unit features a single auto-sensing 10/100/1000Base-T Ethernet port supporting PoE 802.3af, enabling flexible mounting and deployment in wiring closets, ceiling mounts or wall installs. The device is designed for plug-and-play use or managed as part of a cluster of up to 16 M220 access points, which simplifies configuration and maintenance in multi-AP deployments. It fits easily within small-to-mid-sized office spaces, branch-office networks and enterprise edge zones where balanced cost, performance and management ease are required.
Key Features
Dual-band 2.4 GHz/5 GHz 802.11n support (2×2:2)
Up to 300 Mbps aggregate wireless data rate
Single gigabit RJ-45 port with auto-MDI/MDIX and PoE support
Supports clustering of up to 16 APs for unified management
Indoor form-factor optimized for wall or ceiling mounting
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | J9798A |
| Product Type | OfficeConnect M220,802.11n Access Point |
| Wireless Standards | IEEE 802.11a/b/g/n |
| Radio Frequencies | 2.4 GHz and 5 GHz |
| MIMO Configuration | 2×2:2 |
| Maximum Wireless Throughput | Up to 300 Mbps |
| Ethernet Port | 1 × RJ-45 autosensing 10/100/1000Base-T |
| PoE Support | IEEE 802.3af |
| Antennas | 2 internal omni-directional |
| Operating Temperature | 0 °C to 40 °C |
| Power Consumption | Approx. 5.3 W |
| Dimensions (W × D × H) | 7.6 in × 5 in × 1.5 in (19.4 × 12.7 × 3.8 cm) |
| Weight | Approx. 0.8 lbs (0.34 kg) |
| Mounting Options | Wall or ceiling mount indoor |
