Detailed Specifications

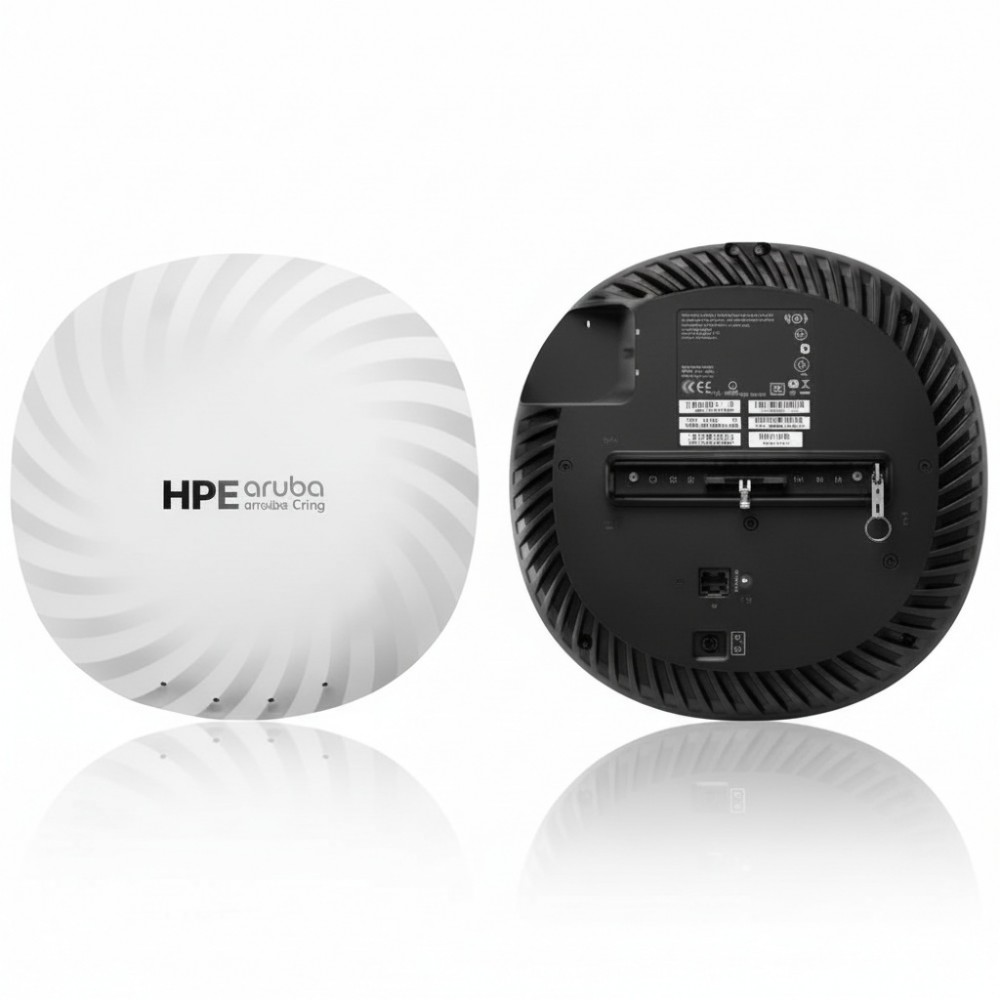

HPE S1G89-61001 Aruba AP-755 Tri-Radio 4×4 Wi-Fi 7 Access Point
Overview
The HPE S1G89-61001 is an indoor access point designed for enterprise and campus deployments where high device density and future-proof wireless connectivity are required. It supports Wi-Fi 7 with a tri-radio configuration (2.4 GHz, 5 GHz, 6 GHz) and internal antennas, offering enhanced throughput and coverage for mobile devices, guest access, and IoT networks. The unit integrates dual 2.5 GbE ports for uplink flexibility and supports PoE for efficient deployment. It fits into ceiling or wall applications in offices, classrooms, or large-venue environments and can be centrally managed via Aruba-based management platforms.
Key Features
Tri-radio support (2.4 GHz, 5 GHz, 6 GHz) with 4×4 MIMO
Wi-Fi 7 (802.11be) capable access point for high throughput
Internal antennas for clean, ceiling-mounted deployment
Dual multi-gig Ethernet uplinks and PoE support
IoT radio integrated (Bluetooth/Zigbee) for location and sensor applications
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE / Aruba |
| Part Number | S1G89-61001 |
| Product Type | Indoor Tri-Radio Wi-Fi 7 Access Point |
| Wi-Fi Standard | IEEE 802.11be (Wi-Fi 7) |
| Radio Bands | 2.4 GHz / 5 GHz / 6 GHz |
| MIMO Configuration | 4×4 per radio |
| Maximum Aggregate Rate | Up to ~18.7 Gb/s (vendor listed for AP-755) |
| Ethernet Uplink Ports | Dual ports (multi-gig) |
| Power Options | PoE PD (802.3af/at/bt) |
| Antennas | Internal |
| Deployment Mount Options | Ceiling tile or wall |
| Operating Temperature | 0°C to +50°C |
| Weight | Approximate by listing (~2 lb) |
| Security Features | WPA3, Enhanced Open, 802.1X |
| Management Integration | Aruba Central, Cloud or/and On-Premises |
