Detailed Specifications

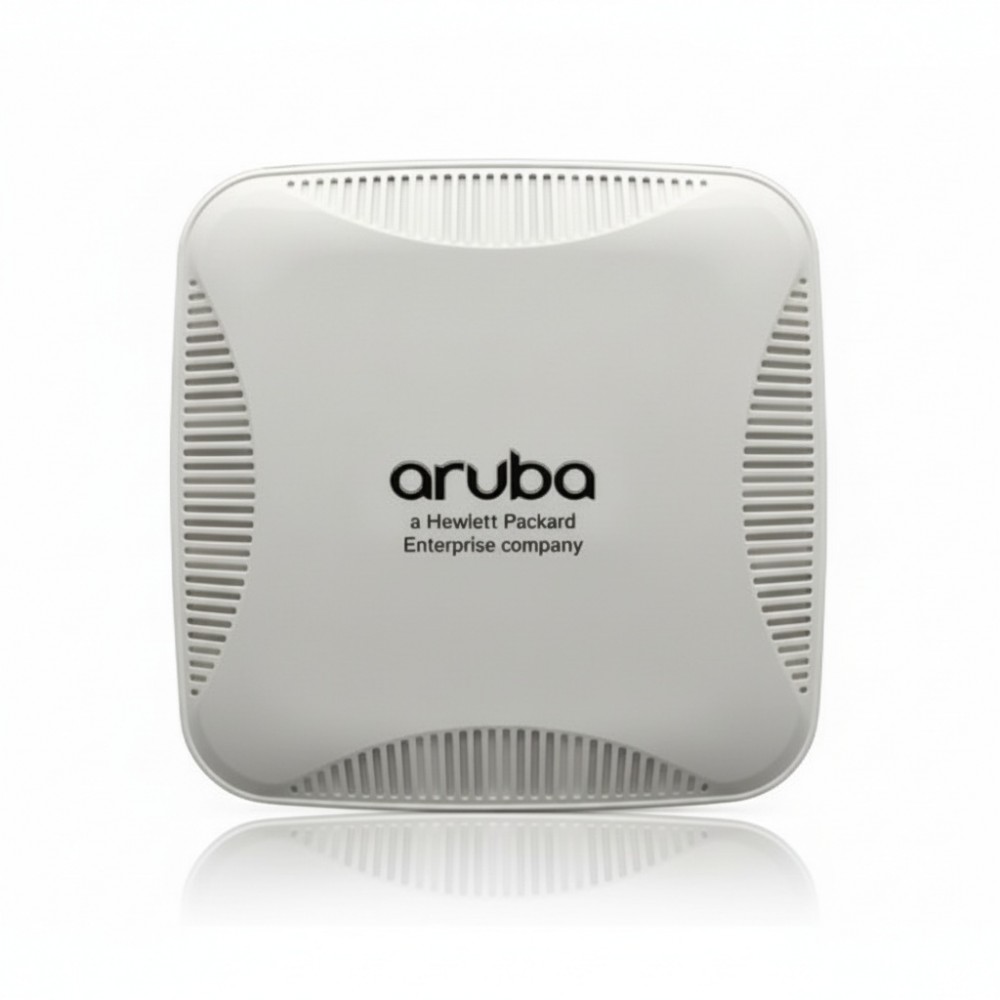

HPE JW190A Aruba Instant IAP-103 Access Point
Overview
The HPE JW190A (Aruba Instant IAP-103) is an indoor wireless access point designed for medium-density deployments such as offices, classrooms or retail venues. It supports dual-band operation (2.4 GHz and 5 GHz) using a 2×2:MIMO configuration on each band, offering a combined wireless throughput of up to approximately 300 Mb/s. The unit features integrated antennas and a Gigabit Ethernet uplink with Power over Ethernet support, enabling flexible ceiling or wall mounting and simple deployment without DC adapters. It can operate in Instant mode where a standalone unit acts as a controller or in managed mode under Aruba Mobility Controllers for unified policy enforcement. The JW190A is ideal for business or campus environments where high-reliability WiFi connectivity and seamless roaming are required across moderate client densities.
Key Features
Dual-radio support across 2.4 GHz and 5 GHz bands
2×2:2 MIMO architecture delivering up to ~300 Mb/s throughput
Gigabit Ethernet uplink with PoE support
Ceiling or wall mountable form-factor for indoor enterprise deployment
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | JW190A |
| Product Type | Indoor Dual-Radio 802.11n Access Point |
| Wireless Standard | IEEE 802.11n |
| Maximum Wireless Rate | Up to ~300 Mb/s |
| MIMO Configuration | 2×2:2 |
| Frequency Bands | 2.4 GHz and 5 GHz dual-band |
| Uplink Interface | 1 × Gigabit Ethernet (RJ-45) |
| Power Support | Power over Ethernet (PoE) |
| Antenna Type | Integrated internal dual-band antennas |
| Mounting Options | Ceiling tile or wall mount |
| Dimensions (W × D × H) | Approx. 5.9″ × 5.9″ × 1.6″ |
| Weight | Approx. 0.66 lb (~0.30 kg) |
| Supported Modes | Stand-alone Instant mode or controller-managed mode |
| Client Density Suitability | Medium-density deployments |
| Compliance | Enterprise indoor WiFi connectivity standards |
