Detailed Specifications

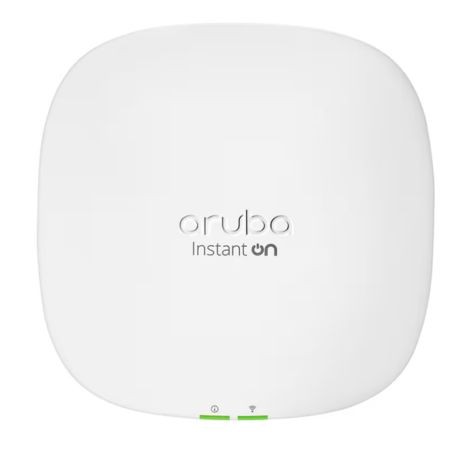

HPE R9B27A-61001 Aruba Instant On AP25 Indoor Access Point
Overview
The HPE R9B27A-61001 is a high-capacity indoor access point designed for device-dense enterprise spaces such as conference rooms, retail environments or collaborative workspaces. It supports the Wi-Fi 6 (802.11ax) standard with a 4×4:4 MIMO antenna configuration, enabling maximum wireless data rates of around 4.8 Gb/s in the 5 GHz band and approximately 574 Mb/s in the 2.4 GHz band, for an aggregate throughput near 5.3 Gb/s. The unit includes a 2.5 GbE network uplink with PoE support and wall or ceiling mount capabilities, allowing flexible placement and high performance without requiring fibre links. With built-in cloud or mobile-app management and full backward compatibility with earlier Wi-Fi standards, it is well suited for enterprises looking to future-proof their wireless infrastructure, deliver high client density, and simplify network administration.
Key Features
4×4:4 Wi-Fi 6 dual-radio architecture for high client throughput
Maximum wireless data rate ~4.8 Gb/s (5 GHz) + ~574 Mb/s (2.4 GHz)
Single 2.5 GbE RJ-45 uplink with PoE support simplifies deployment
Ceiling or wall-mountable form-factor with no extra licensing required
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | R9B27A-61001 |
| Product Type | Indoor Wi-Fi 6 Access Point |
| Wireless Standard | IEEE 802.11ax (Wi-Fi 6) |
| MIMO Configuration | 4×4:4 (four spatial streams) |
| Maximum 5 GHz Data Rate | Up to ~4.8 Gb/s |
| Maximum 2.4 GHz Data Rate | Up to ~574 Mb/s |
| Uplink Interface | 1 × RJ-45 (2.5 GbE) with PoE |
| Mounting Options | Ceiling tile or wall mount |
| Dimensions (W × D × H) | Approx. 8.8″ × 8.7″ × 2.6″ |
| Weight | Approx. 2.22 lb (~1.01 kg) |
| Integrated Antennas | Yes, dual-band omnidirectional |
| Management | Cloud or mobile-app managed |
| Client Recommendation | High-density environments (100+ devices) |
| Backward Compatibility | 802.11a/b/g/n/ac |
