Detailed Specifications

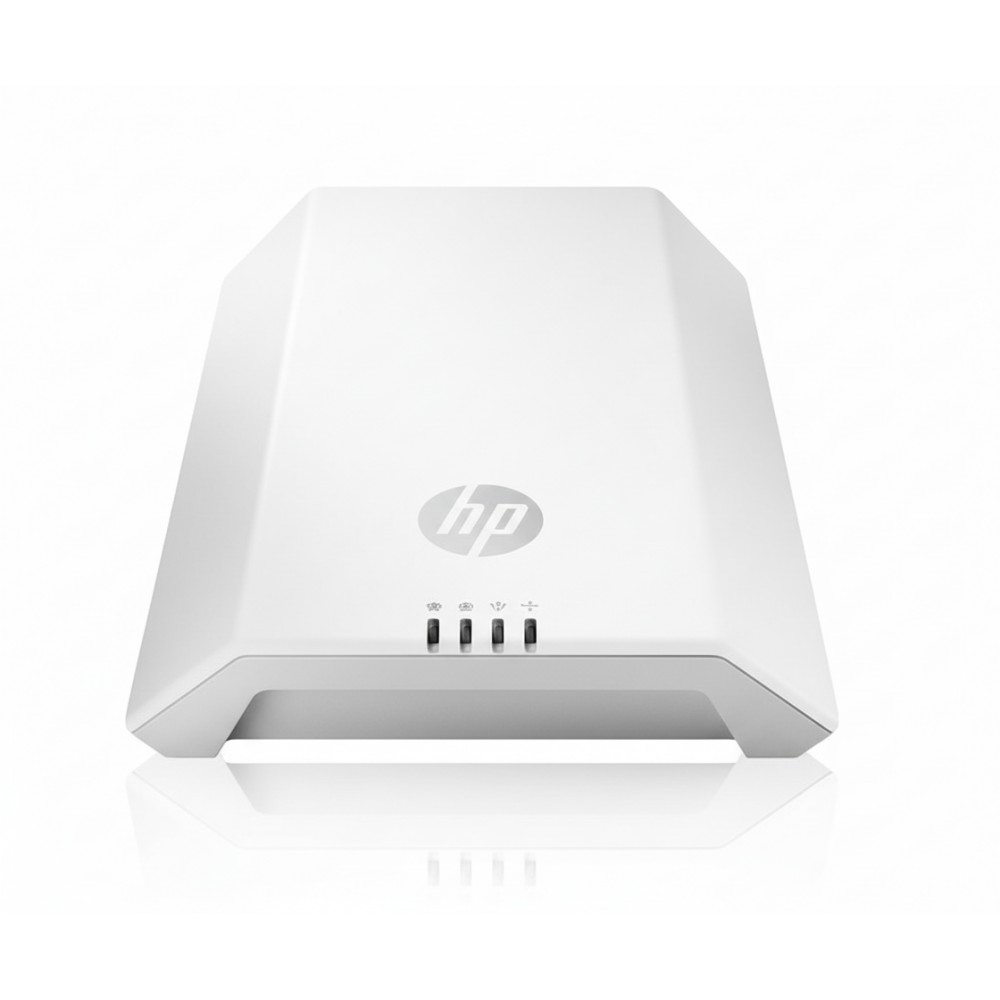

HPE JL062A - M330 Dual Radio 802.11ac Access Point
Overview :
The HPE JL062A is a dual-radio 802.11ac access point designed for medium-density enterprise environments, where IT teams need to support increasing mobile and video traffic without a dedicated wireless controller. It delivers up to 1.3 Gbps on the 5 GHz band alongside simultaneous 2.4 GHz service, enabling better client performance and capacity. Suitable for deployment in offices, branch sites or campus zones, it mounts on ceilings or walls and supports clustering of up to 16 units for simplified configuration. Management is via built-in web UI or SNMP, and it integrates into existing networks powered via standard 802.3af PoE or an included adapter.
Key Features :
Supports up to 1300 Mbps data rate on 5 GHz band
Six internal MIMO omni-directional antennas for wide coverage
1 × Gigabit Ethernet port with Auto-MDIX support
PoE (802.3af) or 12 V external adapter powering option
Cluster mode allows unified config for up to 16 access points
Specifications :
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | JL062A |
| Product Type | Dual-Radio 802.11ac Indoor Access Point |
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac |
| Max Wireless Rate | 1.3 Gbps (5 GHz) |
| Antenna Qty | 6 internal omni-directional antennas |
| Ethernet Port | 1 × 10/100/1000 BASE-T autosensing |
| Power Supply | 100-240 VAC adapter (12 V) or PoE 802.3af |
| Max Power Consumption | 13 W (adapter) / 12.95 W (PoE) |
| Dimensions (WxDxH) | 6.13 × 1.58 × 8.22 in |
| Weight | 2.71 lbs |
| Operating Temp Range | 0 °C to 40 °C |
| Humidity Range | 15% to 80% non-condensing |
| Channel Bands | 2.4 GHz (1-13), 5 GHz (channels per region) |
| Management Protocols | Web UI, CLI (SSH/Telnet), SNMP v1/2c |
