Detailed Specifications

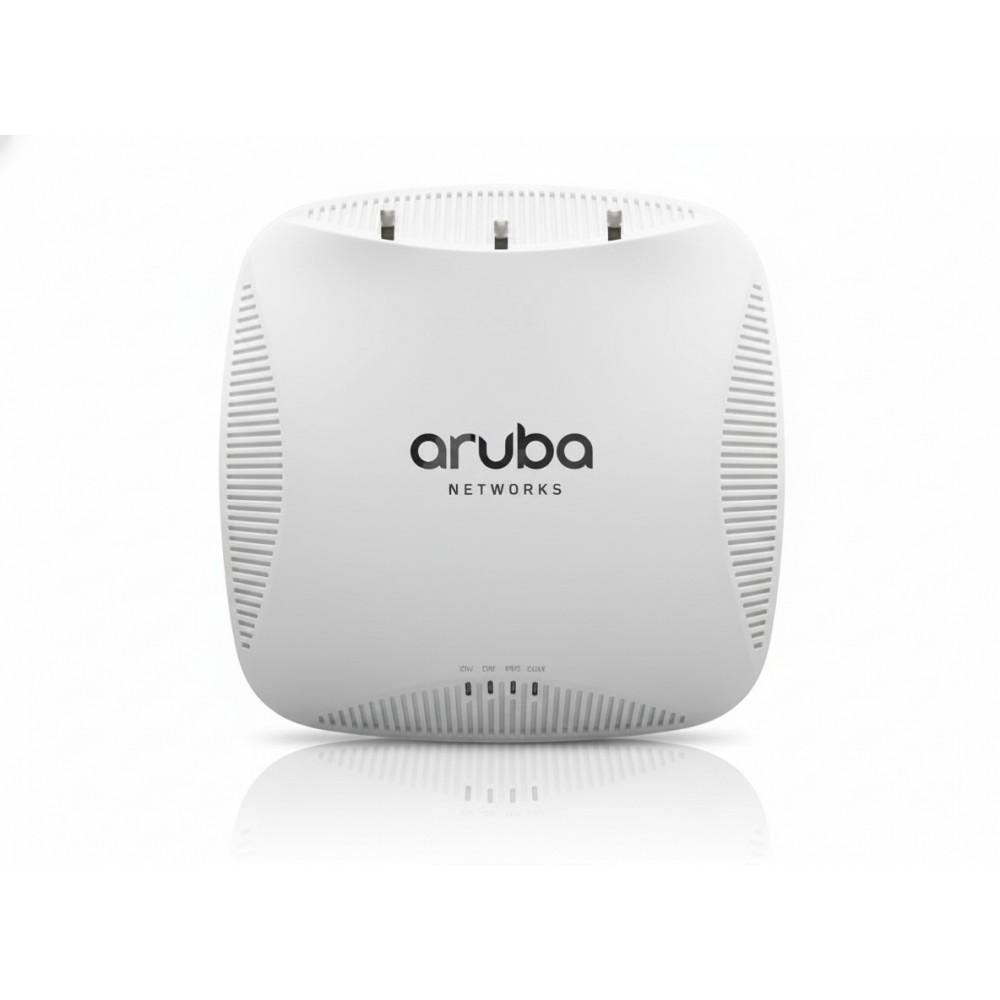

HPE JW242A Aruba Instant IAP-225 Access Point
Overview
The HPE JW242A is an indoor wireless access point designed for enterprise-grade networks requiring reliable, high-density Wi-Fi coverage. It features dual radios (2.4 GHz and 5 GHz) operating in a 3×3:3 MIMO configuration, supporting up to 1.9 Gb/s combined throughput. The unit runs in controller-less Instant mode or integrates seamlessly with Aruba's centralized management solutions for large-scale deployments. Ideal for offices, schools, retail stores, and branch environments, the IAP-225 supports ceiling or wall mounting and uses 802.3af/at PoE for simplified installation. Enhanced with Aruba ClientMatch and Adaptive Radio Management (ARM), it optimizes connections for high-density client environments while maintaining consistent performance and low latency.
Key Features
Dual-band 2.4 GHz and 5 GHz radios with 3×3:3 MIMO and 1.9 Gb/s throughput
Integrated omni-directional antennas with wall or ceiling mount options
Two Gigabit Ethernet ports, one with PoE power input
Operates in Instant mode or managed via Aruba Mobility Controllers
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | JW242A |
| Product Type | Indoor Dual-Radio Wireless Access Point |
| Wireless Standard | IEEE 802.11a/b/g/n/ac |
| Max Data Rate | 1.9 Gb/s aggregate (5 GHz + 2.4 GHz) |
| MIMO Configuration | 3×3 per radio (3 spatial streams) |
| Radio Bands | 2.4 GHz and 5 GHz dual-band |
| Antennas | Six internal omni-directional antennas |
| Ethernet Ports | 2 × 10/100/1000Base-T |
| Power over Ethernet | 802.3af/at PoE input |
| Dimensions (W × D × H) | 8.0″ × 8.0″ × 2.1″ (203 × 203 × 54 mm) |
| Weight | 1.65 lb (0.75 kg) |
| Operating Temperature Range | 0 °C to 50 °C |
| Power Consumption | 15.5 W maximum |
| Mounting Options | Ceiling or wall mount |
