Detailed Specifications

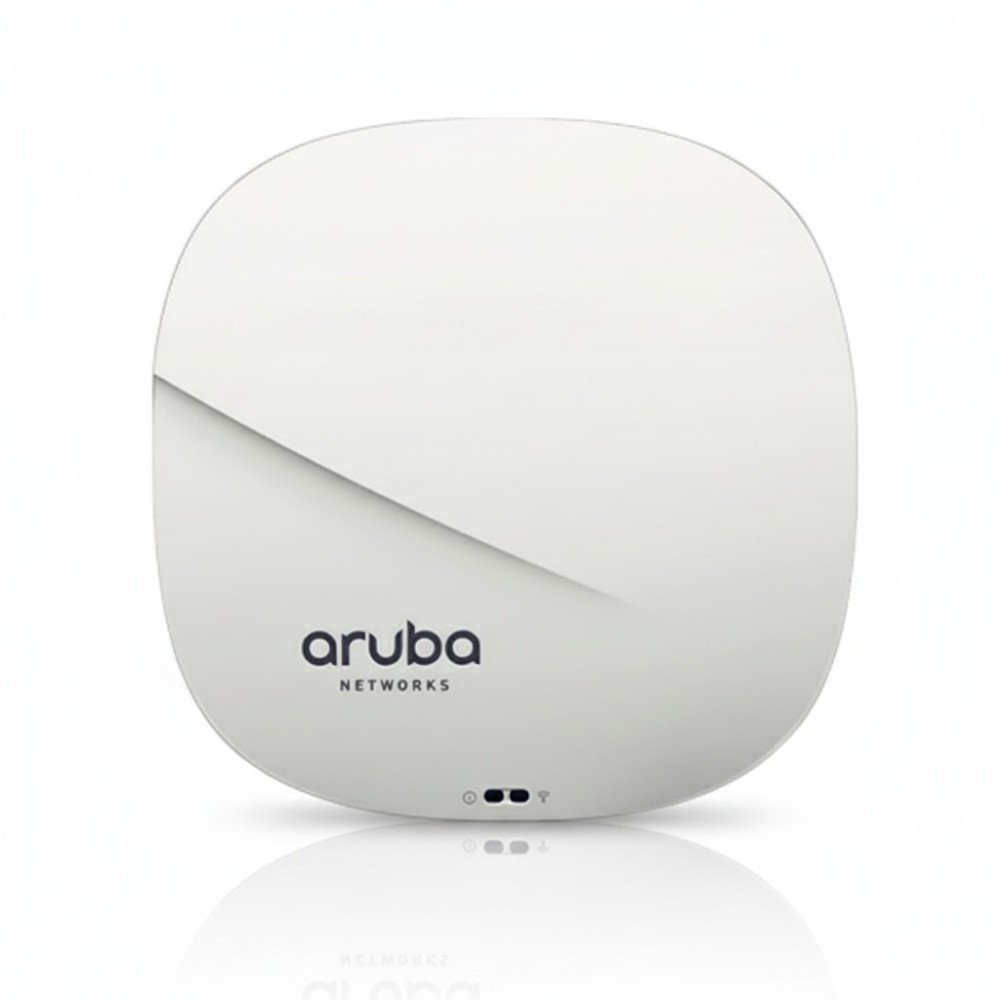

HPE JW170A Aruba AP-215 Access Point
Overview
The HPE JW170A (Aruba AP-215) is an indoor Wi-Fi access point designed for enterprise WLAN deployments in offices, classroom environments or hospitality venues. It supports dual radios×one in the 2.4 GHz band and one in the 5 GHz band×enabling up to 450 Mb/s on 2.4 GHz and up to 1.3 Gb/s on 5 GHz (with 3×3 MIMO and three spatial streams) according to the 802.11ac standard. The device mounts to ceilings or walls and supports Power over Ethernet (PoE), simplifying installation in standard networking racks or drop-tile ceilings. With integrated antennas and a compact form factor, it fits typical access layer roles and integrates into the Aruba wired/wireless management ecosystem for unified deployment and monitoring.
Key Features
Dual-radio architecture (2.4 GHz + 5 GHz) with 3×3:3 MIMO.
Maximum data rate up to 1.3 Gb/s on 5 GHz and 450 Mb/s on 2.4 GHz.
Single Gigabit Ethernet uplink port with PoE support.
Integrated antennas and ceiling/ceiling-tile mount hardware.
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | JW170A |
| Product Type | Indoor Dual-Radio 802.11ac Access Point |
| Wireless Standard | IEEE 802.11a/b/g/n/ac |
| MIMO Configuration | 3×3:3 (three spatial streams) |
| Maximum 2.4GHz Rate | Up to 450 Mb/s |
| Maximum 5GHz Rate | Up to 1.3 Gb/s |
| Ethernet Uplink | 1 × RJ-45 Gigabit BASE-T with PoE |
| Mounting Options | Ceiling tile or wall-mounted bracket |
| Dimensions (W×D×H) | 7.1″ × 7.1″ × 1.8″ (180 mm × 180 mm × 45 mm) |
| Weight | ~1.35 lb (0.61 kg) |
| Operating Temperature Range | 32 °F to 122 °F (0 °C to 50 °C) |
| Antennas | Integrated omnidirectional (dual-band) |
| Power Source | 802.3af PoE or optional external DC injector |
| Client Capacity | Supports enterprise-class client densities |
