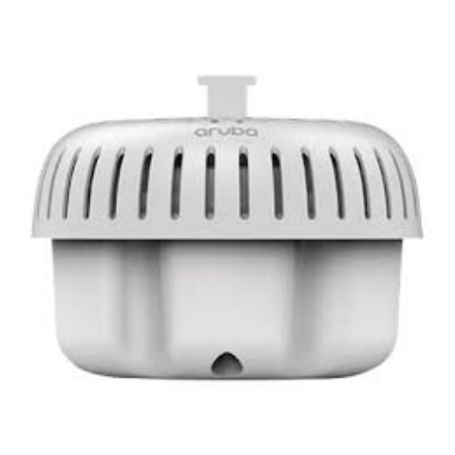

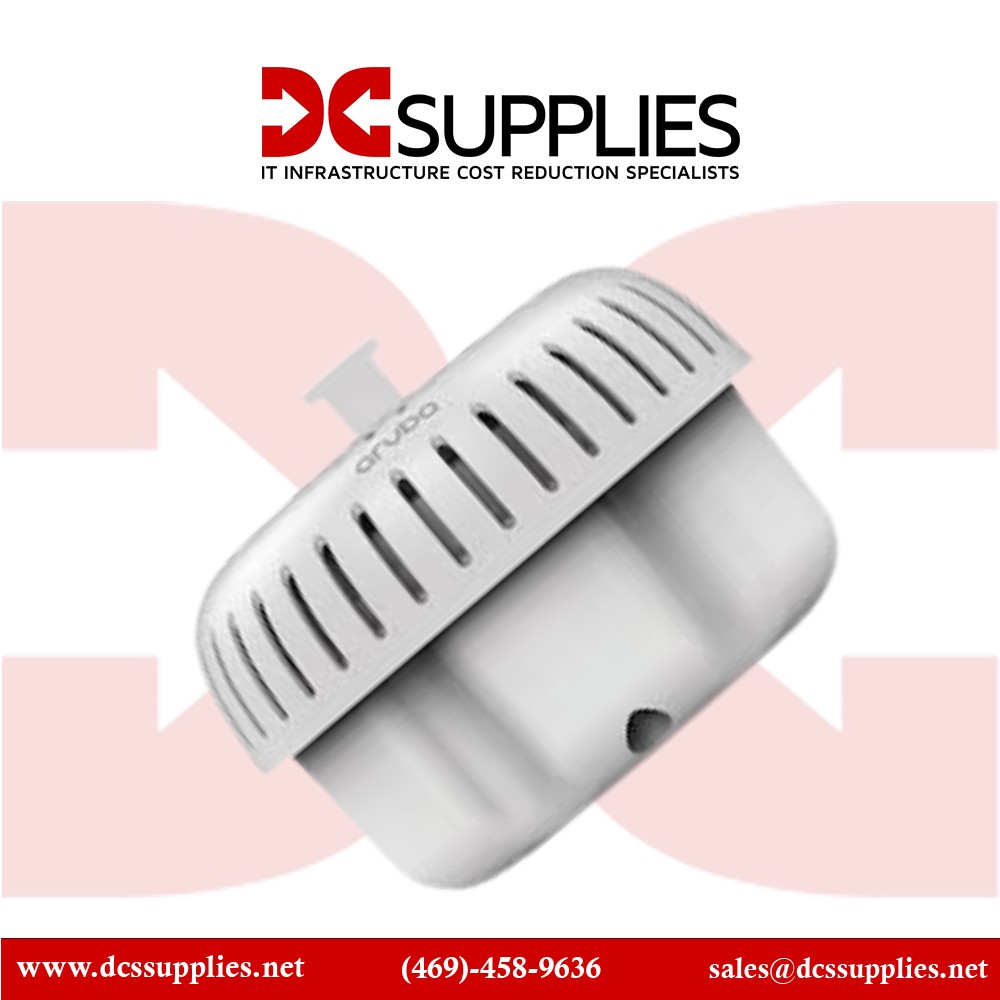

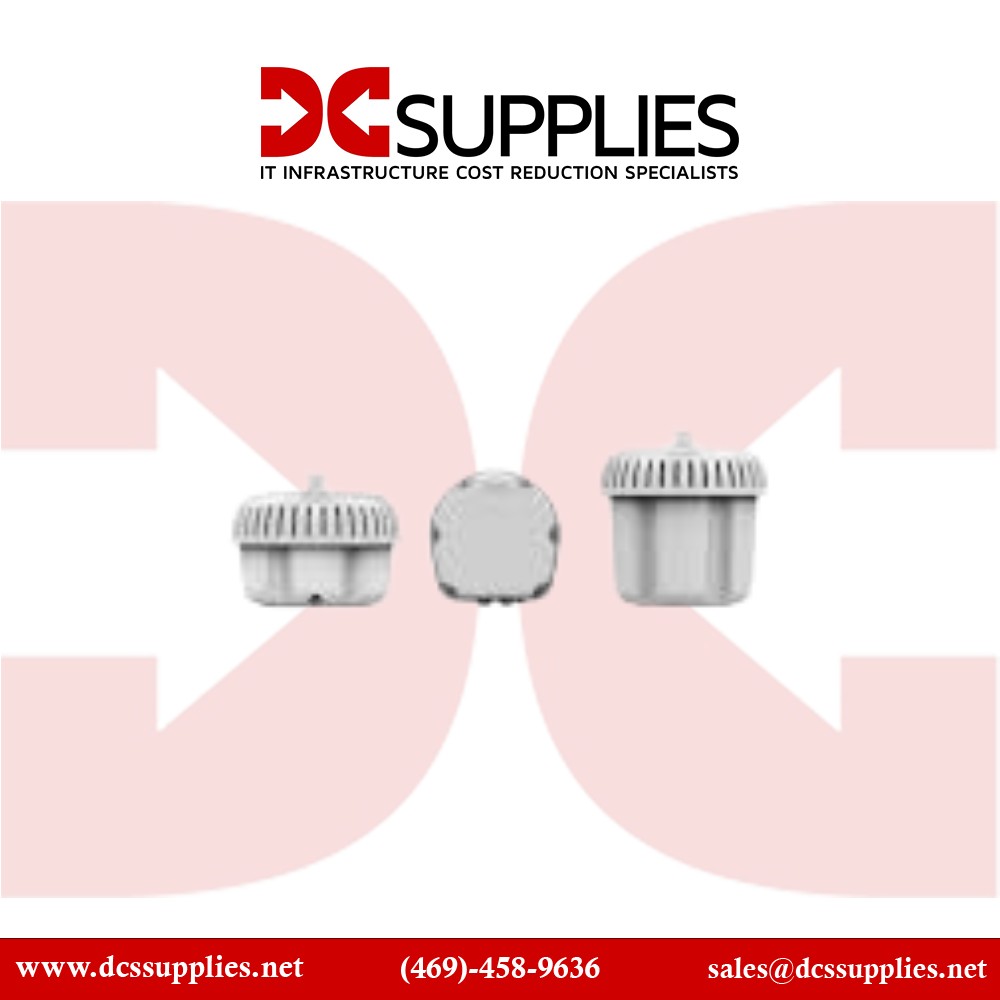

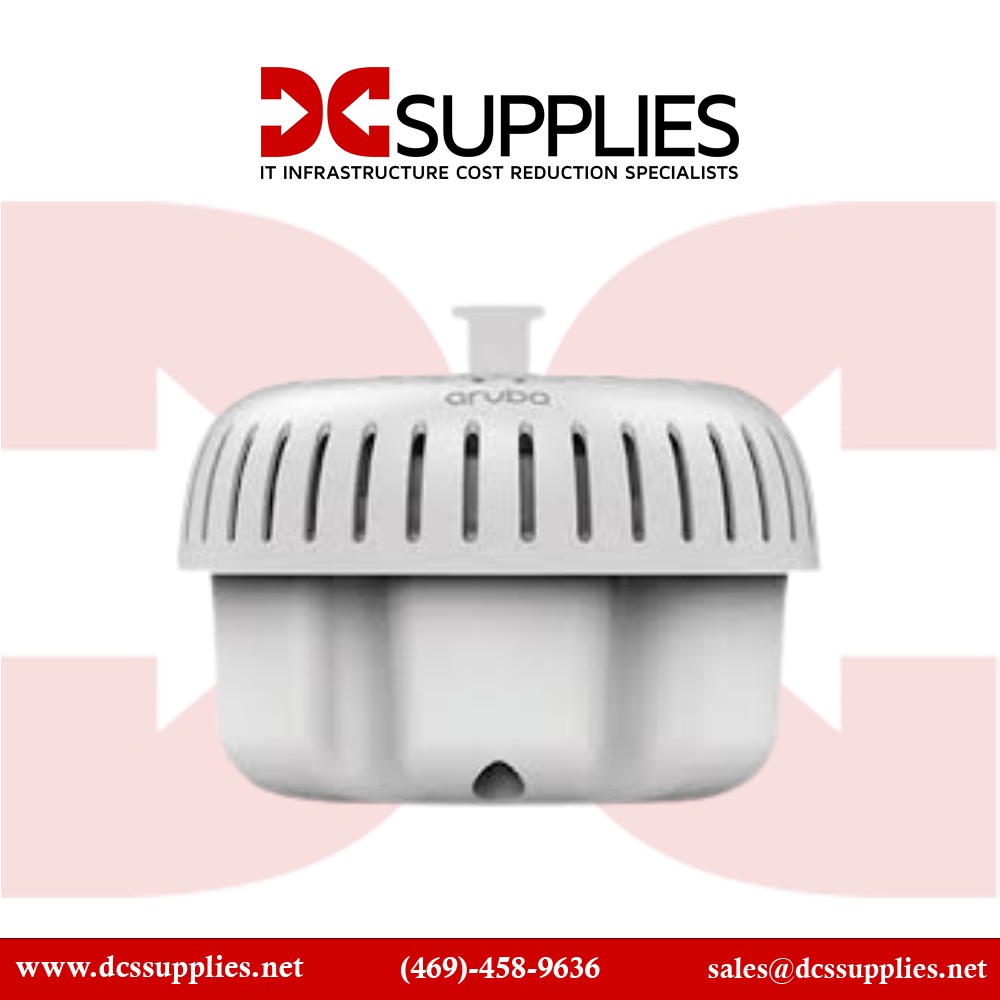

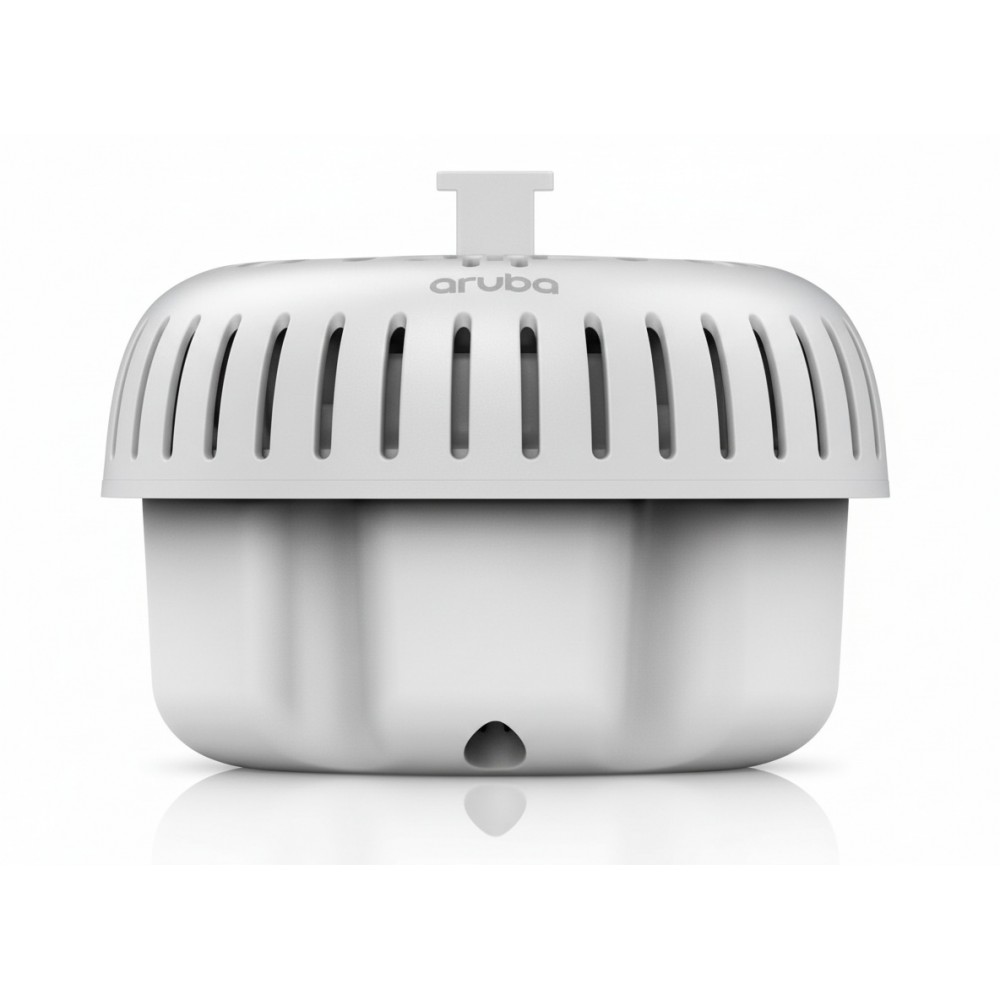

HPE R4H18-61001 Aruba AP-575 Outdoor Wireless Access Point

R4H18-61001

New

Rugged outdoor Wi-Fi 6 AP for enterprise-grade performance.

×




Detailed Specifications

HPE R4H18-61001

Aruba AP-575 Outdoor Wireless Access Point

The HPE Aruba R4H18-61001 AP-575 is a high-performance outdoor Wireless Access Point engineered to deliver enterprise-grade connectivity in extreme environments. Designed with durability, high-speed wireless access, and flexible deployment options, this access point is ideal for organizations requiring seamless outdoor coverage, including campuses, warehouses, and industrial facilities. Leveraging Wi-Fi 6 (802.11ax) technology, it enhances network efficiency, extends client battery life, and boosts overall throughput — even in dense user environments. Whether extending connectivity beyond office walls or establishing reliable outdoor networks, the Aruba AP-575 ensures performance and security that IT professionals can trust.

Features

The Aruba AP-575 is built for the harshest environments, offering IP66/67-rated weatherproofing and robust surge protection. With dual-radio support, MU-MIMO capabilities, and intelligent client load-balancing, it efficiently handles multiple high-bandwidth connections while maintaining a stable signal. Integrated BLE and Zigbee radios enable IoT connectivity, making it a future-ready solution for smart buildings and remote monitoring infrastructures. The unit supports secure tunneling, policy enforcement, and cloud-managed orchestration through Aruba Central, giving network administrators seamless control and visibility over distributed networks.Whether deployed on factory floors, outdoor stadiums, or remote outposts, the AP-575’s seamless roaming, low-latency throughput, and support for WPA3 encryption ensure a secure and consistent user experience.

Advanced Options

Engineered for deployment in harsh outdoor conditions, the HPE Aruba AP-575 offers exceptional durability and operational efficiency. Its rugged housing ensures protection against dust, water, and extreme temperatures, while the industrial-grade surge protection prevents damage from electrical transients. Designed to handle high-density client environments, it features advanced OFDMA and MU-MIMO capabilities to optimize bandwidth usage and minimize latency, even under peak loads.

Product Key Features

  • Wi-Fi 6 (802.11ax) for increased capacity and efficiency

  • Dual-radio 4x4 MIMO with up to 2.97 Gbps throughput

  • Rugged IP66/67 outdoor enclosure with surge protection

  • Integrated Bluetooth and Zigbee radios for IoT support

  • Aruba Secure Infrastructure with WPA3 and Enhanced Open

  • Compatible with Aruba Central and local management


Reliability & Performance

Its support for WPA3 and integrated policy enforcement ensures secure client access, while dynamic segmentation and intelligent traffic handling boost network performance. The optional smart mesh capability allows the AP to serve as both a client and repeater without sacrificing bandwidth, making it highly adaptable in difficult-to-wire areas. With a temperature tolerance from -40°C to +65°C and fanless cooling, the AP-575 guarantees reliable performance in challenging conditions for years to come.

Key Features :

    • Dual-band Wi-Fi 6 (802.11ax) with 4x4 MIMO

    • Maximum data rate up to 2.97 Gbps

    • IP66/67-rated outdoor weatherproof design

    • BLE and Zigbee radios for IoT integration

    • Integrated surge protection (6kV)

    • Centralized or on-premises Aruba management

SpecificationDetails
Model Number R4H18-61001
Product Type Outdoor Wireless Access Point
Wireless Standard Wi-Fi 6 (802.11ax)
Radios Dual-band 4x4 MIMO
Max Data Rate Up to 2.97 Gbps
Antennas Integrated omnidirectional (internal)
Enclosure Rating IP66/67 rated, weather and dustproof
Power Options PoE 802.3at or DC input (12V)
Operating Temperature -40°C to +65°C
Dimensions 270mm x 210mm x 100mm
Weight 2.7 kg (5.95 lbs)
Management Aruba Central / Mobility Conductor
Security Protocols WPA3, Enhanced Open, TPM
IoT Support Bluetooth 5.0, Zigbee
