Detailed Specifications

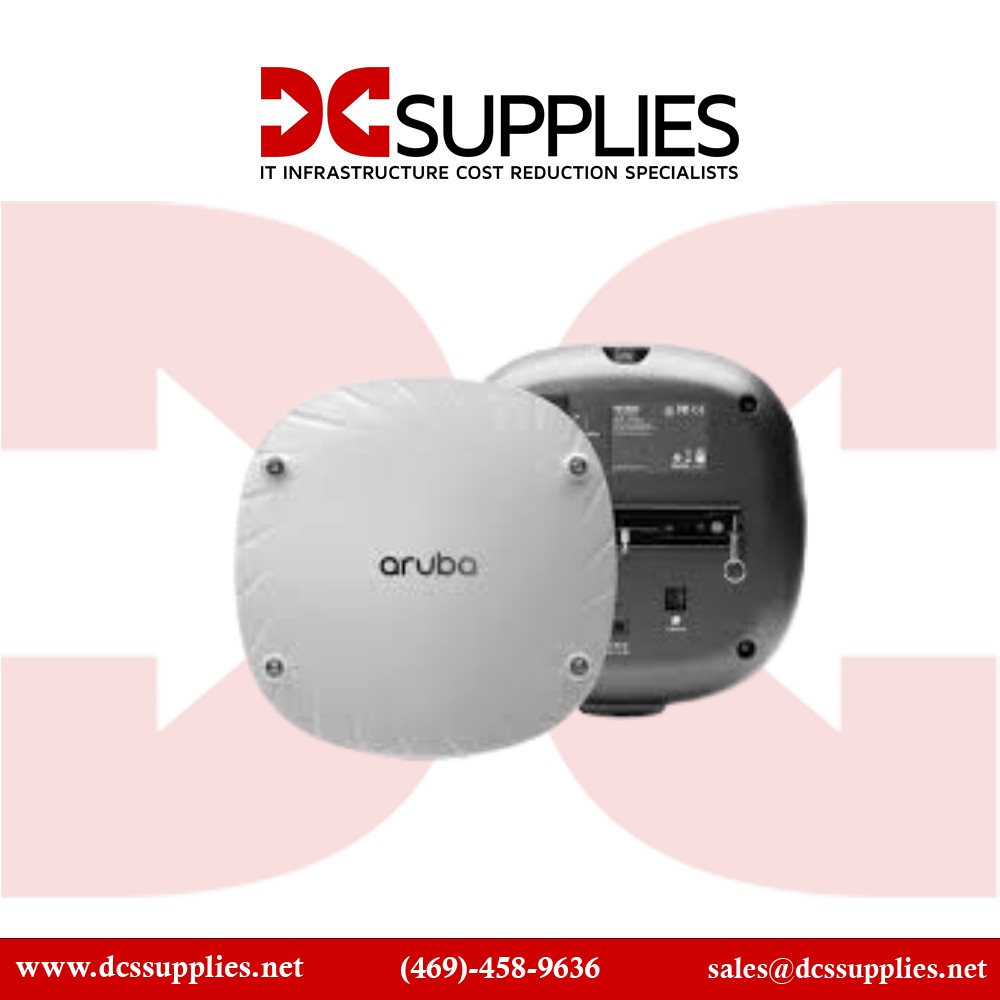

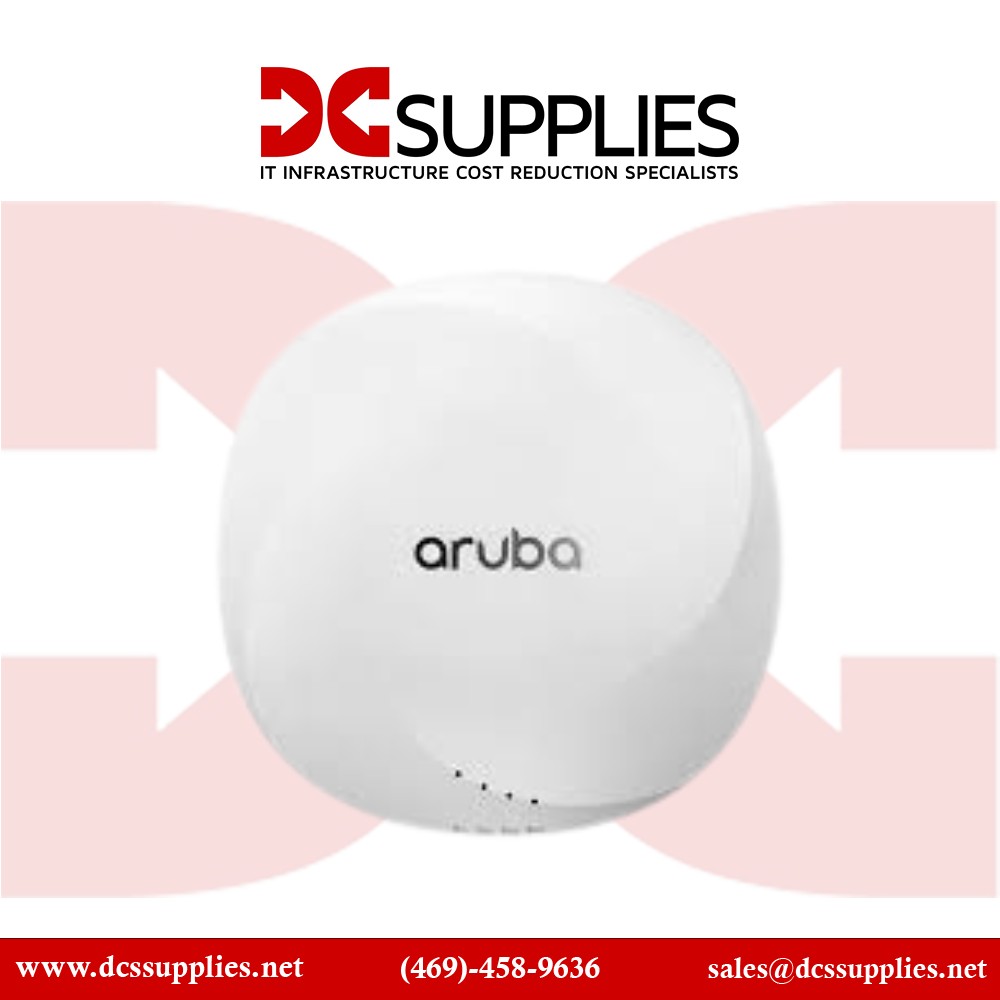

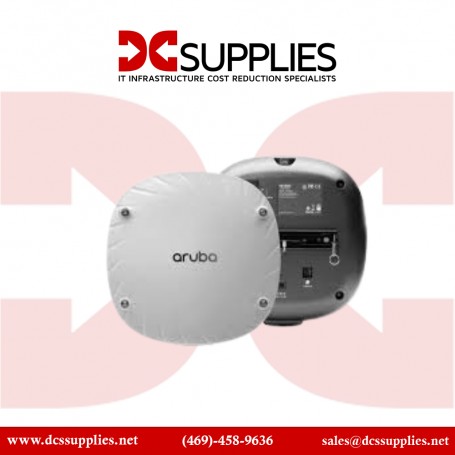

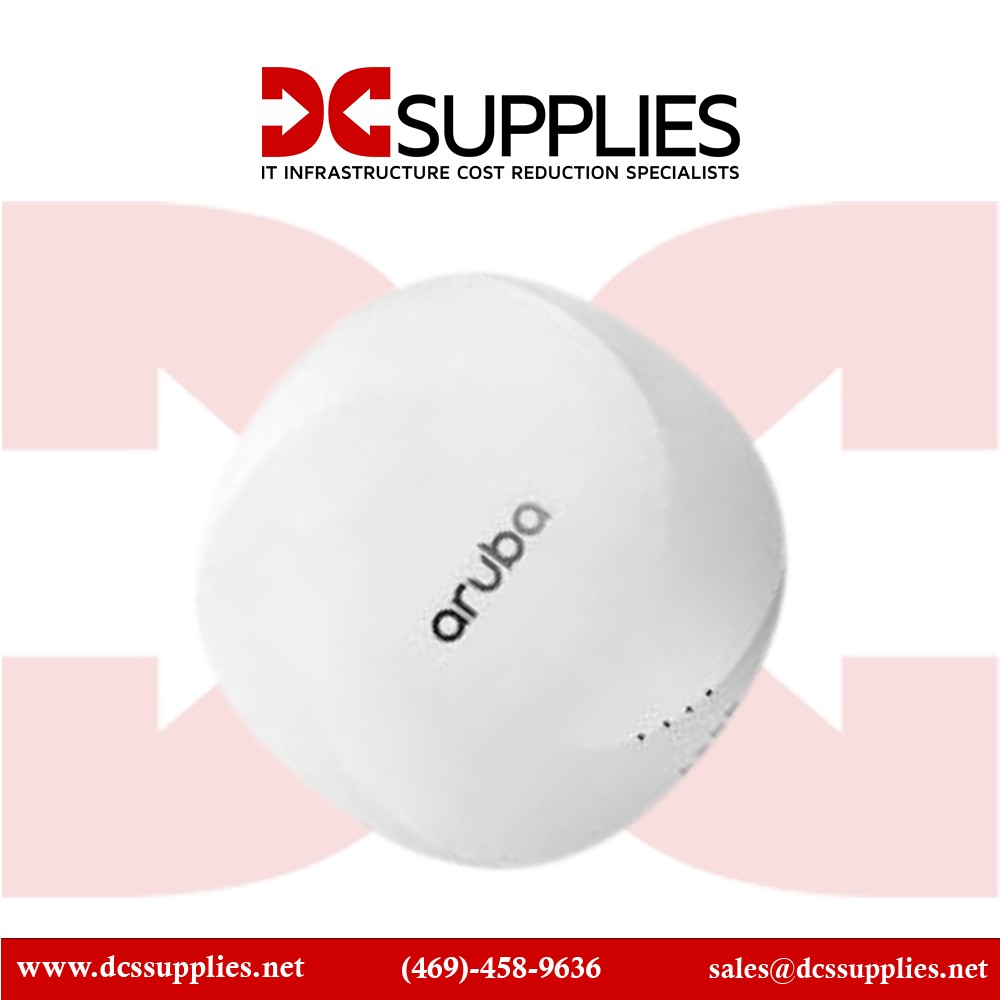

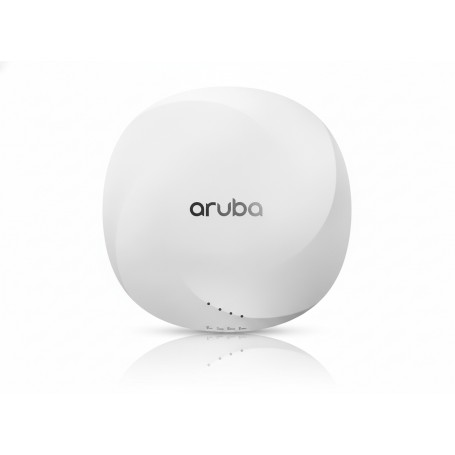

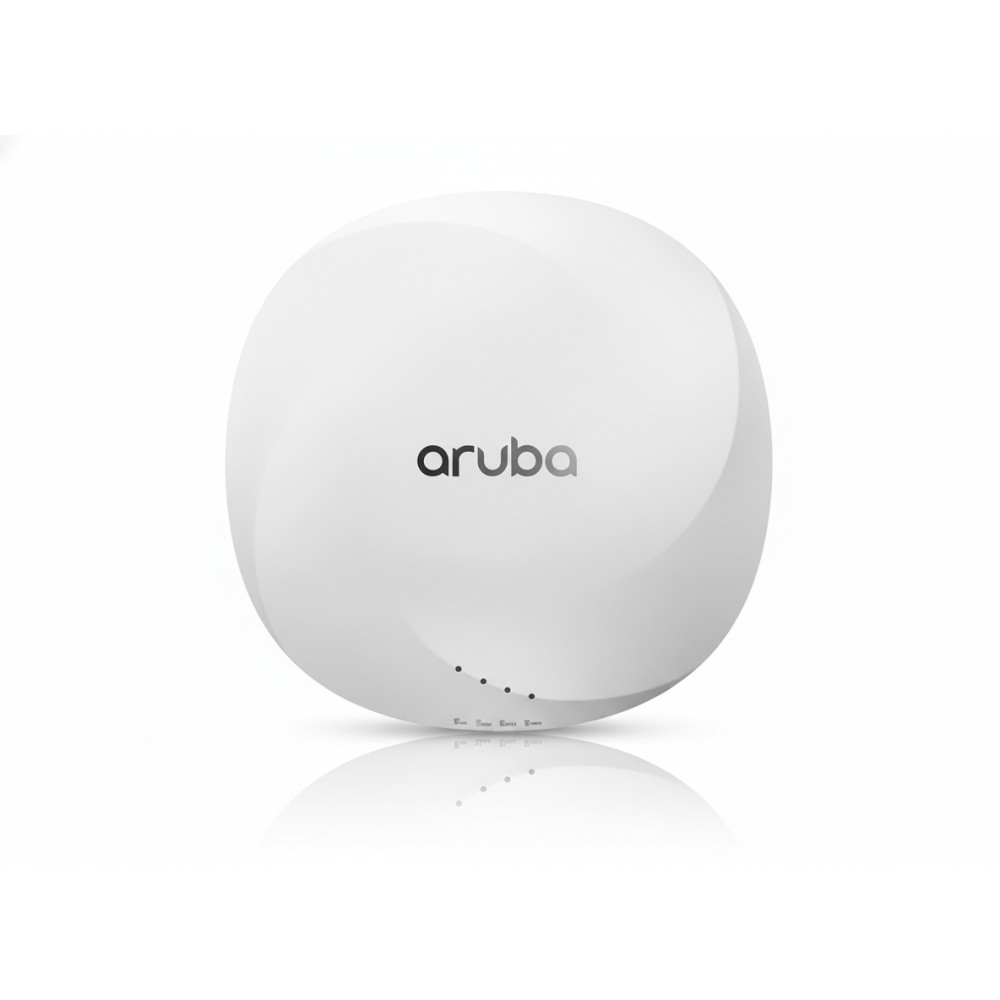

HPE Aruba R7J49-61001 AP-615-RW Wi-Fi 6E Campus Access Point
Overview
The HPE Aruba R7J49-61001 (AP-615-RW) is an indoor campus access point built for enterprise environments requiring high-density wireless connectivity, IoT convergence and future-proof 6 GHz spectrum support. It delivers a combined peak data rate of up to 3.6 Gbps across 2.4 GHz, 5 GHz and 6 GHz bands via dual radios in a tri-band configuration, making it suitable for offices, classrooms or hospitality deployments with large numbers of clients and devices. It supports internal omnidirectional antennas, built-in GPS and fine-time-measurement for indoor location services, and features a 2.5 GbE RJ-45 uplink with PoE support for simplified wiring. The compact form fits ceiling or wall mounting; its dimensions are approximately 7.9″ W × 7.2″ D × 2.0″ H and weight around 1.59 lb (~0.72 kg). It integrates into the HPE Aruba wired-wireless ecosystem for unified access infrastructure and policy enforcement.
Key Features
Supports 2.4 GHz + 5 GHz + 6 GHz bands (Wi-Fi 6E) in one AP
Dual-radio (2×2) design with combined peak throughput ~3.6 Gbps
2.5 GbE RJ-45 uplink port with Power over Ethernet support
Built-in GPS and fine-time-measurement (FTM) for location services
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE Aruba |
| Part Number | R7J49-61001 |
| Product Type | Campus Wi-Fi 6E Indoor Access Point |
| Certification/Standard | IEEE 802.11ax (Wi-Fi 6E) |
| Wireless Bands | 2.4 GHz, 5 GHz, 6 GHz |
| Maximum Combined Throughput | Up to ~3.6 Gbps |
| Uplink Port(s) | 1 × RJ-45 2.5 GbE (PoE) |
| Antennas | Internal omnidirectional |
| Dimensions (W × D × H) | ~7.9″ × 7.2″ × 2.0″ (~201 mm × 183 mm × 51 mm) |
| Weight | ~1.59 lb (~0.72 kg) |
| Typical Power Consumption | ~20.9 W under PoE |
| Operating Temperature | 32 °F to 122 °F (0 °C to 50 °C) |
| Mounting | Ceiling or wall flush mount, included bracket |
| Built-in Location Features | GPS receiver + fine-time-measurement (FTM) |
| Environmental Rating | Plenum-rated for air-handling spaces |
