HPE AP-615-RW

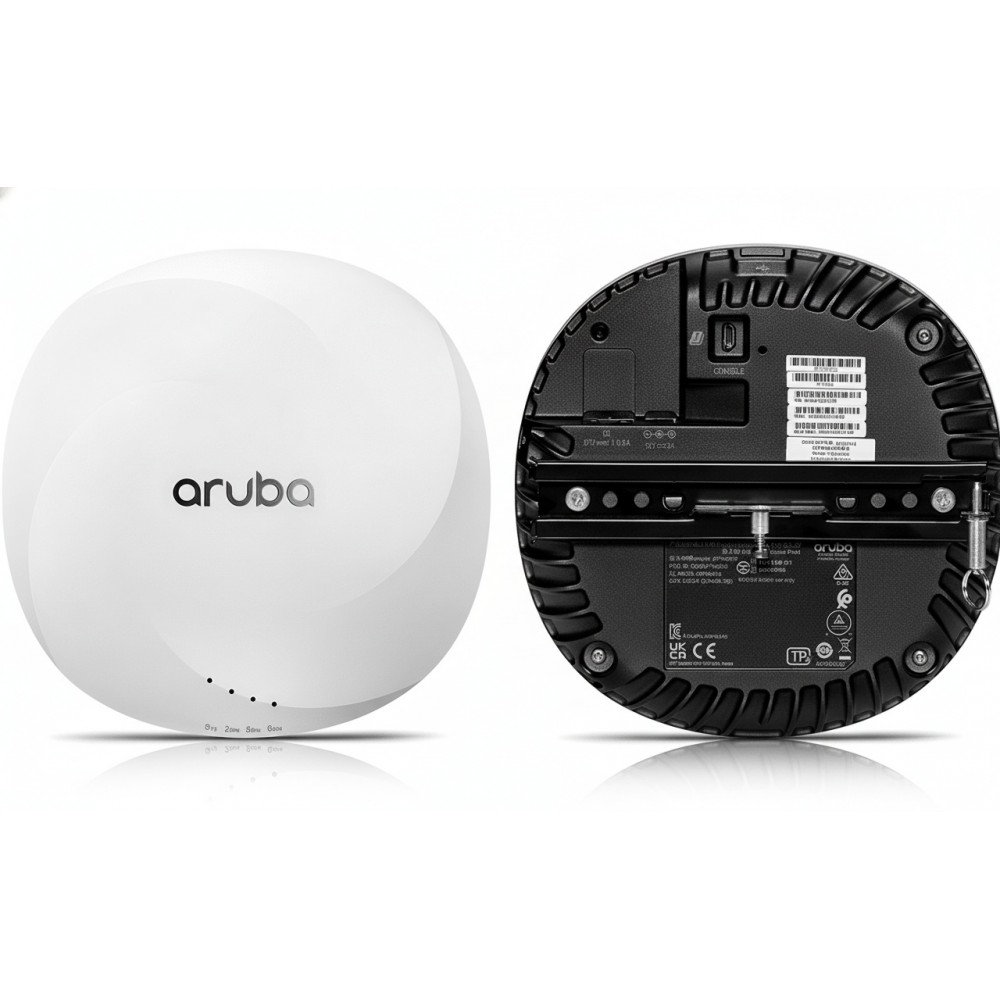

Aruba AP‑615‑RW (610 Series) Dual‑Radio Tri‑Band Wi‑Fi 6E Indoor Wireless Access Point

The HPE Aruba AP‑615‑RW is a Wi‑Fi 6E-certified indoor campus access point from the Aruba 610 Series, supporting tri‑band coverage across 2.4 GHz, 5 GHz, and 6 GHz. Featuring dual 2×2:2 radios that can operate concurrently on any two bands, it delivers up to 3.6 Gbps aggregate throughput (2.4 GHz: ~574 Mbps, 5 GHz: ~1.2 Gbps, 6 GHz: ~2.4 Gbps). Designed for low-power indoor operation, it draws power from standard PoE (802.3af Class 3) and includes a Smart Rate Ethernet interface supporting up to 2.5 GbE—ideal for reducing wired bottlenecks. Integrated GPS and Fine Time Measurement (FTM) enable location-aware services. With features like OFDMA, MU‑MIMO, ClientMatch, Intelligent Power Monitoring, and dynamic band allocation, the AP‑615‑RW delivers high performance, security, and scalability for modern branches, SMB offices, and campus deployments.

Features

Aruba 610 Series access points are built around software-configurable dual radios that can be tuned to two out of the three available spectrum bands—2.4 GHz, 5 GHz, and 6 GHz—with full tri-band coverage achieved across multiple APs. The AP‑615‑RW model supports Wi‑Fi 6E on the 6 GHz band, unlocking up to 1200 MHz of additional spectrum and enabling up to seven 160 MHz channels to reduce interference and latency-intensive applications like AR/VR and UHD video. Leveraging Wi‑Fi 6 technologies such as OFDMA, MU‑MIMO, Target Wake Time, and BSS Coloring, the AP also enhances power efficiency and multi-user performance. Aruba -specific capabilities—including ClientMatch and Advanced Cellular Coexistence (ACC)—further optimize seamless roaming and RF performance in dense environments. The device supports WPA3, Enhanced Open, and BLE integration for secure client onboarding and IoT deployments. Integrated GPS allows the APs to serve as reference points for precise indoor location services. Operating on Aruba AOS‑CX with cloud or controller management, the AP‑615‑RW is ideal for environments needing enterprise-grade features in a compact, cost-effective enclosure.

Advanced Options

Designed for performance and efficiency, the AP‑615‑RW delivers robust Wi‑Fi coverage while consuming low power (via 802.3af Class 3 PoE). Its 2.5 GbE uplink reduces switch uplink constraints, enabling bandwidth-intensive deployments without costly upgrades. Optimized for indoor LPI (Low Power Indoor) class operation, it operates silently—suited for open-office or retail environments.
