Detailed Specifications

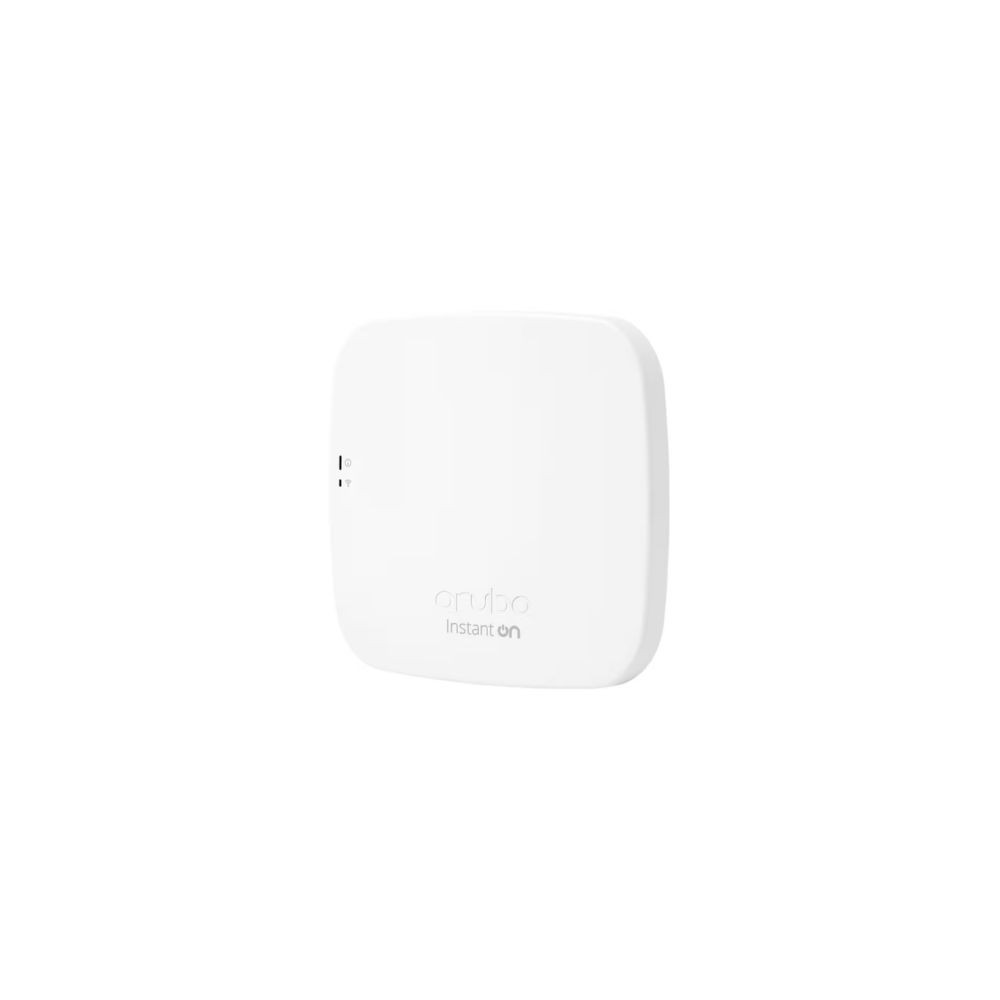

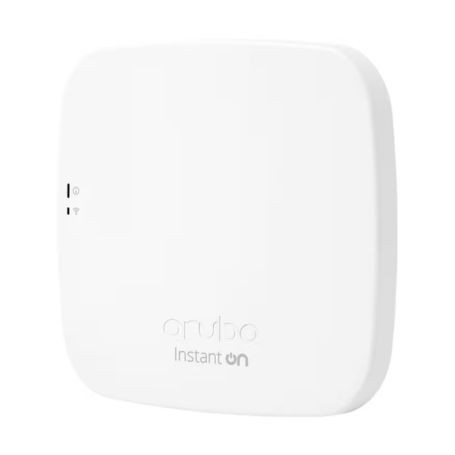

HPE Aruba R2W95-61001 Indoor Dual-Band WiFi 5 Access Point
Overview :
The HPE Aruba R2W95-61001 is an indoor dual-band WiFi 5 (802.11ac Wave 2) access point designed for small to medium business deployments. It supports 2×2 MU-MIMO radios across the 2.4 GHz and 5 GHz bands, enabling throughput up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, providing solid wireless connectivity for typical office use. The unit includes a single Gigabit RJ-45 uplink port with PoE-in (802.3af) or optional DC input, making it easy to integrate into existing wiring infrastructure. It is suitable for deployment in office spaces, retail sites, branch locations or campus edge environments, mounted on walls or ceilings. It integrates with the Aruba Instant On mobile app and cloud portal for simplified setup and management without requiring a dedicated wireless controller.
Key Features :
Dual-band 802.11ac Wave 2 (2×2:2) radio configuration
Up to 867 Mbps (5 GHz) + 300 Mbps (2.4 GHz) wireless throughput
Single Gigabit RJ-45 uplink with 802.3af PoE-in support
Wall or ceiling mountable, with internal omni antennas (~5.8 dBi)
Supports WPA2, WPA3 and Opportunistic Wireless Encryption (OWE)
Specifications :
| Specification | Value |
|---|
| Brand | HPE Aruba |
| Part Number | R2W95-61001 |
| Product Type | Indoor Dual-Band WiFi 5 Access Point |
| WiFi Standard | IEEE 802.11ac Wave 2 |
| Radio Configuration | 2×2:2 MU-MIMO |
| Maximum Wireless Rate | Up to 867 Mbps (5 GHz) + 300 Mbps (2.4 GHz) |
| Uplink Port | 1× 10/100/1000Base-T RJ-45 (PoE-in) |
| Power Input | 802.3af PoE (Class 3) or 12 V DC |
| Antenna Gain | ~5.8 dBi (internal omni) |
| Security Standards | WPA2, WPA3, OWE |
| Mounting Options | Wall or ceiling mount |
| Dimensions (H × W × D) | 1.3 in × 6.0 in × 6.0 in |
| Weight | 0.4 lb |
| Operating Temperature | 0 °C to 40 °C |
