Detailed Specifications

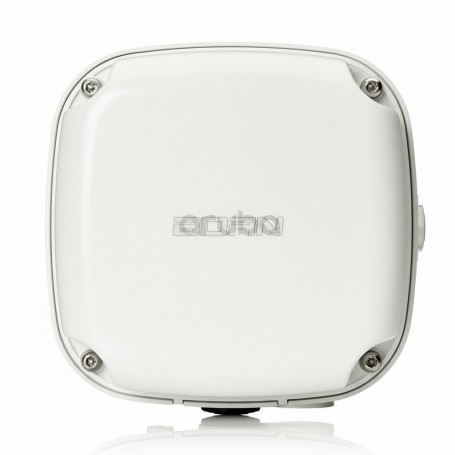

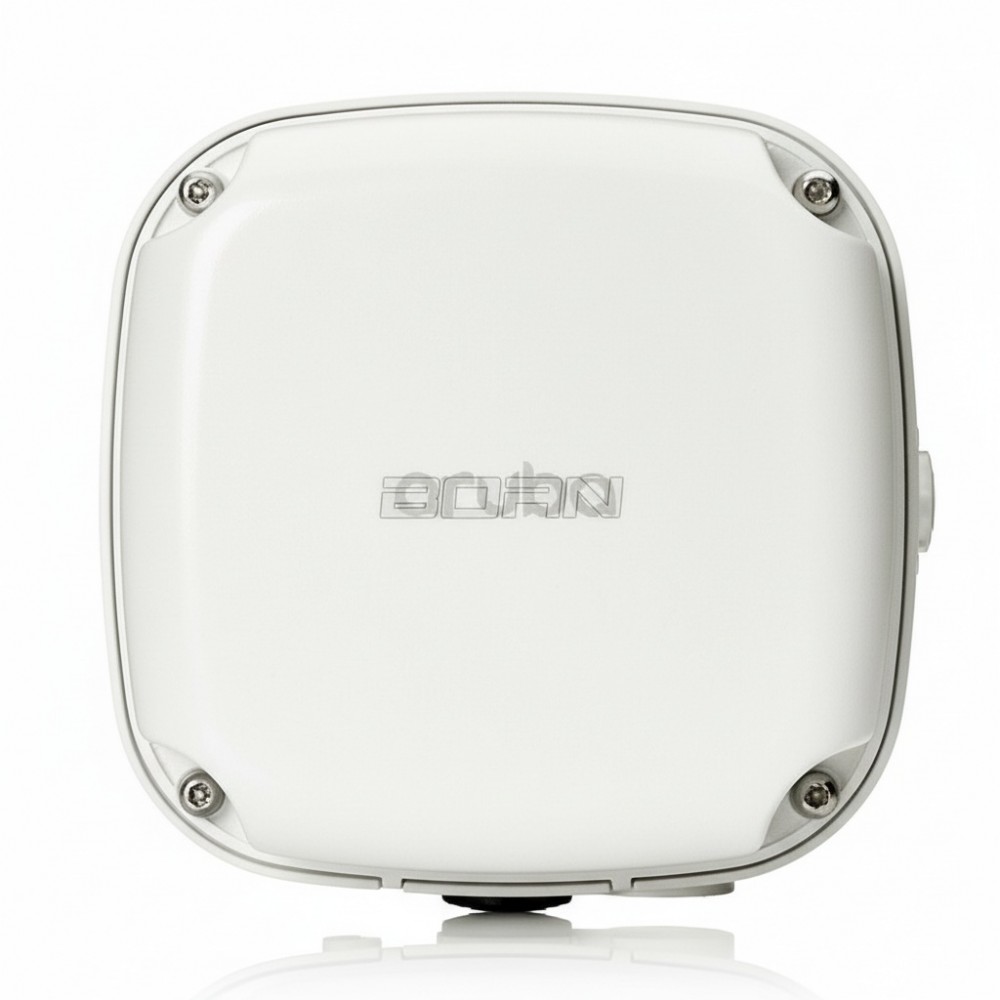

HPE Aruba R4W49-61001 AP-567 WiFi6 Outdoor Access Point
Overview
The HPE Aruba R4W49-61001 is the AP-567 dual-radio 802.11ax outdoor access point designed for harsh environments and high-density deployments. It supports dual-band Wi-Fi 6 with 2×2:2 spatial streams, providing an aggregate throughput of up to 1.73 Gbps (or up to ~1.49 Gbps in some regions). Its ruggedized design (IP67 rated) makes it suitable for outdoor walls, poles or ceilings in campus, transit or industrial-edge settings. The device supports a single Gigabit Ethernet port with PoE+ and includes integrated Bluetooth 5 (and optional 802.15.4/Zigbee) radios for IoT and BLE-enabled services.
Key Features
Dual-band WiFi 6 (802.11ax) 2×2:2 up to ~1.73 Gbps aggregate
Single 1 GbE RJ-45 port with PoE+ (802.3at) support
Rugged outdoor enclosure rated IP67 for pole/wall mount
Integrated Bluetooth 5 and optional Zigbee for IoT and BLE tracking
Supports advanced features: OFDMA, MU-MIMO, Target Wake Time (TWT)
Specifications
| Specification | Value |
|---|
| Brand | Hewlett Packard Enterprise |
| Part Number | R4W49-61001 |
| Product Type | Outdoor WiFi 6 (802.11ax) Access Point (AP-567) |
| Maximum Aggregate Throughput | Up to 1.73 Gbps (region dependent) |
| Wireless Bands | Dual-band: 2.4 GHz & 5 GHz |
| Spatial Streams | 2×2:2 per band |
| Ethernet Uplink | 1× 10/100/1000 BASE-T RJ-45 |
| PoE Power Input | 802.3at (PoE+) |
| Dimensions (W × D × H) | 6.5″ × 6.5″ × 4.3″ |
| Weight | 2.27 lbs (≈ 1.03 kg) |
| Operating Temperature | -40 °C to +55 °C |
| Environmental Rating | IP66/67, designed for salt-spray, wind survival |
| Client Support | Up to 256 clients per radio |
| Antenna Gain (Directional) | 5-GHz: 6.8 dBi, 2.4-GHz: 7.1 dBi |
| Bluetooth & Zigbee Radios | Bluetooth 5 (and optional 802.15.4/Zigbee) |
| Supported WiFi Standards | IEEE 802.11a/b/g/n/ac/ax |
| Warranty | Limited lifetime hardware warranty |
