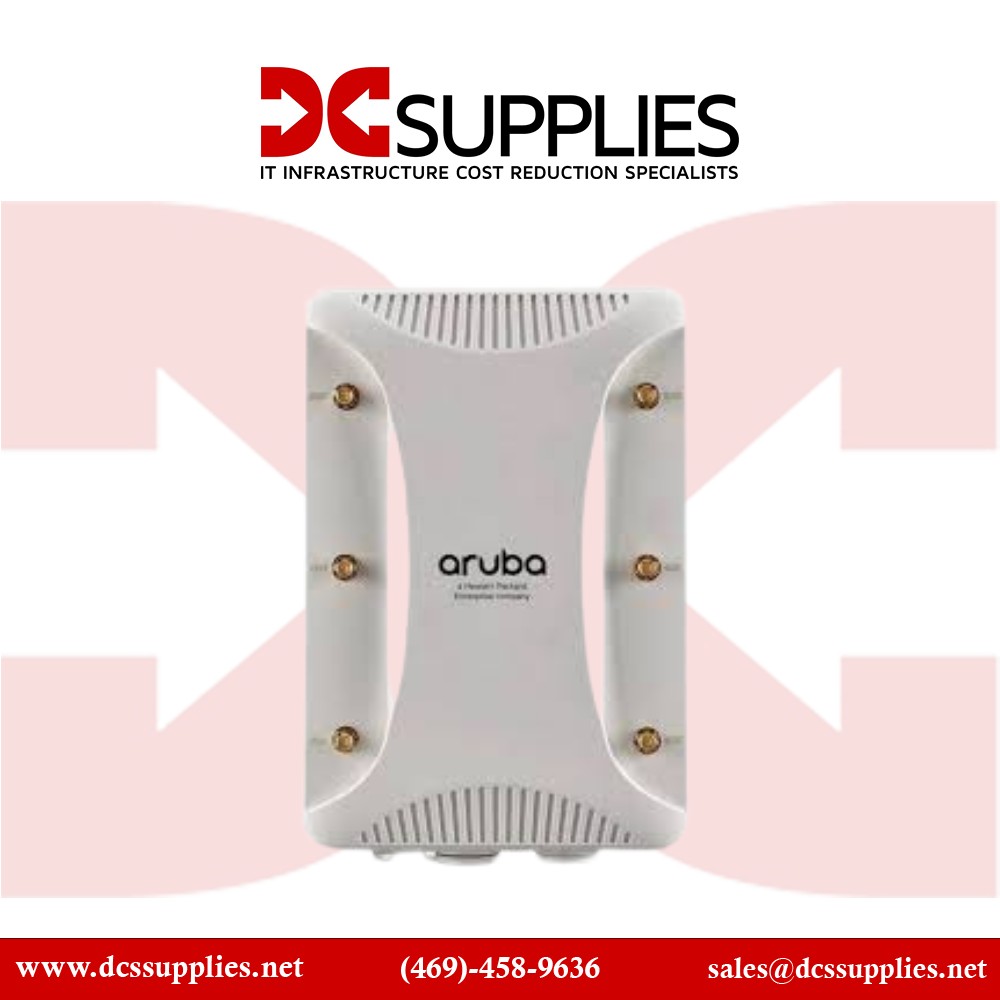

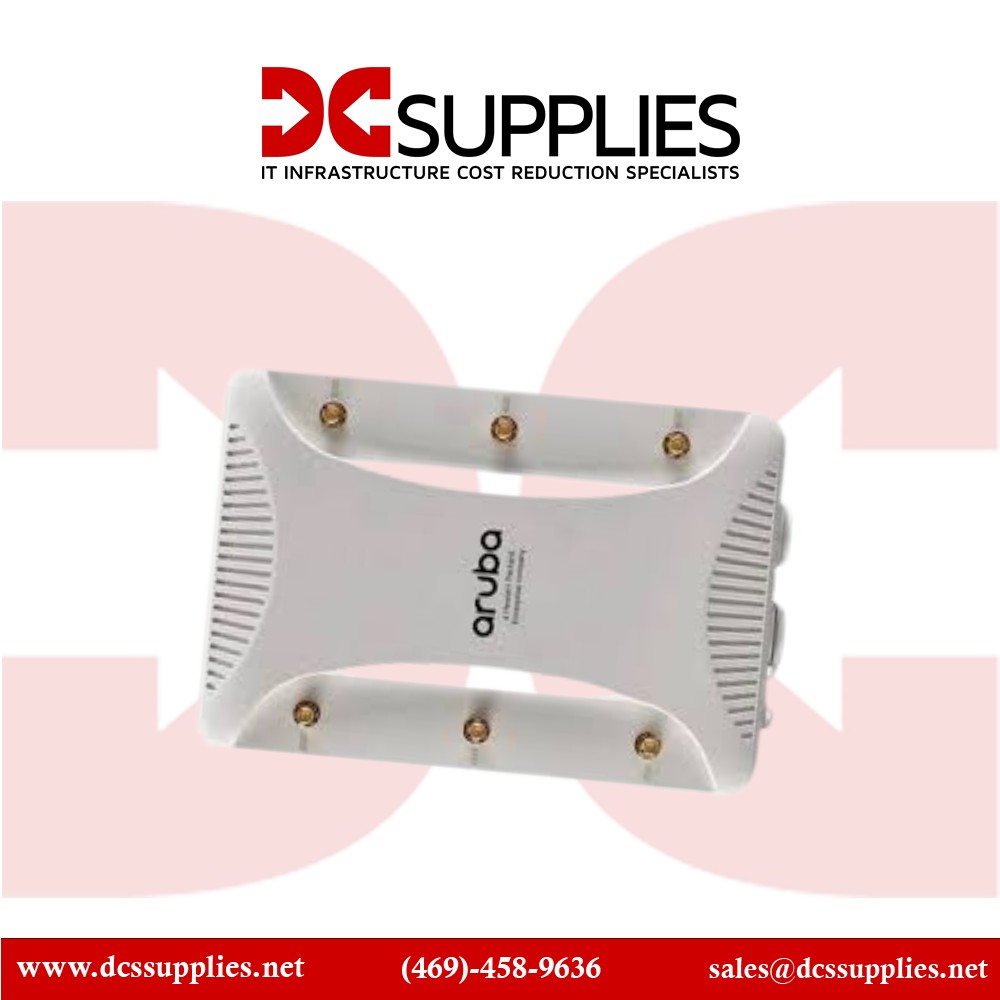

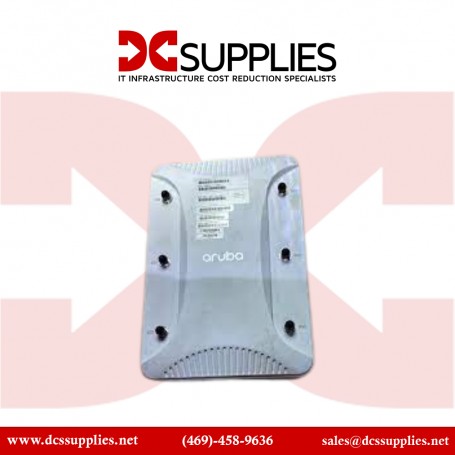

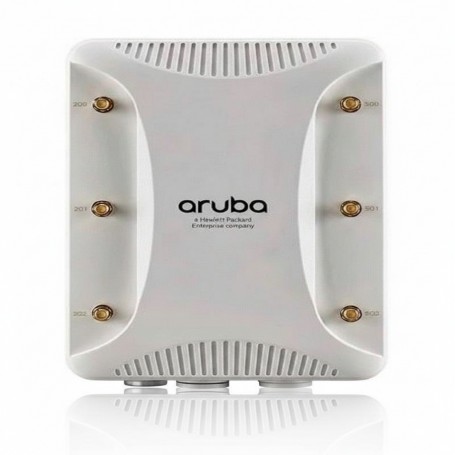

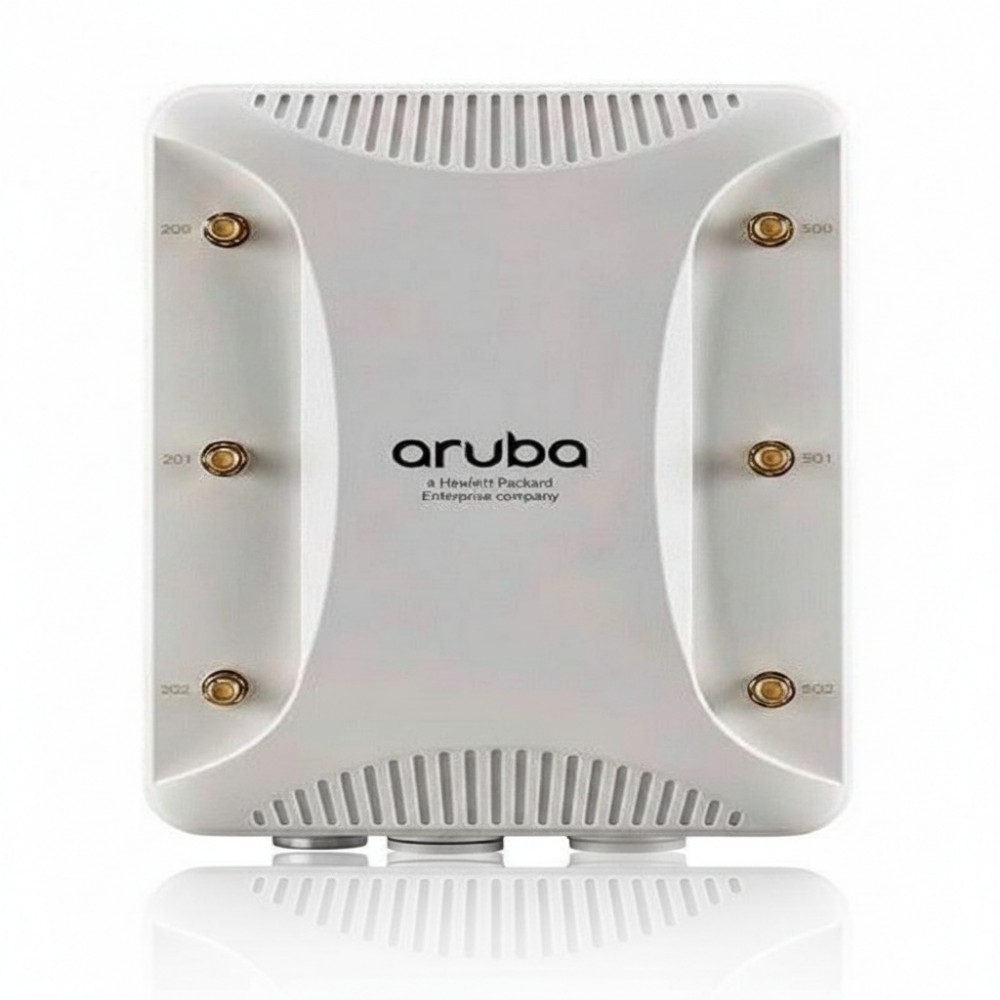

HPE JW158A Aruba AP‑114 Dual-Radio 3×3:3 802.11n External‑Antenna Wireless Access Point

JW158A

New

HPE JW158A Dual-band 3×3:3 802.11n external-antenna access point with Gigabit PoE uplink (AP-114 series).
×




Detailed Specifications

HPE JW158A Dual-Radio 802.11n External-Antenna Access Point

Overview :

The HPE JW158A is a dual-band wireless access point (AP-114 series) built for enterprise indoor deployments that require external antenna flexibility. It features a 3×3:3 MIMO radio per band (2.4 GHz & 5 GHz) providing up to 450 Mbps per band and supports external antenna connectors for enhanced or directional coverage. Designed for branch, campus or retail environments, it supports PoE power and integrates with Aruba Instant or ArubaOS-managed wireless networks. Its external-antenna design allows adaptation to challenging RF layouts or long-range bridging within indoor venues.

Key Features :

  • Dual-band 802.11n 3×3:3 radio in both 2.4 GHz and 5 GHz

  • External antenna connectors for customizable coverage

  • Gigabit 10/100/1000 BASE-T uplink with PoE support

  • Supports controller-managed and Instant deployment modes

  • Up to 450 Mbps per radio band throughput

Specifications :

SpecificationValue
Brand Hewlett Packard Enterprise (HPE)
Part Number JW158A
Product Type Dual-Radio 802.11n External-Antenna Access Point (AP-114)
Wireless Standards IEEE 802.11a/b/g/n
MIMO Configuration 3×3:3 per band
Maximum Throughput Up to 450 Mbps per band
Frequency Bands 2.4 GHz and 5 GHz
External Antenna Ports Yes (for external antennas)
Ethernet Interface 1 × 10/100/1000 BASE-T
Power Input PoE (802.3af/at) or 12 V DC input
Maximum Power Consumption 13 W typical
Operating Temperature 0 °C to 50 °C
Dimensions (W×D×H) 7.09″ × 7.09″ × 1.77″
Weight 1.43 lbs
End-of-Sale Date 1 Feb 2018
