Detailed Specifications

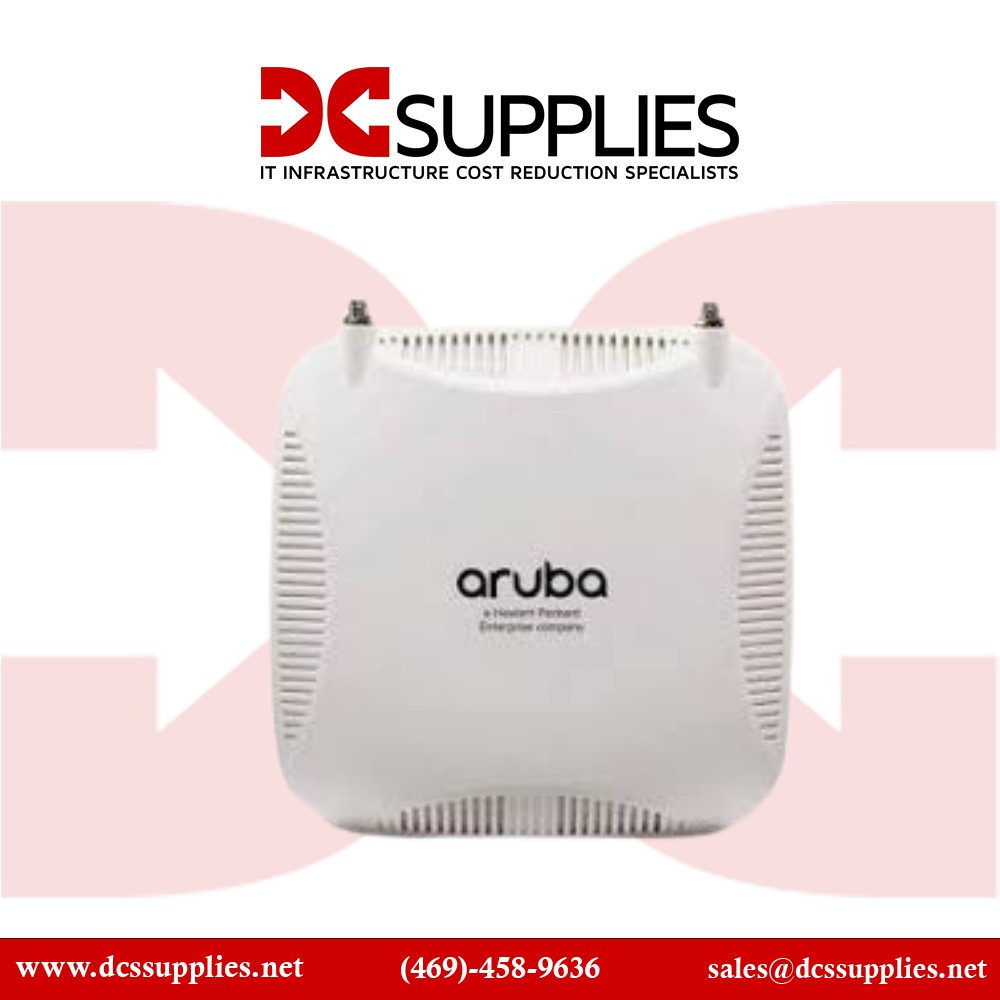

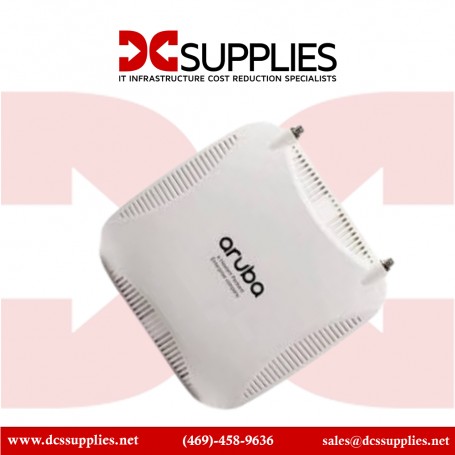

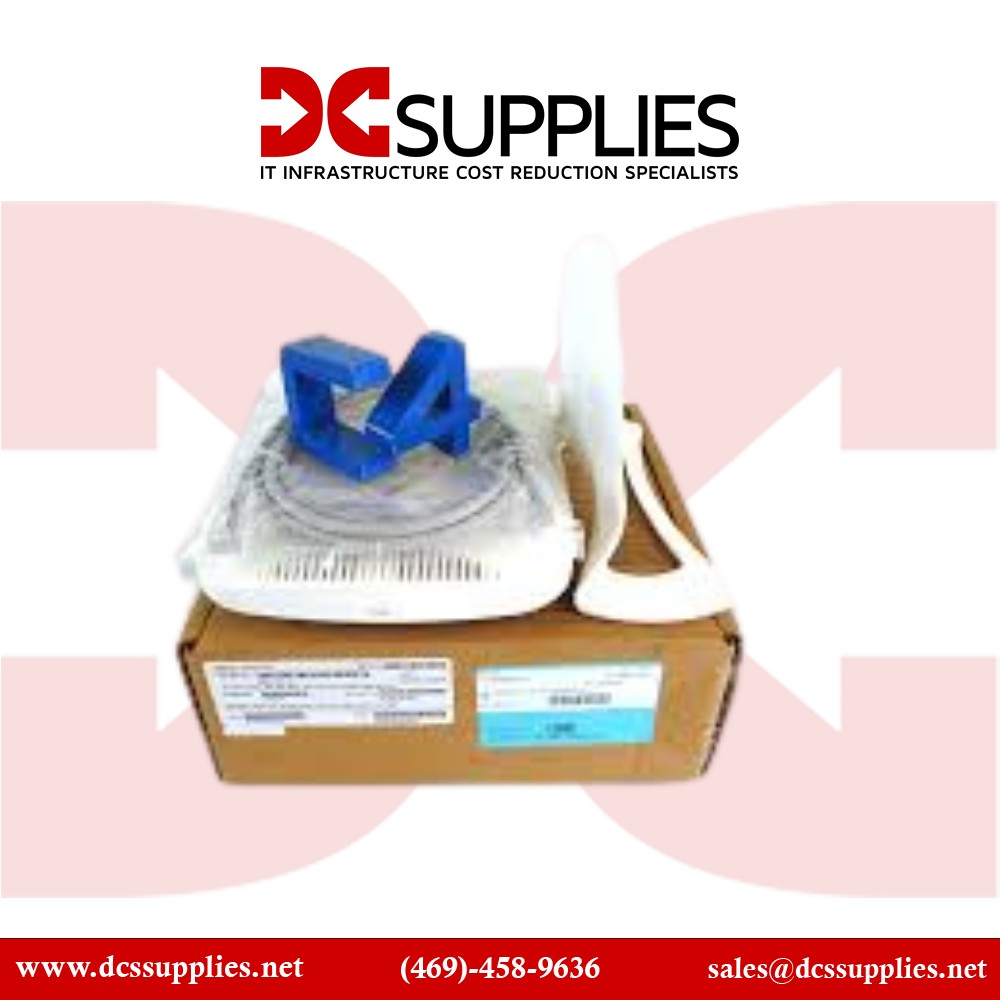

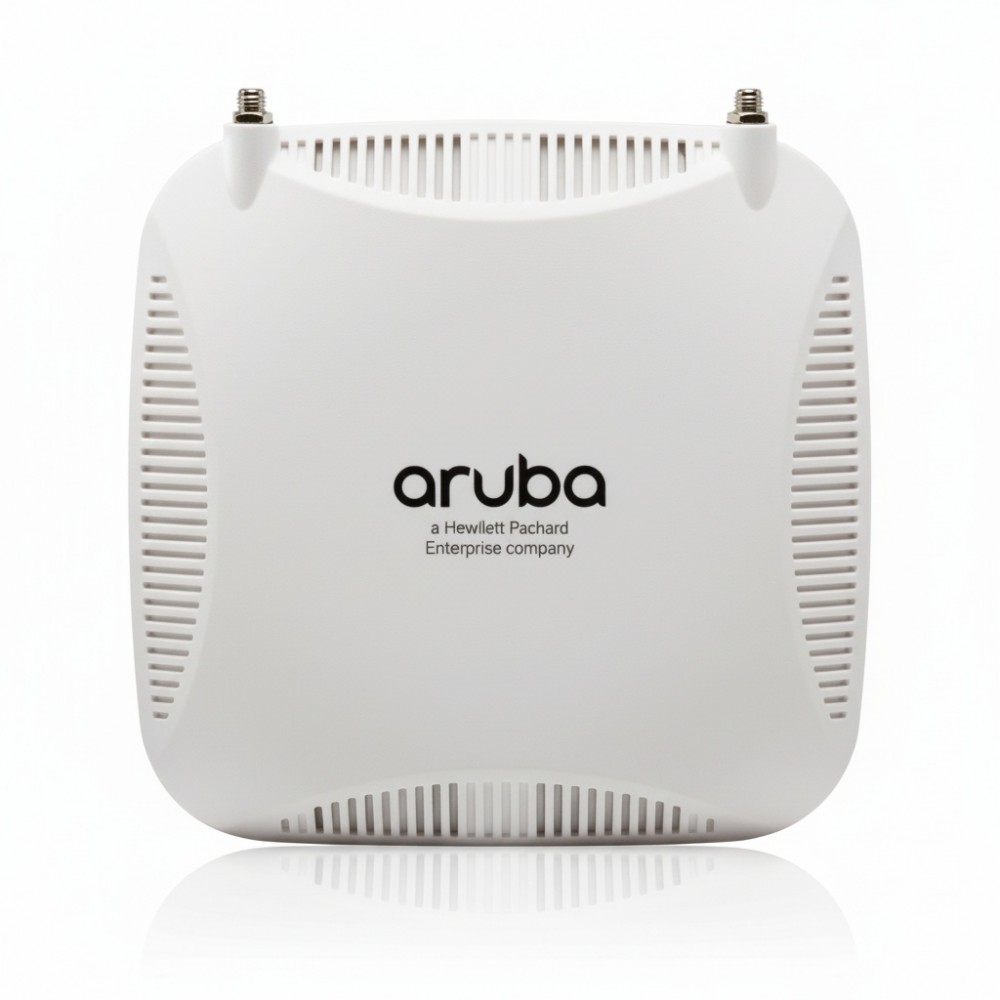

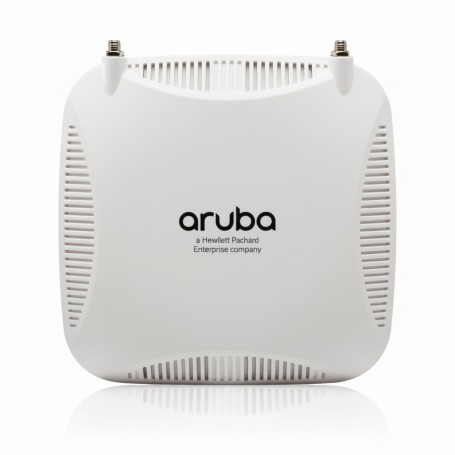

HPE Aruba JW267A RAP-108 Instant Desktop Wireless Access Point
Overview
The HPE Aruba JW267A is a dual-band 2×2:2 IEEE 802.11n remote access point designed for branch and teleworker environments. It supports both wired and wireless connectivity, enabling secure remote office access and seamless integration with Aruba Instant or controller-managed modes. It delivers up to 300 Mbps aggregated wireless throughput across the 2.4 GHz and 5 GHz bands and supports a gigabit uplink plus a secondary Fast Ethernet port. The unit mounts on desktops, walls or ceilings and can be powered via PoE or external adapter, making it suitable for small offices, home offices or satellite sites.
Key Features
Dual-band 2.4 GHz/5 GHz 802.11n with 2×2:2 MIMO and up to 300 Mbps throughput
Uplink 10/100/1000BASE-T plus local 10/100BASE-T port for wired device support
Supports PoE (802.3af/at) and external 12 V adapter for flexible deployment
External dual-band antenna connectors allowing coverage optimisation
Zero-touch provisioning with Aruba Activate plus ClientMatch and ARM roaming support
Specifications
| Specification | Value |
|---|
| Brand | Hewlett Packard Enterprise (HPE) |
| Part Number | JW267A |
| Product Type | Aruba RAP-108 Wireless Access Point |
| Wireless Standard | IEEE 802.11a/b/g/n |
| Wireless Bands | 2.4 GHz & 5 GHz |
| Maximum Aggregate Throughput | 300 Mbps |
| Antenna Configuration | 2×2:2 MIMO with external antenna ports |
| Ethernet Uplink | 10/100/1000BASE-T (RJ-45) |
| Secondary Port | 10/100BASE-T (RJ-45) |
| Power Options | PoE (802.3af/at) or 12 V external adapter |
| Dimensions (W × D × H) | 6.30 in × 1.70 in × 6.30 in |
| Weight | 0.85 lbs (≈ 13.6 oz / 385 g) |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Regulatory Compliance | FCC, CE |
| End-of-Sale Date | October 31 2017 |
| Supported Deployment Modes | Aruba Instant mode or controller-managed |
