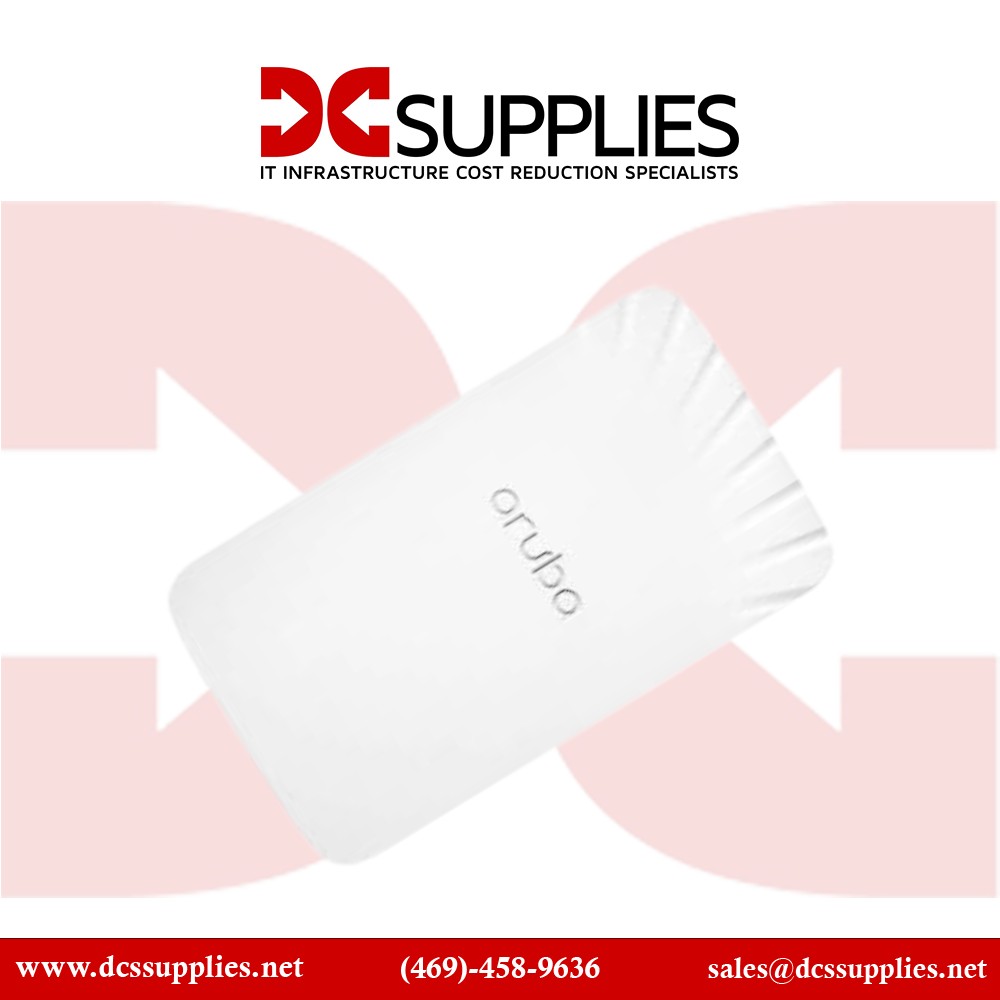

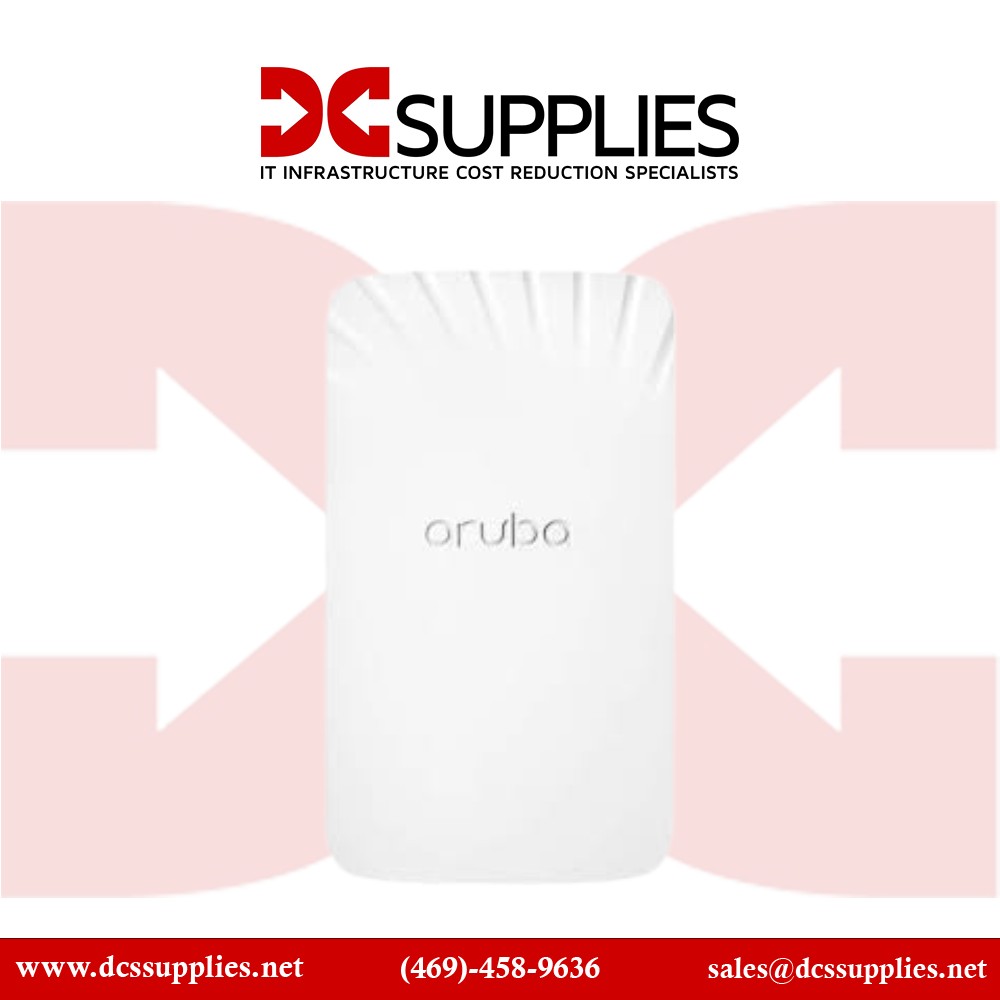

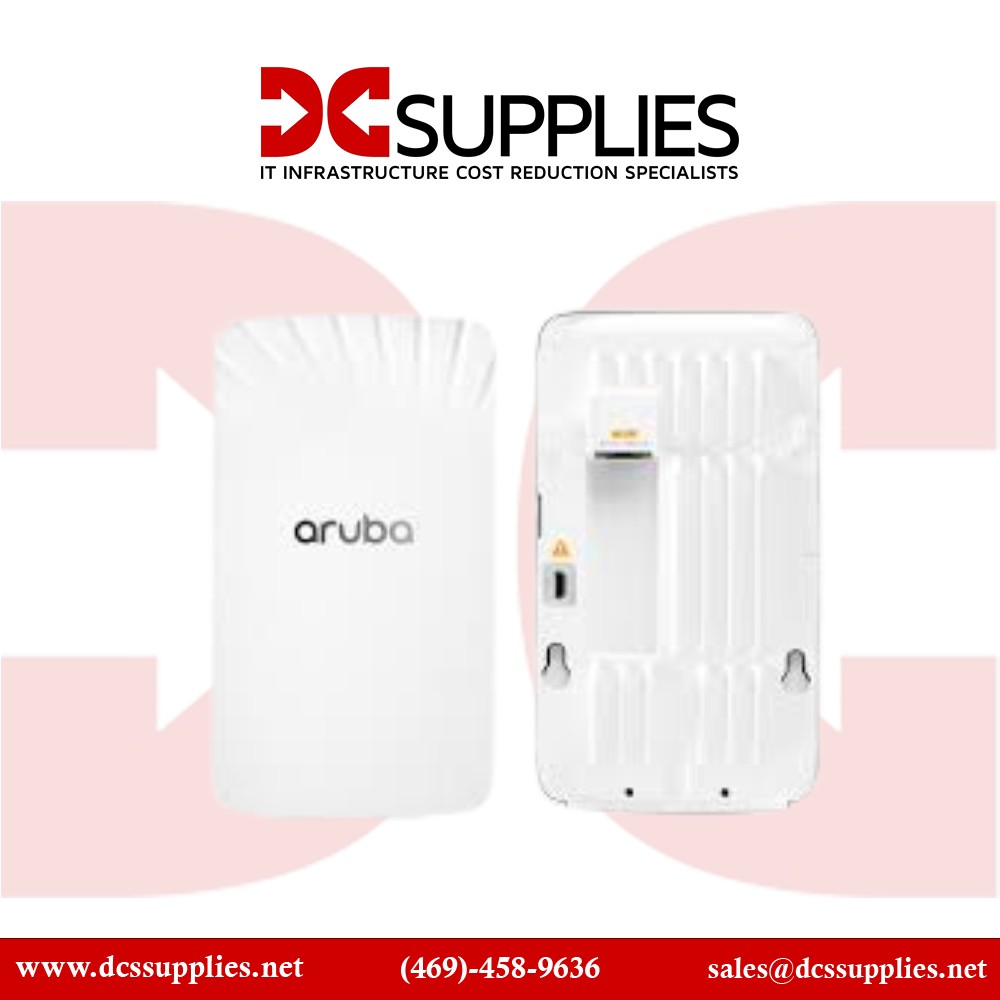

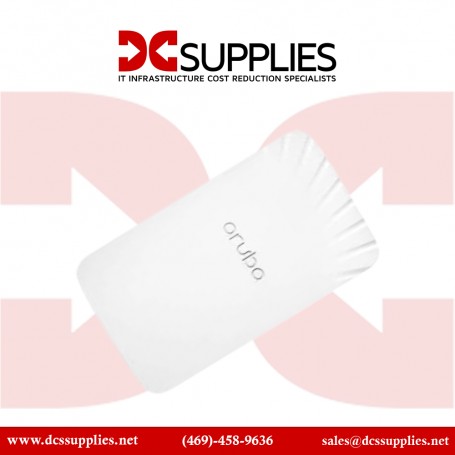

HPE Aruba R3V38-61001 AP-503H wireless access point

New

HPE R3V38-61001

×




  • New

Detailed Specifications

HPE

R3V38‑61001 – Aruba AP‑503H Unified Hospitality Wireless Access Point

The HPE Aruba AP‑503H (Part No. R3V38‑61001) is a hospitality-optimized Wi‑Fi 6 Wireless Access Point designed for hotels, dormitories, and managed residential networks. Featuring dual‑band 2×2:2 radios, it supports up to 1.49 Gbps aggregate throughput (1.2 Gbps on 5 GHz + 287 Mbps on 2.4 GHz), ideal for dense guest environments. With Aruba Instant or Aruba OS-CX compatibility, built-in BLE and Zigbee support, and advanced RF optimization, the AP‑503H delivers consistent performance in demanding use cases.

Features

The AP‑503H operates using 802.11ax (Wi‑Fi 6) dual‑radio RF architecture with MU‑MIMO support and beam‑forming technology for efficient multi-station throughput. It features one 1 Gbps RJ‑45 PoE uplink port (class 3) and two additional Gigabit ETH ports for wired expansion/daisy‑chaining.

Advanced Options

Integrated BLE and Zigbee radios enable IoT use cases and guest location services. Key Aruba features include Adaptive Radio Management (ARM), ClientMatch, and Dynamic Segmentation via built‑in Policy Enforcement Firewall.

Product Key Features

  • Dual‑radio 802.11ax (Wi‑Fi 6), MU‑MIMO support, up to 1.49 Gbps aggregate

  • Integrated BLE and Zigbee IoT radios

  • Three auto-sensing Gigabit Ethernet ports (1 uplink + 2 downlinks)

  • Aruba Instant or controller-managed deployment with ARM & ClientMatch

  • Compact, fanless design optimized for hospitality environments

Reliability & Performance

Built for continuous 24/7 use in hospitality deployments, the AP‑503H supports up to 256 client devices per radio and 16 BSSIDs per radio. Its internal advanced antennas deliver ~5.0 dBi gain at 5 GHz and ~1.7 dBi average gain at 2.4 GHz, optimized for wall or desk mounting. Power over Ethernet (802.3af class 3, up to 13.5 W) ensures license-free deployment flexibility, with DC input option available. Its robust RF capabilities and secure isolation features ensure consistent performance even in dense environments.

Key Features (Bullet List)

  • Dual‑band 802.11ax (Wi‑Fi 6), 2×2:2 MU‑MIMO radios

  • Up to 1.2 Gbps (5 GHz) + 287 Mbps (2.4 GHz) throughput

  • BLE 5.0 and 802.15.4 Zigbee radios built-in

  • 1 × Uplink + 2 × Downlink 1 GbE ports (PoE class 3)

  • Supports Aruba Instant mode or controller-managed mode

  • Adaptive Radio Management (ARM) and ClientMatch tech

  • Ultra‑compact, fanless design (~150 × 86 × 47 mm, 360 g)

  • Up to 256 clients per radio, 16 BSSIDs per radio

  • Enterprise-grade security with WPA3, OWE, SAE, PEF

  • Optimized for hospitality (wall/desk mounts)

Specifications :

Product Specifications
SpecificationDetails
Model Number R3V38‑61001 (Aruba AP‑503H US Hospitality)
Product Type Indoor Dual‑Radio Wi‑Fi 6 Wireless Access Point
Radio Configuration 2×2:2 (2.4 GHz), 2×2:2 (5 GHz)
Max Data Rate 287 Mbps (2.4 GHz) + 1.2 Gbps (5 GHz), ~1.49 Gbps aggregate
Antennas Integrated semi‑directional Wi‑Fi + BLE 5.0 + Zigbee 802.15.4
Ethernet Interfaces 1 × Gigabit PoE uplink + 2 × Gigabit downlink ports
PoE Power Class Class 3 (up to 13.5 W)
Power via DC Adapter Optional 12 V DC input (PoE takes precedence)
RF Management ClientMatch, ARM, ACC, AIC, LDPC, TxBF, STBC
Clients Supported Up to 256 per radio; up to 16 SSIDs per radio
Operating Temp / Humidity 0 °C to 40 °C; 5–95% non-condensing humidity
Dimensions (WxDxH) 86 × 47 × 150 mm
Weight ~360 g
Warranty Limited Lifetime Warranty
