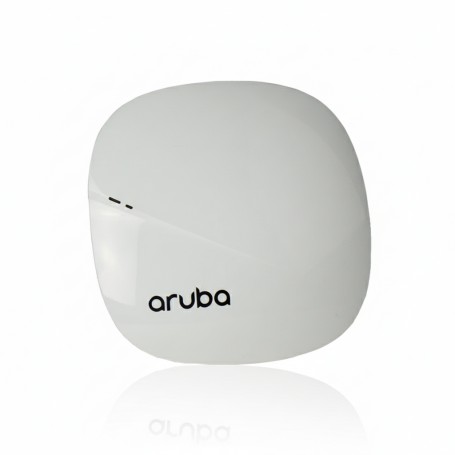

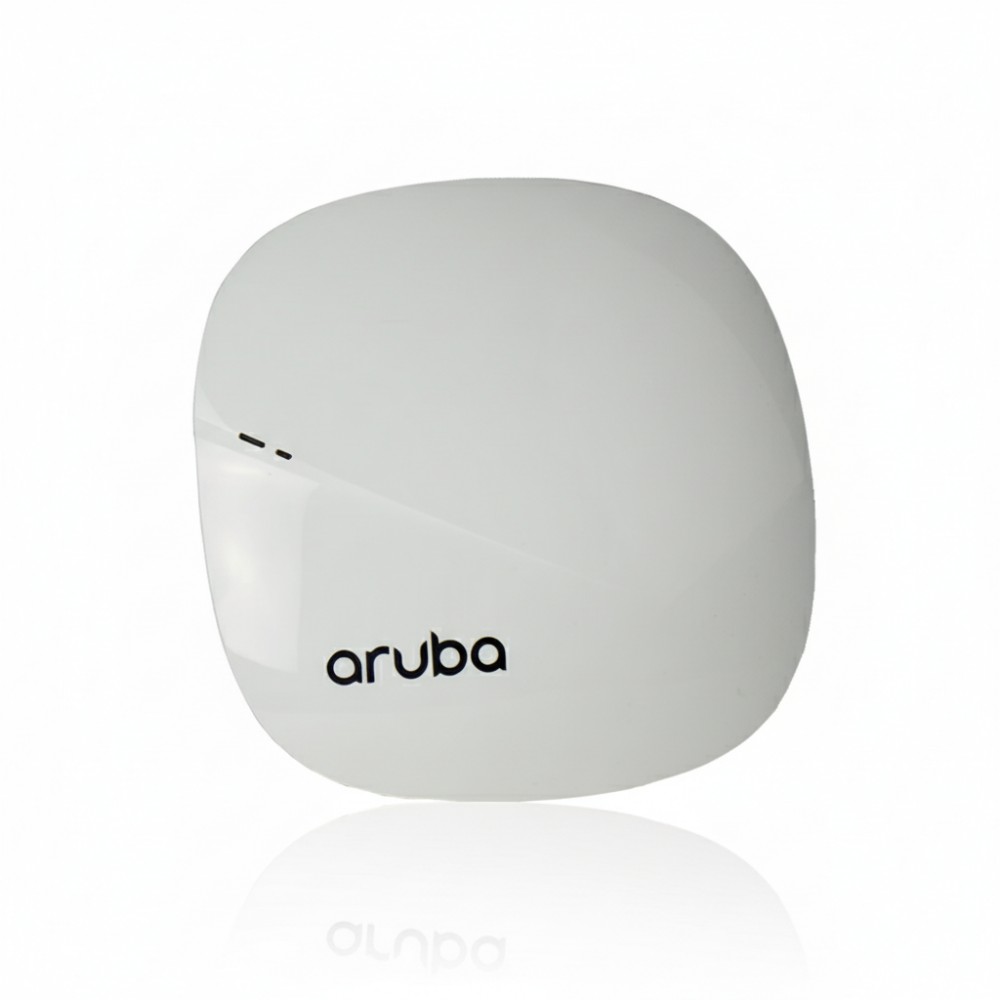

HPE Aruba IAP-305-US 300 WIRELESS ACCESS POINTS

HPEAruba

IAP-305-US ArubaCX 300 Series Instant Wireless Access Point Wi-Fi 5 Wave 2, Dual Radio 802.11ac

The HPEArubaInstant IAP-305-US (model JX946A) is a powerful entry-level 802.11ac Wave 2 Wi-Fi 5 Wireless Access Point designed for medium-density enterprise and SMB environments. Featuring dual-band radios with 3×3:3 MU-MIMO on the 5 GHz band and 2×2:2 on 2.4 GHz, it delivers up to 1.7 Gbps of total throughput×providing fast, reliable connectivity to multiple client devices simultaneously. With integrated omni-directional antennas and Arubaadvanced ClientMatch and Adaptive Radio Management technologies, it simplifies wireless management while optimizing network efficiency and user experience.

Features

The ArubaIAP-305-US operates in controller-less Instant mode (or managed by ArubaMobility Controllers), making deployment fast and scalable. Its built-in Bluetooth Low Energy (BLE) beacon supports location-based services and beacon management.

Advanced Options

Intelligent Power Monitoring (IPM) optimizes power use under PoE constraints by selectively disabling features like USB when needed. Integrated RF monitoring and intrusion detection ensure wireless network security without extra hardware.

Product Key Features

1. Dual-radio 802.11ac Wave 2 (3×3:3 MU-MIMO at 5 GHz, 2×2:2 at 2.4 GHz)

2. Up to 1.3 Gbps (5 GHz) + 400 Mbps (2.4 GHz) = 1.7 Gbps total

3. Integrated Bluetooth Low-Energy (BLE) ArubaBeacon for location services

4. ArubaClientMatch and Adaptive Radio Management (ARM)

5. Supports ArubaInstant mode and Controller-managed deployments

---

Reliability & Performance

The IAP-305-US delivers enterprise-grade reliability with features like Advanced Cellular Coexistence (ACC), QoS optimized for unified communications, and wireless intrusion protection×all built into the AP. Integrated USB host support, energy-efficient operation (≤13.5 W PoE), and Trusted Platform Module (TPM) anchor security credentials and services. Arubafirmware offers robust remote management with telemetry and diagnostics available via ArubaCentral or onboard Instant UI.

Key Features (Bullet List)

• 802.11ac Wave 2 dual-radio, MU-MIMO

• 1 × Gigabit PoE RJ-45 + USB 2.0 port

• Integrated BLE beacon functionality

• Adaptive Radio Management & ClientMatch tech

• Wireless intrusion protection built in

• ARM for airtime fairness and dynamic power/channel control

• Advanced cellular coexistence (ACC)

• Energy-efficient PoE operation via IPM

• Lightweight ceiling/wall mount design

• ArubaInstant or Controller-managed deployment

Specifications :

Product Specifications

Specification	Details
Model Number	JX946A (IAP-305-US)
Product Type	Wireless Access Point
Wi-Fi Standards	IEEE 802.11a/b/g/n/ac Wave 2
Antennas	3× Integrated downtilt omni-directional antennas
MIMO Configuration	5 GHz: 3×3:3; 2.4 GHz: 2×2:2
Max Data Rate	1.3 Gbps (5 GHz) + 400 Mbps (2.4 GHz)
Clients per Radio	Up to 255 clients per radio
Ports	1× 10/100/1000Base-T RJ45 (PoE), 1× USB 2.0 Type A
BLE Beacon	Integrated Bluetooth Low Energy radio
Power	PoE 802.3at (full) / 802.3af (restricted mode via IPM)
Max Power Consumption	~13 W (PoE), 11 W (DC)
Operating Temp / Humidity	0 °C to 50 °C; 5-95% non-condensing
Security Features	TPM, Wireless IDS/IPS, IP reputation filtering
Dimensions (HxWxD)	~3.8 cm × 16.5 cm × 16.5 cm
Weight	~460 g
Warranty	Limited Lifetime Warranty
Compliance	TAA compliant (US SKU)
