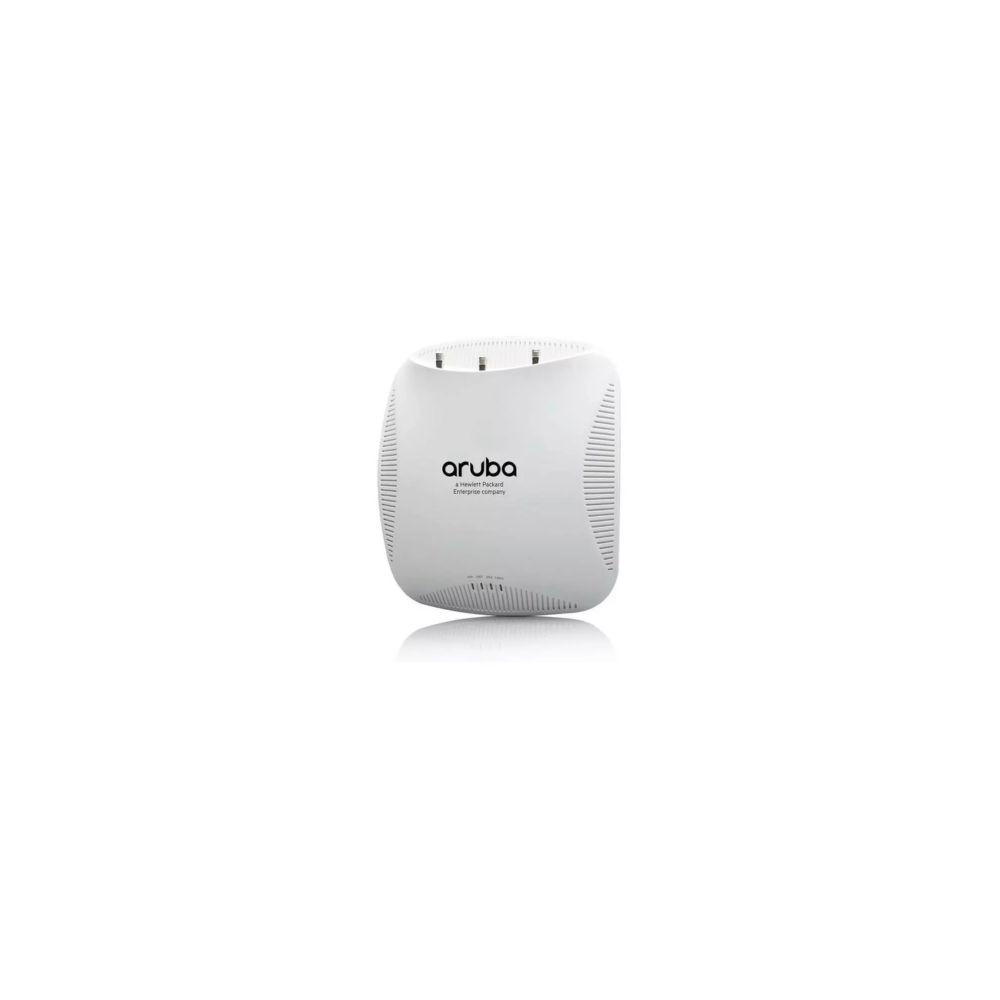

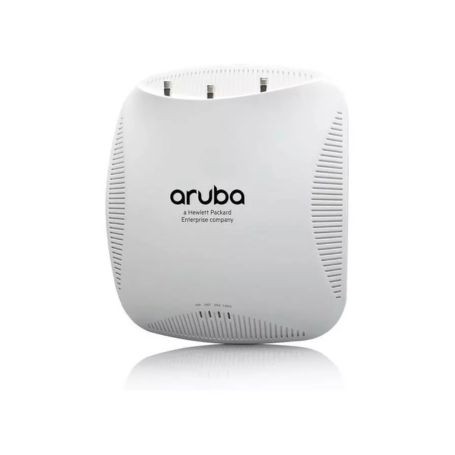

HPE JW223A Aruba Instant Iap-214 Us Wireless Access Point View larger
Previous Next

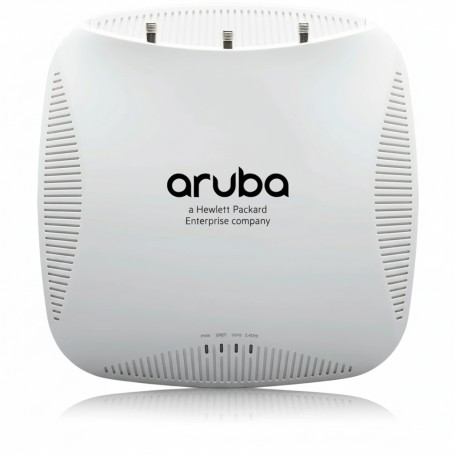

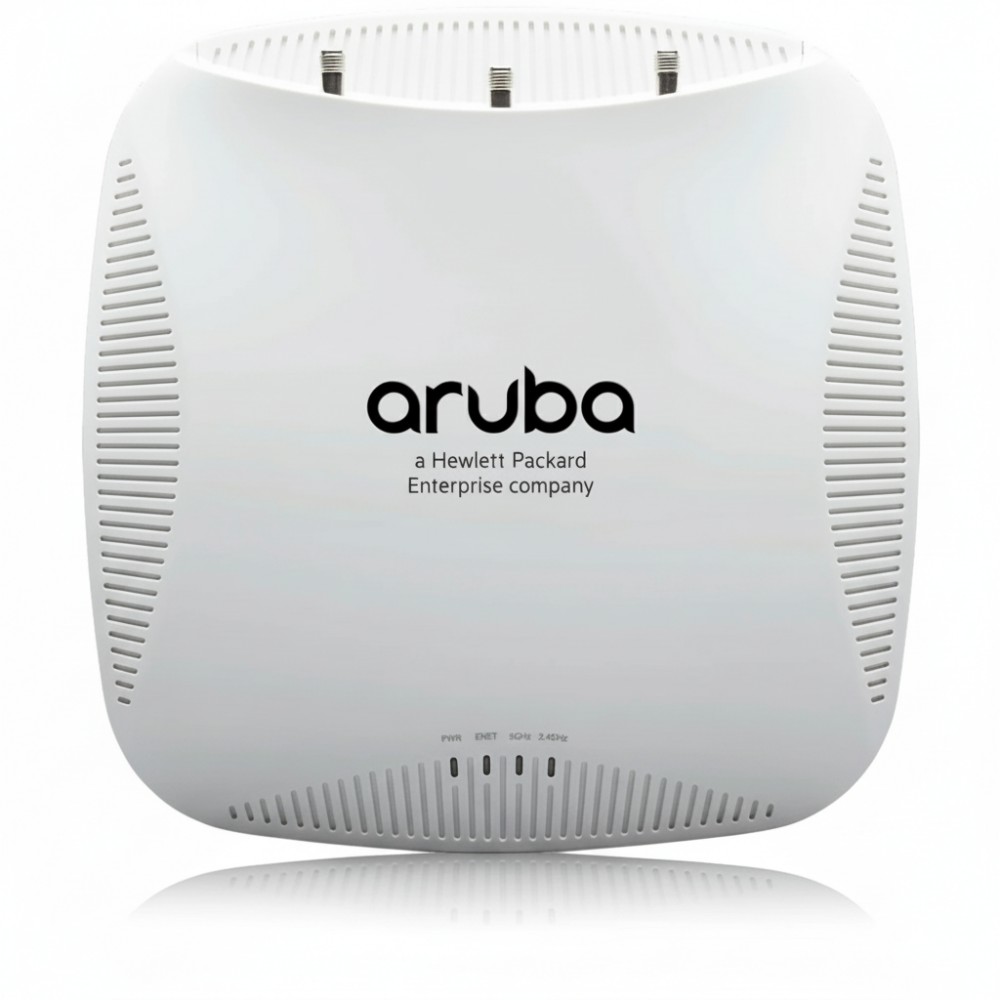

HPE JW223A Aruba Instant Iap-214 Us Wireless Access Point

New

Dual‑band 802.11ac Instant AP, 3×3:3...

×




  • New

Detailed Specifications

HPE JW223A

Aruba Instant IAP‑214 (US) Dual‑Radio 802.11ac 3×3:3 Wireless Access Point

The HPE Aruba JW223A Instant IAP‑214 is a cost‑effective dual-radio access point designed for fast deploymentin small to mid-sized enterprise environments. With 3×3 MIMO radios delivering up to 1.3 Gbps on the 5 GHz band and 450 Mbps on 2.4 GHz, it supports high-density user access and applications. Featuring three external detachable dual‑band antennas (RP‑SMA), USB, console port, and 1 Gigabit PoE RJ‑45 port, it offers flexible installation options. Operated in Aruba Instant mode, the AP simplifies management without a controller—ideal for classrooms, branch offices, and campus deployments.

Features

This Instant-mode 802.11ac AP hosts dual radios—2.4 GHz (up to 450 Mbps) and 5 GHz (up to 1.3 Gbps), each using three spatial streams. It supports beamforming, ClientMatch steering, and RF management features (e.g. ARM) for improved client performance and spectrum use. External RP‑SMA connectors allow custom antenna placement to optimize coverage. Setup is plug‑and-play via InstantOS, with optional PoE or 12 V DC power sources. Ideal for office ceilings or wall mounts using standard tile‑rail kits.

Advanced Options

Built for enterprise-grade use, the Instant IAP‑214 delivers stable wireless performance with effective client distribution and minimal interference thanks to beamforming and ClientMatch. External antennas improve deployment flexibility in challenging RF environments.

Product Key Features

  •  Dual‑band 802.11ac/n radios with 3×3:3 MIMO

  •  External dual‑band antenna connectors (RP‑SMA)

  •  Up to 1.3 Gbps on 5 GHz; 450 Mbps on 2.4 GHz

  •  Single Gigabit PoE RJ‑45 port supporting 802.3af/at

  •  Instant‑mode operation—no controller required

  •  USB port and console port for management and diagnostics

Reliability & Performance

The PoE port simplifies installation by eliminating dedicated wall-adapter power, while InstantOS enables central configuration and firmware updates across AP clusters. Certified for FCC, CE, and RoHS standards, the model offers robust reliability and consistent throughput in managed WLAN deployments.

Key Features :

  • Dual‑band (2.4 GHz/5 GHz) 802.11ac/n with 3×3:3 MIMO

  • External RP‑SMA antenna connectors for customized RF coverage

  • Max aggregate throughput: 1.3 Gbps on 5 GHz, 450 Mbps on 2.4 GHz

  • 1 × Gigabit Ethernet PoE port (802.3af/at compliant)

  • Instant-mode setup—cloud or local managed cluster

  • USB Type‑A and RJ‑45 console ports for support and diagnostics

  • Beamforming and ClientMatch client steering

  • Ceiling tile clip mounting kit included

  • Supports WPA3, WPA2‑Enterprise, Open authentication

  • Compact form for ceiling or wall deployment

SpecificationDetails
Model Number JW223A
Product Type Instant IAP‑214 Dual‑Radio 802.11ac Wireless Access Point
Wireless Radios Dual-radio: 2.4 GHz & 5 GHz, both 3×3:3 MIMO
Max Throughput 5 GHz: 1.3 Gbps; 2.4 GHz: 450 Mbps
Antenna Ports 3 × RP‑SMA (external dual-band cables/antennas not included)
Ethernet Port 1 × 1 GbE RJ‑45 with PoE (IEEE 802.3af/at)
USB Port 1 × USB 2.0 Type‑A
Console Port 1 × RJ‑45 serial console
Power Options PoE (802.3af/at) or 12 V DC input
Management Mode Instant OS-based cluster (no controller needed)
RF Features ARM, ClientMatch, beamforming, spectrum analysis
Security WPA3, WPA2, Open WPA support
Included Mount Options Ceiling T-bar clips for drop tile installation
Operating Temperature 0 °C to 40 °C non-condensing, 5–95% RH
Certifications FCC, CE, UL, RoHS
