HPES1G54A

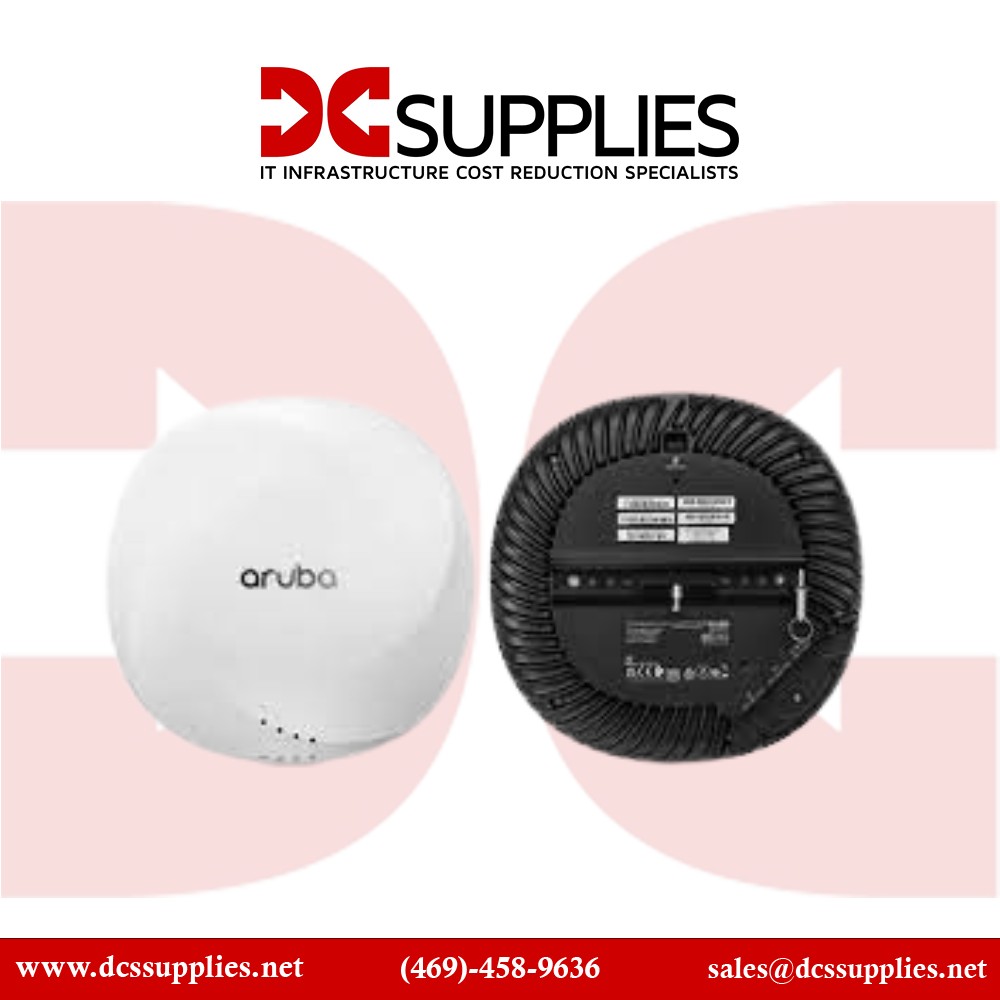

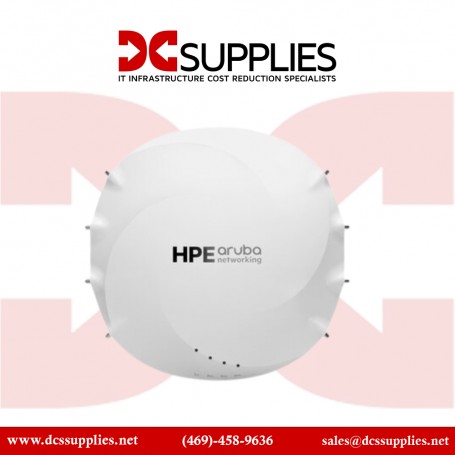

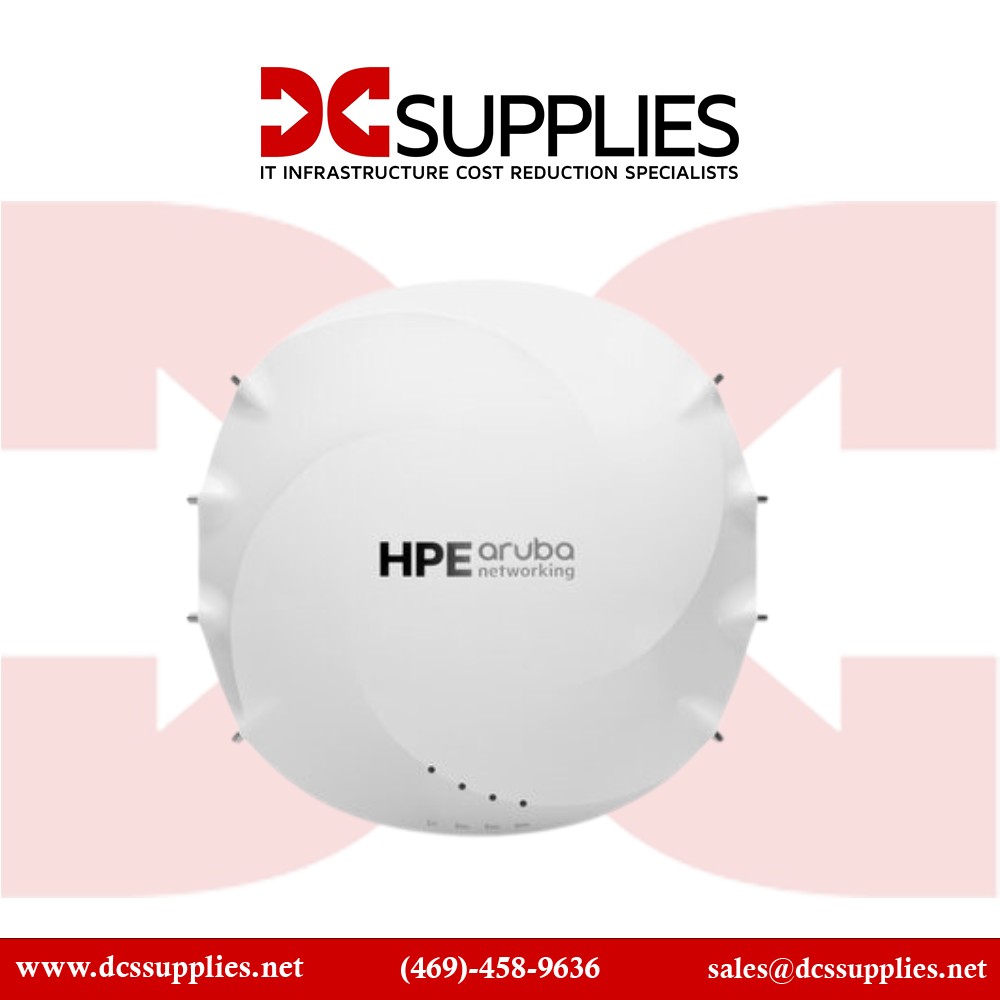

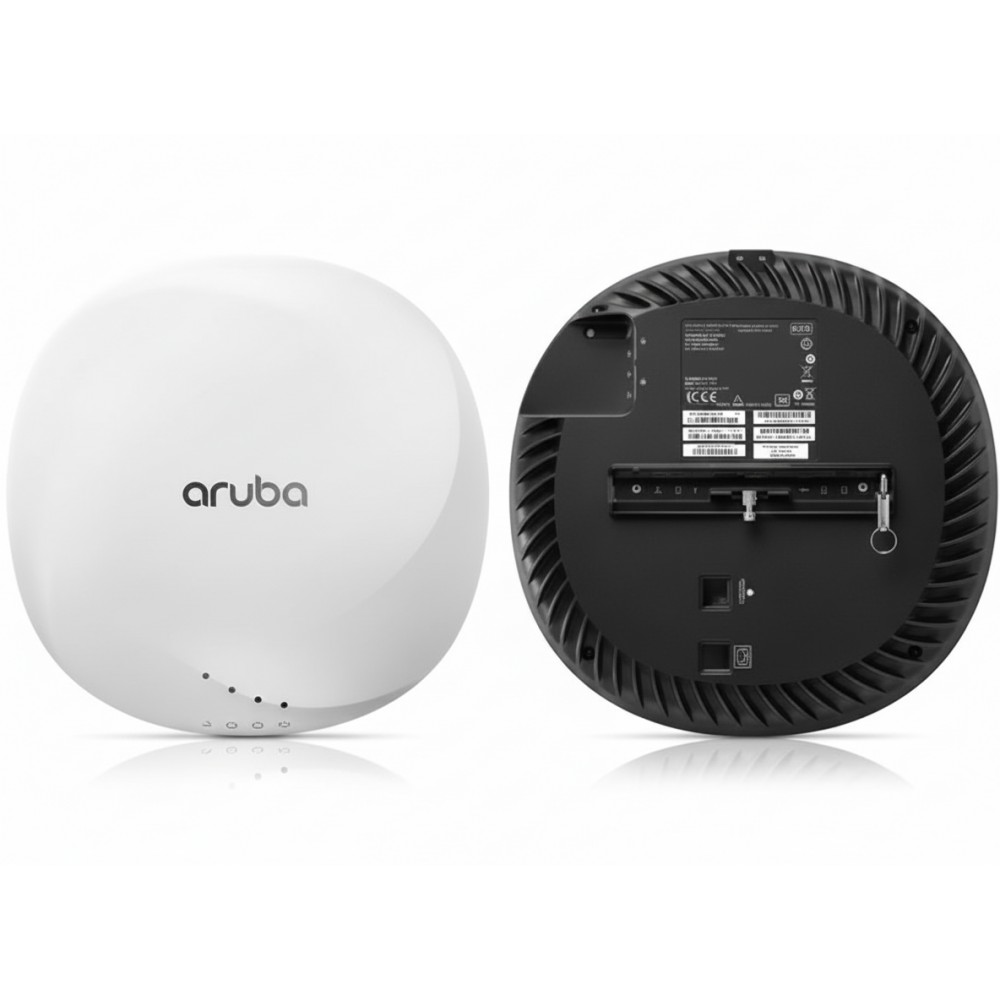

ArubaAP-654 (US) 650 Series Wi-Fi 6E Tri-Radio Campus Wireless Access Point

The HPEArubaAP-654 (S1G54A) is a high-performance tri-radio indoor Access Point designed for campus and enterprise deployments.It operates across 2.4 GHz, 5 GHz, and 6 GHz bands utilizing Wi-Fi 6E standards (802.11ax) and 4×4 MIMO antennas to deliver up to 7.8 Gbps aggregate wireless throughput. With dual 5 GbE ports supporting redundant uplinks and PoE-powered deployment, it is ideal for environments demanding high capacity, low latency, and IoT readiness. The AP also supports Bluetooth LE and Zigbee for integrated device applications, making it a versatile choice for future-ready network infrastructure.

Features

This tri-band AP leverages Arubaultra-tri-band (UTB) filtering to minimize interference between the 5 GHz and 6 GHz bands, enabling seamless concurrent operation and maximum spectrum utilization. It features dual configurable 5 GbE RJ-45 ports to ensure hitless failover, redundant uplink capability, and support for power through PoE. With built-in GPS support and precision location capabilities using IEEE 802.11mc FTM, it can serve as a reference point for indoor positioning and mapping solutions.

Advanced Options

Built for enterprise-grade indoor deployments, the AP-654 delivers consistent high throughput in dense environments, reducing channel congestion with OFDMA and MU-MIMO features. ArubaClientMatch technology automatically steers clients to optimize coverage and load balancing,

Product Key Features

• Tri-band Wi-Fi 6E (2.4 / 5 / 6 GHz 4×4 MIMO)


• Up to 7.8 Gbps combined Wi-Fi throughput


• Dual 5 GbE uplink ports with PoE redundancy


• Bluetooth LE & Zigbee support for IoT integration


• Ultra tri-band filtering to reduce inter-band interference


• ClientMatch & Dynamic Segmentation for client steering and security

---

Reliability & Performance

while Dynamic Segmentation and PEF offer robust policy enforcement and secure traffic zoning. The AP's rugged chassis, internal antennas, and electronic safeguards ensure reliable operation in high-demand settings. The dual-5 GbE ports enable resilient connectivity and PoE redundancy, enhancing uptime even during uplink or power failures.

Key Features :

• Tri-band (2.4 GHz, 5 GHz, 6 GHz) Wi-Fi 6E with 4×4 MIMO

• Up to 7.8 Gbps aggregate wireless throughput

• Dual 5 GbE RJ-45 uplink ports for hitless failover and PoE

• Bluetooth LE and Zigbee support for IoT devices

• Ultra tri-band filtering to minimize interference

• ClientMatch, Dynamic Segmentation, PEF firewall

• Internal omni-directional antennas

• Built-in GPS & FTM-based indoor location support

• Zero-touch provisioning and cloud-ready deployment

• Limited lifetime warranty with Arubasupport

Specification	Details
Model Number	S1G54A
Product Type	Indoor tri-radio Wi-Fi 6E Campus AP Wireless Access Point
Wireless Bands	2.4 GHz, 5 GHz, 6 GHz (4×4 MIMO each)
Peak Aggregate Throughput	7.8 Gbps
Ethernet Ports	2 × 5 GbE RJ-45 (PoE-powered/support redundancy)
PoE Power	IEEE 802.3at/af PoE support
IoT Support	Bluetooth LE and Zigbee radio
Security & Segmentation	WPA3, Enhanced Open, Dynamic Segmentation, PEF
Uplink Modes	Configurable 1/2.5/5 GbE
RF Optimization	ClientMatch, ARM, UTB filtering
Location Services	IEEE 802.11mc FTM + GPS support
Dimensions (W×D×H)	~260 × 260 × 56 mm
Weight	~1.8 kg (with bracket, ~2.2 kg shipping)
Temperature / Humidity	0 °C to 50 °C; 5-95% RH non-condensing
Certifications	Wi-Fi 6E certified, FCC, UL2043, CE, Bluetooth SIG, Zigbee, TAA compliant
