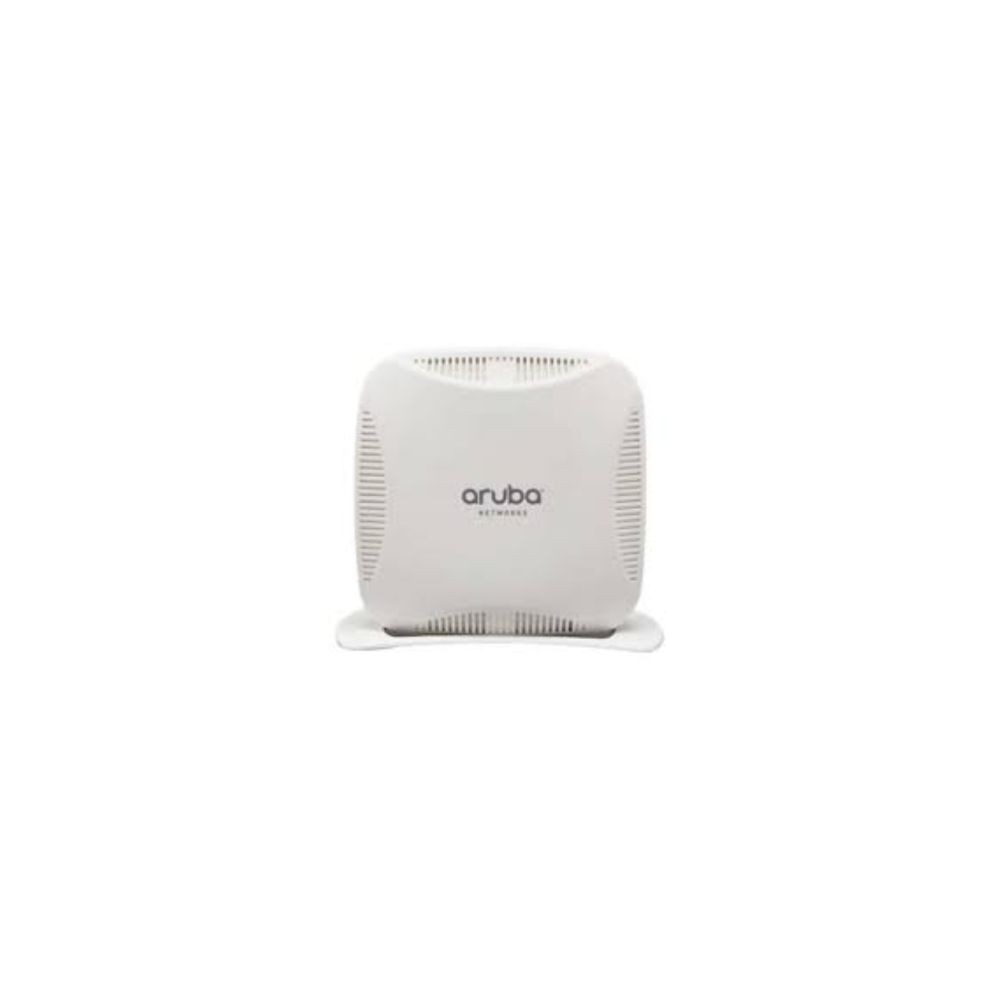

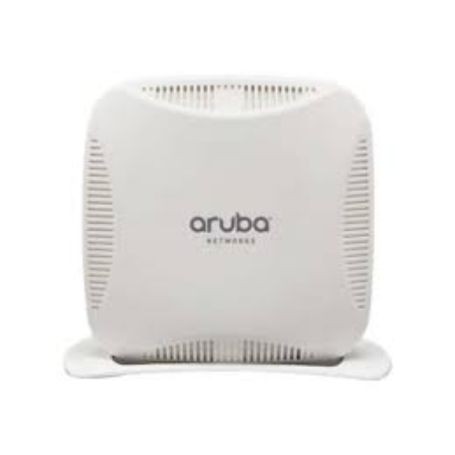

HPE JW273A Aruba Rap-109 Us Wireless Access Point View larger
Previous Next

HPE JW273A Aruba RAP‑109 (US) 802.11n Dual‑Band Remote Access Point

New

Dual‑band 802.11n Remote Access Point...

×




  • New

Detailed Specifications

HPE JW273A

Aruba RAP‑109 (US) 802.11n Dual‑Band Remote Access Point

The HPE Aruba  JW273A (RAP‑109 US) is a compact, dual-radio 802.11n Wireless Access Point designed for teleworkers,branch offices, or SMB remote locations. With support for up to 300 Mbps in both 2.4 GHz and 5 GHz bands, integrated omni‑directional antennas, and flexible Ethernet and USB connectivity, it enables secure VPN tunneling or Instant‑mode operation under Aruba Instant licensing. Ideal for organizations seeking budget-friendly, secure wireless access with centralized management and zero-touch provisioning through Aruba Activate.

Features

This Remote Access Point can operate in two modes: Aruba Instant mode for cloud-based local bridging, or as a remote AP (RAP) managed by a central Aruba controller, enabling secure site-to-site VPN tunnels. Automated RF management, ClientMatch client steering, and ARM channel/power optimization deliver enterprise-grade Wi-Fi experience. Integrated USB port supports 3G/4G failover (enabled when powered via PoE+). Accessories include stand, Ethernet cable, and console/frontend DC connector for alternative power.

Advanced Options

Designed for reliable branch or home deployments, this unit consumes around 12.5 W without USB active (up to 15 W with USB modem), and satisfies both IEEE 802.3af and PoE+ power sourcing. With robust security features—including TPM-based credential storage,

Product Key Features

  •  Dual‑band 2×2 MIMO, 802.11n, up to 300 Mbps per band

  •  Four internal omni‑directional antennas (5 dBi gain)

  •  One Gigabit PoE RJ‑45 port + one 10/100 Fast Ethernet port

  • Built-in ClientMatch and Aruba ARM for RF tuning

  •  USB port for cellular failover; console port for diagnostics

  •  Supports both Aruba Instant and Controller‑managed modes

Reliability & Performance

policy-based forwarding, and OpenDNS integration—the device delivers secure operations over wireless or wired links. Compact and fanless, RAP‑109 supports UL, CE, FCC certification and operates seamlessly across zero‑touch deployments using Aruba Activate. Although end-of-sale was announced in October 2017 (with support until May 1, 2023) it remains widely used in low-density remote access scenarios.

Key Features :

    • Dual‑band (2.4 GHz & 5 GHz), 2×2 MIMO, 802.11n

    • Up to 300 Mbps throughput per radio

    • Built-in 4 omni antennas (5 dBi)

    • 1 × Gigabit PoE uplink; 1 × 10/100 Fast Ethernet port

    • USB port for 3G/4G modem failover; console RJ‑45 port

    • Supports Instant or Controller‑managed RAP modes

    • ClientMatch, ARM, and RFProtect technologies

    • Integrated TPM for credential security

    • Mountable: desktop stand, wall or ceiling accessory

    • Certified: FCC, CE, UL; fanless silent operation

SpecificationDetails
Model Number JW273A (RAP-109 US)
Product Type Dual‑radio Remote Access Point (802.11n) Wireless Access Point
Wireless Radios 2.4 GHz & 5 GHz, 2×2 MIMO
Maximum Data Rate Up to 300 Mbps per band
Antennas 4 internal omni‑directional (5 dBi gain)
Ethernet Ports 1 × 1 GbE PoE (ENET0); 1 × 10/100 Mbps port (ENET1)
USB Port USB‑A for 3G/4G modem support
Console Port RJ‑45 serial console
Power Options 802.3af/at PoE, or 12 V DC adapter
Power Consumption ~12.5 W (no USB); ~15 W (with USB)
Management Modes Instant AP cluster or RAP controller‑managed mode
RF Features ClientMatch, ARM, RFProtect
VPN Capabilities Single tunnel to Aruba Mobility Controller
Operating Temp & Humidity 0 °C to +40 °C; 5–93% RH non‑condensing
Dimensions 160 × 43 × 160 mm (6.3″×1.7″×6.3″)
Weight 385 g (0.85 lb); with stand ~460 g
Certifications FCC, CE, CB, UL/IEC 60950, Wi‑Fi certified 802.11a/b/g/n
