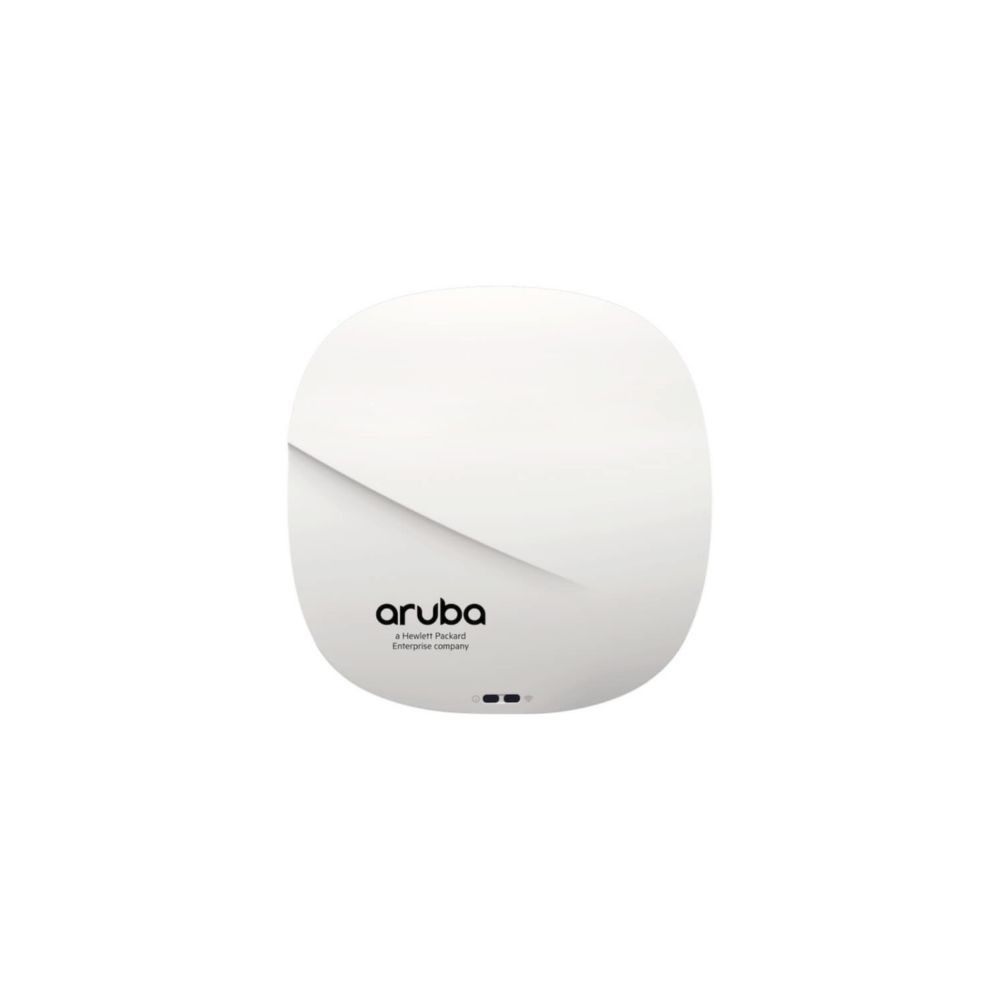

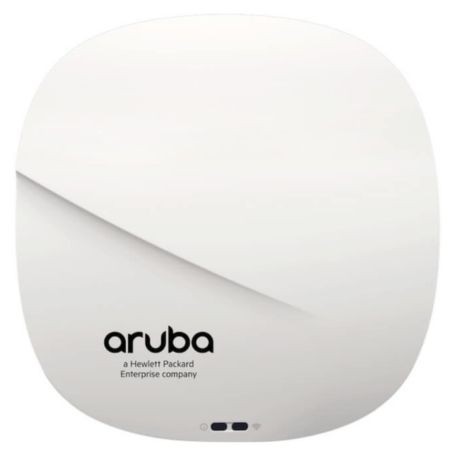

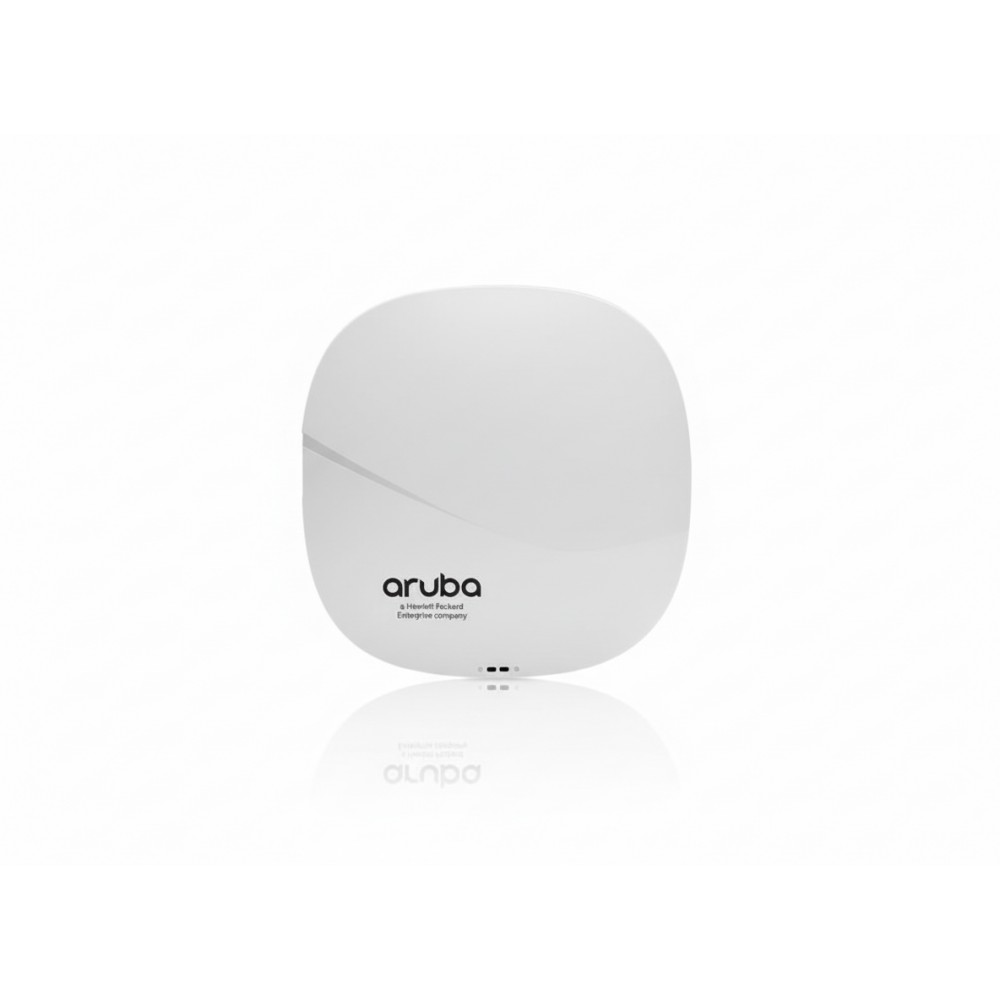

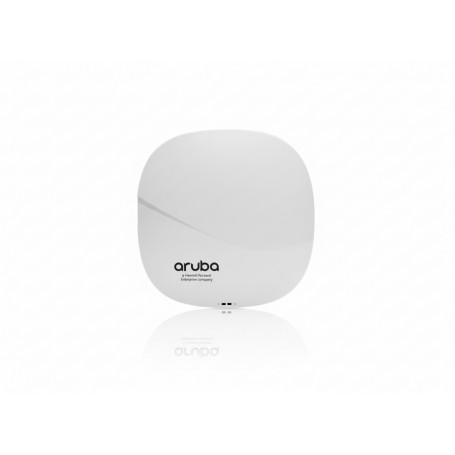

HPE Aruba JW187A AP-325 IEEE 802.11ac 2.50 Gbit/s Wireless Access Point

New

TAA/FIPS‑compliant indoor Wi‑Fi 5 AP with dual Gigabit ports, MU‑MIMO, 2.5 Gbps throughput
×




  • New

Detailed Specifications

HPE JW187A

Aruba AP‑325 (JW187A) IEEE 802.11ac 2.50 Gbps Dual‑Radio Indoor Wireless Access Point

The HPE Aruba JW187A AP‑325 is a high-performance, TAA/FIPS‑certified indoor dual‑radio Wireless Access Point delivering up to 2.5 Gbps aggregate throughput. Ideal for enterprise, public sector, and high-density environments, it supports 4×4:4 MU‑MIMO and advanced Arubafeatures—ensuring secure, scalable Wi‑Fi 5 connectivity.

Features

This Wave‑2 Wireless Access Point features dual 4×4 MIMO radios, providing aggregate speeds of 1,733 Mbps in the 5 GHz band plus 600 Mbps in 2.4 GHz. Integrated into a sleek ceiling- or wall-mount design, it includes eight down‑tilt omni-directional antennas optimized for horizontal ceiling layouts. With Aruba ClientMatch client steering, Beacon-based BLE, and DFS support, the AP intelligently manages dense client scenarios and co-channel RF interference.

Advanced Options

Two native Gigabit RJ‑45 ports provide network/data uplinks—supporting MDI/MDX auto-uplink, link aggregation to approach backhaul speeds close to 2 Gbps, and 802.3af/at PoE‑PD for deployment flexibility. A USB‑2 host port and RJ‑45 console provide local management/usability support.

Product Key Features

  •  Dual-radio 802.11ac Wave 2 with 4×4:4 MU‑MIMO in 5 GHz & 2.4 GHz

  •  Up to 1,733 Mbps (5 GHz) + 600 Mbps (2.4 GHz) for aggregate ~2.5 Gbps throughput

  •  Eight integrated down‑tilt omni‑directional antennas for optimal ceiling coverage

  •  Dual Gigabit Ethernet RJ‑45 ports supporting link‑aggregation and PoE‑PD

  •  Enhanced ClientMatch, Aruba Beacon Bluetooth LE, DFS, beamforming, ACC

  •  TAA/FIPS-compliant (JW187A) for secure government and enterprise use systems

Reliability & Performance

With a Mean Time Between Failures (MTBF) of ~740,000 hours (~84.5 years), the AP‑325 is built for long-term reliability. Power consumption peaks at ~18.5 W under 802.3at PoE, or ~13.5 W under 802.3af, with idle power as low as ~8 W. Dual Ethernet ports allow seamless redundancy or uplink trunking. Aruba ACC technology mitigates cellular interference, while thermal-efficient internal design ensures consistent performance.

Key Features :

  • Dual‑radio 802.11ac Wave 2 with 4×4:4 MU‑MIMO

  • Up to 1,733 Mbps @ 5 GHz + 600 Mbps @ 2.4 GHz (≈2.5 Gbps)

  • Eight integrated down‑tilt omni‑directional antennas

  • Dual 1000Base‑T RJ‑45 ports (PoE‑PD, link aggregation support)

  • USB‑2.0 Type A and RJ‑45 console ports

  • ClientMatch, Aruba Beacon BLE, DFS, MRC, LDPC, TxBF, STBC, CDD/CSD, ACC

  • TAA and FIPS-compliant model (JW187A)

  • Ceiling or wall mountable with included clip brackets

  • Lifetime warranty, RoHS, UL 2043 plenum rating certified

SpecificationDetails
Model Number JW187A / Aruba AP‑325
Product Type Dual‑radio Indoor Wireless Access Point ceiling-mountable
Wireless Standards IEEE 802.11a/b/g/n/ac (Wi‑Fi 5, Wave 2)
Radio Configuration 2.4 GHz & 5 GHz; 4×4:4 MU‑MIMO
Max Data Rate 5 GHz: 1,733 Mbps; 2.4 GHz: 600 Mbps; 2.5 Gbps total
Antennas 8 × internal down‑tilt omni (4.0 dBi @2.4 GHz, 4.7 dBi @5 GHz)
Ethernet Ports 2 × Gigabit RJ‑45 (PoE‑PD; link aggregation support)
USB Port 1 × USB 2.0 Type A host
Console Interface 1 × RJ‑45 console port
Power Input 802.3af/at PoE‑PD or 12 V DC adapter (sold separately)
Temperature Range 0 °C to 50 °C
Humidity 5 %–93 % non‑condensing
Dimensions 203 × 203 × 57 mm (~8″ × 8″ × 2.2″)
Weight ~0.95 kg (950 g)
MTBF ~739,935 hours (~84.5 years at 25 °C)
Clients per Radio / BSSID Up to 255 clients; 16 BSSIDs
Certifications TAA/FIPS, UL 2043, RoHS, Wi‑Fi Alliance
Firmware Support Aruba (controller-managed or Instant AP via Aruba Central)
