Detailed Specifications

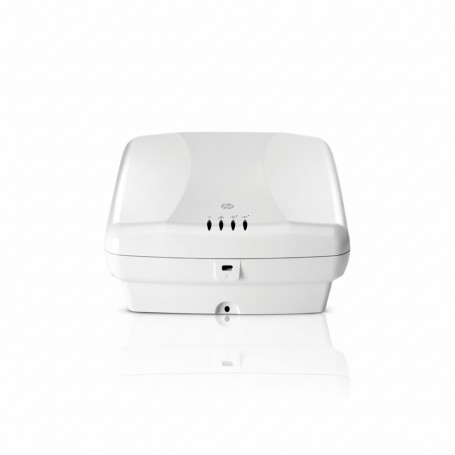

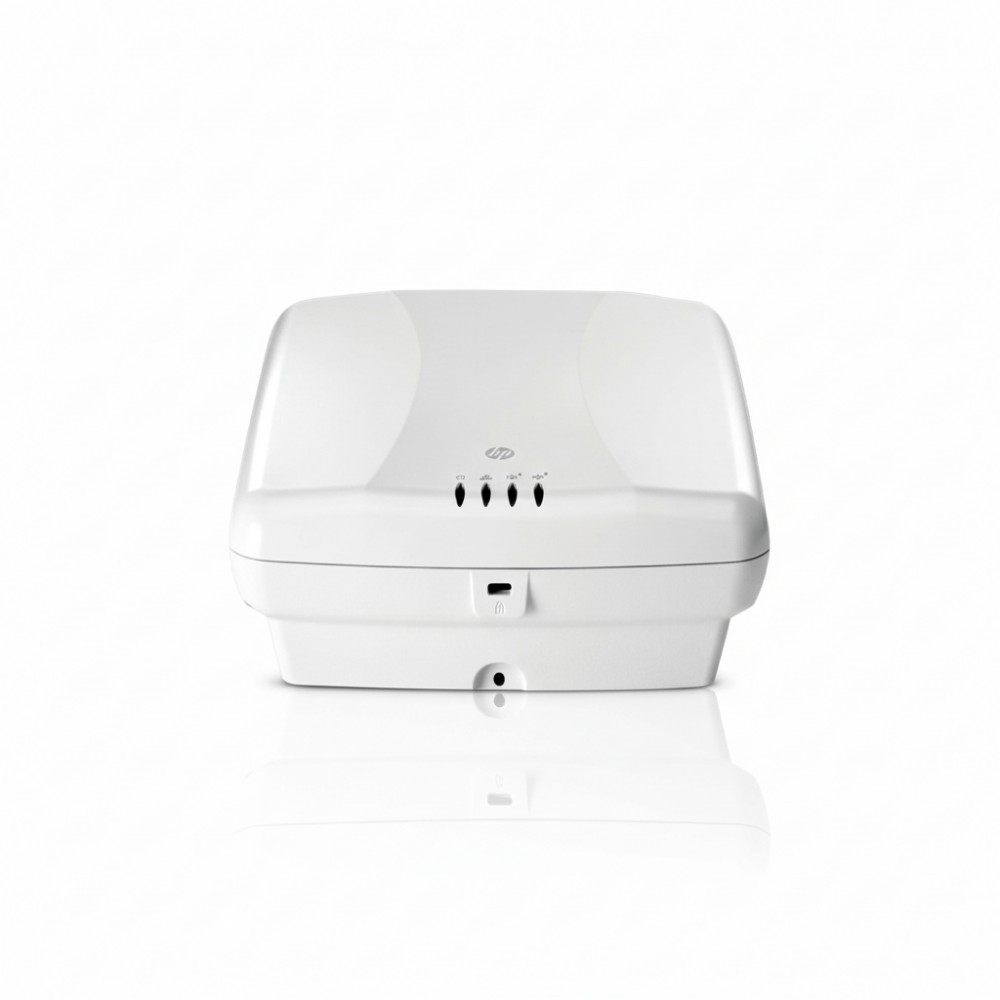

HP J9650A - E-MSM430 Dual Radio 802.11n Access Point
Overview :
The HP J9650A is a dual-band wireless access point designed for enterprise and campus deployments where concurrent 2.4 GHz and 5 GHz coverage is required. It supports the IEEE 802.11n standard, enabling higher data rates while maintaining backward compatibility with 802.11a/b/g clients. With a gigabit Ethernet interface and IEEE 802.3af PoE support, it simplifies installation in ceiling or wall-mounted positions without needing a dedicated power outlet. This model fits in medium-density indoor locations such as offices, classrooms or branch-wireless zones and integrates into the HP MSM wireless controller ecosystem or can operate standalone. Engineers deploying it will appreciate its dual radio architecture and embedded antenna array designed to handle voice, data and mobile-device access simultaneously.
Key Features :
Dual radios operating concurrently in 2.4 GHz and 5 GHz bands
Built-in six-element internal antenna array (dual-band)
Gigabit Ethernet (10/100/1000) port with PoE-af support
Supports autonomous or controller-managed (MSM) operation
Certified Wi-Fi a/b/g/n with legacy client compatibility
Specification :
| Specification | Value |
|---|
| Brand | HP |
| Part Number | J9650A |
| Product Type | Dual-Radio 802.11n Indoor Access Point |
| Wireless Standard | IEEE 802.11a/b/g/n |
| Max Data Rate | Up to 300 Mbps per radio (2-stream) |
| Antennas | Six internal dual-band (2.4/5 GHz) |
| Ethernet Interface | 1 x RJ-45 autosensing 10/100/1000 BASE-T |
| Power | IEEE 802.3af PoE, maximum 12.9 W |
| Dimensions (W×D×H) | 5.19 - × 6.16 - × 1.94 - |
| Weight | 0.73 lbs (approx.) |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Operating Humidity | 5 % to 95 % non-condensing |
| Regulatory Compliance | UL 2043, IEC 60950-1, EN 300,328, FCC Part 15, etc. |
| Mounting | Indoor, plenum-rated; includes ceiling-mount clips |
| Deployment Mode | Autonomous or controller-based (HP MSM) |
