Detailed Specifications

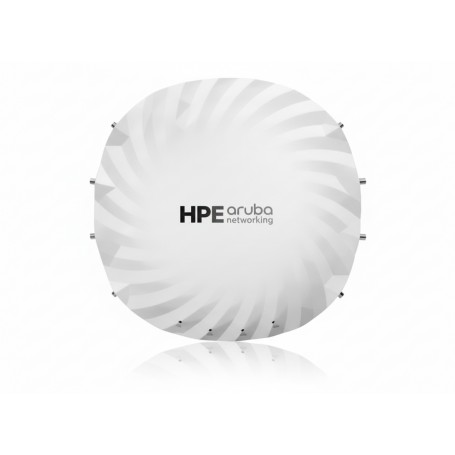

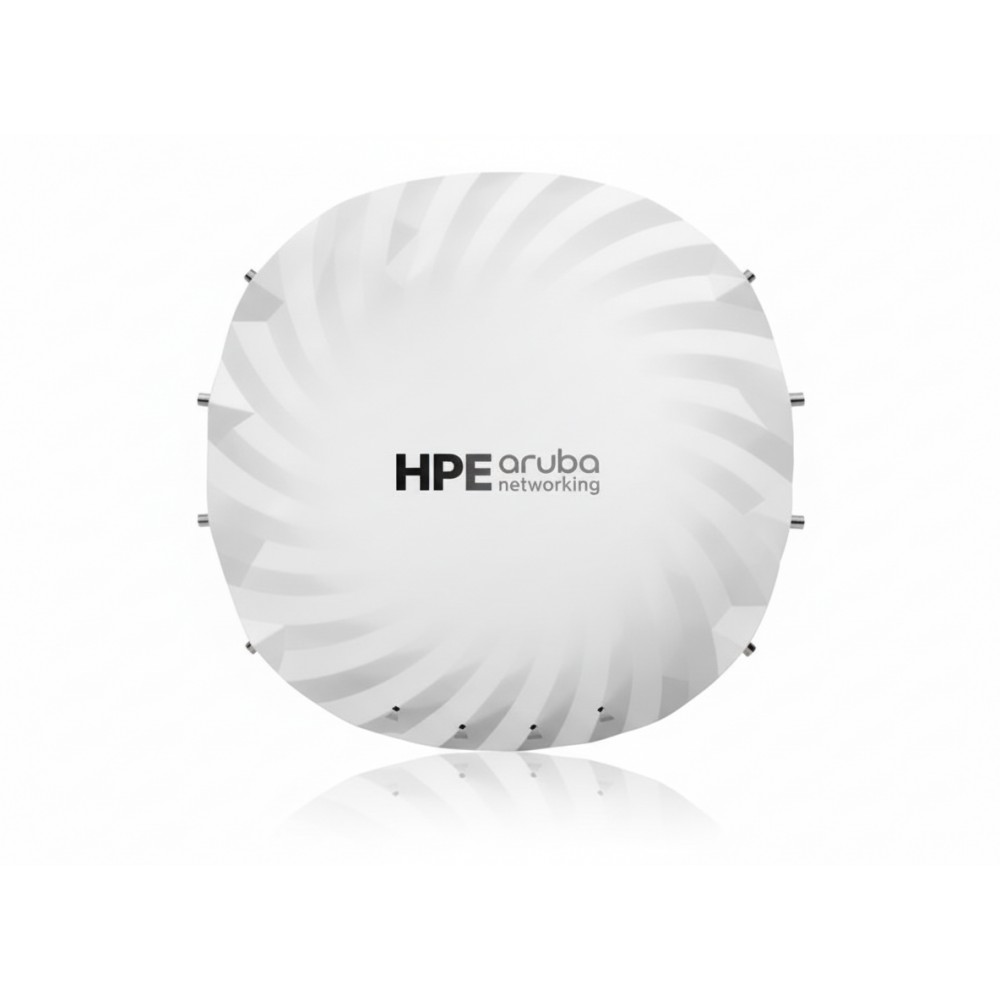

HPE S1G80A - Aruba AP-754 Tri-Radio 4×4 Wi-Fi 7 Access Point
Overview
The HPE S1G80A (Aruba AP-754) is a flagship indoor access point in the Aruba 750 Series, built for enterprise environments requiring ultra-high capacity, low latency, and future-ready Wi-Fi 7 throughput. It features three 4×4 MIMO radios on 2.4 GHz, 5 GHz, and 6 GHz, delivering multi-gigabit performance and advanced multi-link operation. Dual 10 GbE SmartRate ports provide redundancy and robust backhaul, while on-board Bluetooth 5.4 and Zigbee radios support IoT integration. A built-in GNSS receiver and barometric sensor enable precise indoor location services, and tri-band filtering helps minimize interference. Managed via Aruba's AOS-10 (or Aruba Central), this AP supports AI-driven RF optimization and zero-touch provisioning.
Key Features
Tri-radio 4×4 MIMO (2.4 / 5 / 6 GHz) × supports Wi-Fi 7 with full spatial streams for capacity and performance.
Dual 10 GbE SmartRate ports × robust uplink, hitless power/data failover.
Ultra-tri-band filtering × minimizes interference between 5 GHz and 6 GHz for clean performance.
Integrated IoT & location radios × Bluetooth 5.4, Zigbee, GNSS, and barometric sensor for IoT and mapping.
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE / Aruba Networking |
| Part Number | S1G80A |
| Product Type | Indoor Wireless Access Point |
| Wi-Fi Standard | Wi-Fi 7 (IEEE 802.11be) |
| Radio Configuration | 3 radios × 4×4 MIMO in 2.4 GHz, 5 GHz & 6 GHz |
| Max Aggregate Throughput | 18.7 Gbps (tri-band); 28.8 Gbps in optional dual-6 GHz mode |
| Ethernet Ports | 2 × 10 GbE SmartRate (PoE-PD) |
| IoT Radios | Bluetooth 5.4 & IEEE 802.15.4 / Zigbee |
| Location Sensors | GNSS receiver + Barometric sensor |
| Security | WPA3, Enhanced Open, MACsec, TPM |
| Power Options | 12 V DC or PoE (802.3af/at/bt) |
| Operating Temperature | 0 °C to 50 °C |
