Detailed Specifications

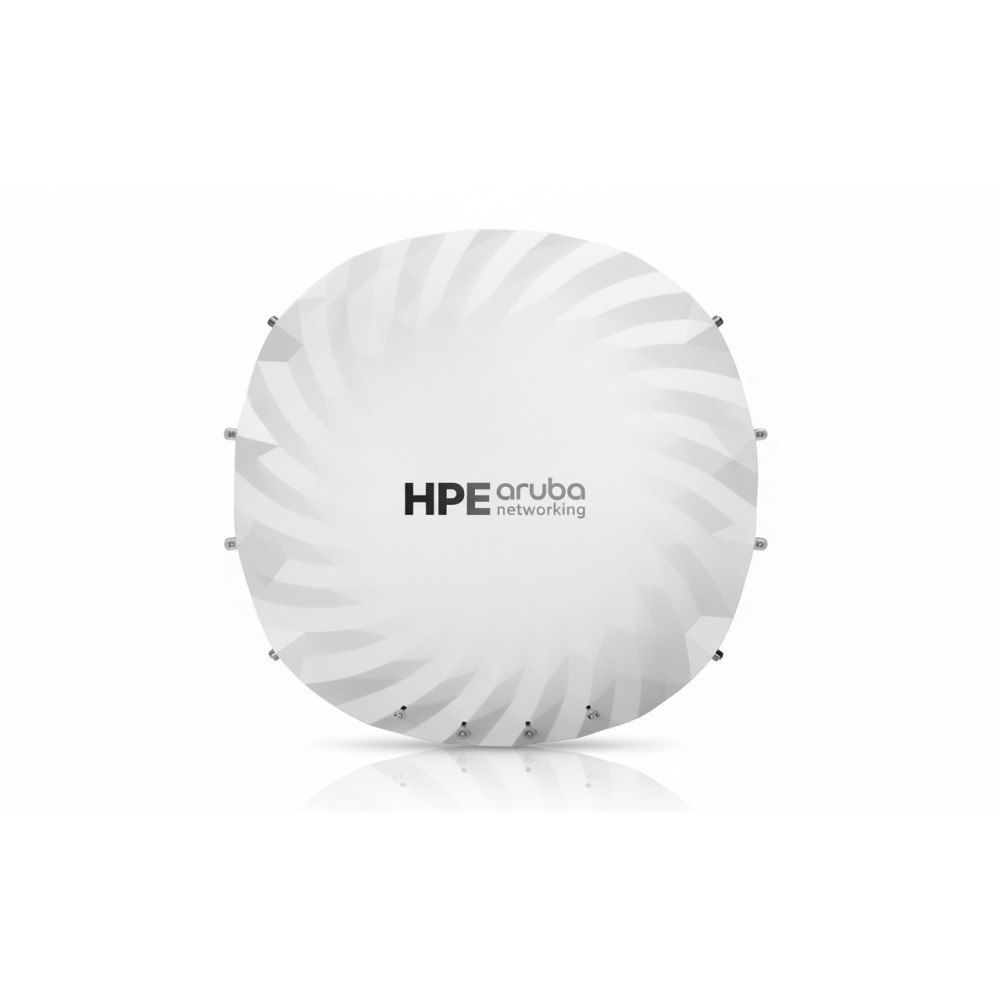

HPE S1G75A - Aruba AP-754 Tri-Radio 4×4 Wi-Fi 7 Access Point
Overview
The HPE S1G75A (Aruba AP-754) is a high-performance indoor access point designed for ultra-dense, high-capacity environments like enterprise campuses, large offices, or data-rich areas. It supports three radios (2.4 GHz, 5 GHz, 6 GHz) with 4×4 MIMO on each, delivering true Wi-Fi 7 performance with features like multi-link operation and 4K QAM. Dual 10 GbE SmartRate ports provide redundant, high-throughput backhaul, and the AP supports MACsec to secure wired traffic. Also built in are IoT radios (Bluetooth and Zigbee), a GNSS receiver plus barometric sensor for precise indoor location, and tri-band filtering to minimize interference. It's managed via Aruba's AOS-10 or Aruba Central, enabling AI-driven RF tuning and zero-touch provisioning.
Key Features
Tri-band 4×4 MIMO (2.4 / 5 / 6 GHz) × maximizes capacity and supports Wi-Fi 7.
Optional dual-6 GHz mode × boosts peak throughput when needed.
Dual 10 GbE SmartRate ports × resilient, high-speed wired uplinks with PoE redundancy.
Built-in IoT + location radios × includes Bluetooth 5.4, Zigbee, GNSS, and barometric sensor.
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE / Aruba Networking |
| Part Number | S1G75A |
| Product Type | Indoor Wireless Access Point |
| Wi-Fi Standard | Wi-Fi 7 (IEEE 802.11be) |
| Radio Configuration | 3 radios × 4×4 MIMO on 2.4 GHz, 5 GHz, and 6 GHz |
| Max Aggregate Throughput | ~18.7 Gbps (tri-band), up to 28.8 Gbps in dual-6 GHz mode |
| Ethernet Ports | 2 × 10 GbE SmartRate (PoE-PD, supporting 802.3af/at/bt) |
| IoT Radios | Bluetooth 5.4, IEEE 802.15.4 / Zigbee |
| Location Sensors | GNSS receiver, barometric sensor for indoor mapping |
| Security | WPA3, Enhanced Open, MACsec, TPM × enterprise-grade protection |
| Management / OS | Aruba AOS-10, Aruba Central (cloud-managed) |
| Power Options | 12 V DC or PoE (class 3-6) |
| Operating Temperature | 0 °C to 50 °C, 5-95% RH non-condensing |
