Detailed Specifications

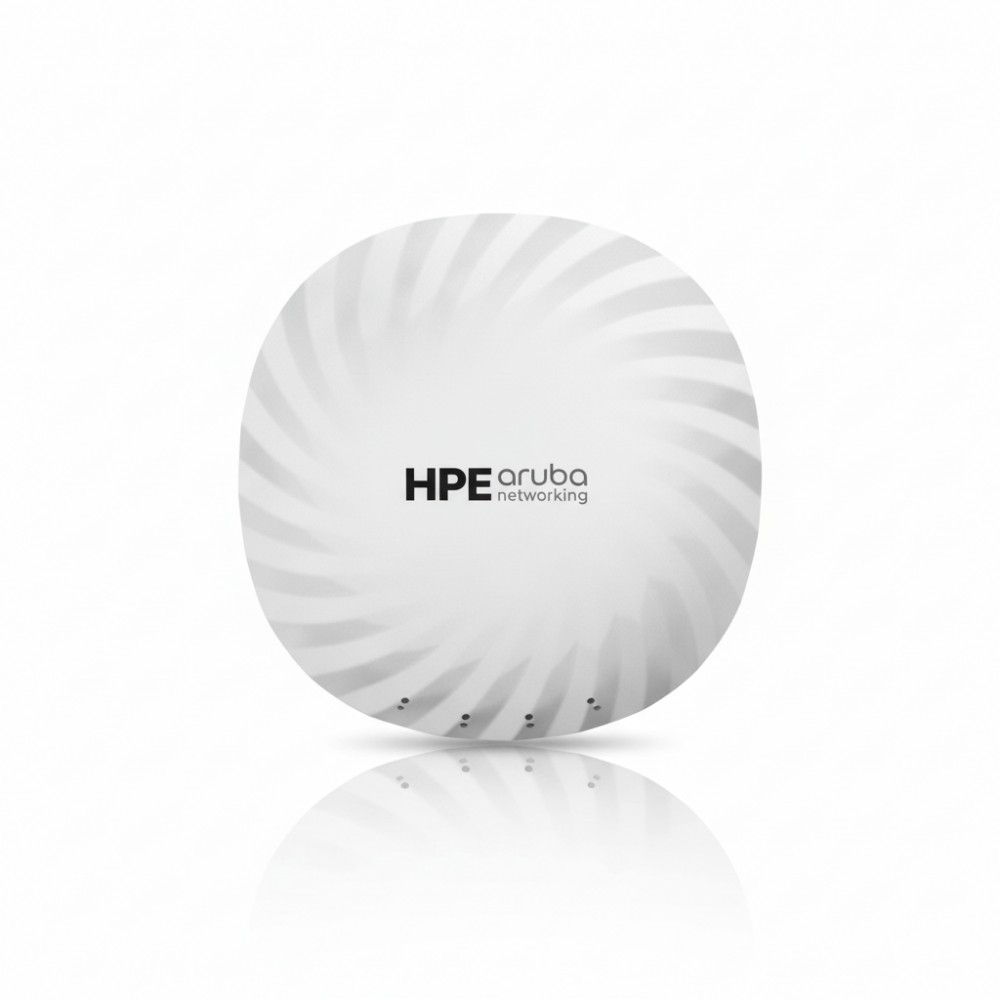

HPE S1G90A - Aruba AP-755 Tri-Radio 4×4 Wi-Fi 7 Access Point
Overview
The HPE S1G90A (Aruba AP-755) is a flagship indoor wireless access point targeted at high-density enterprise environments. It features tri-radio 4×4 MIMO for 2.4 GHz, 5 GHz, and 6 GHz bands × delivering full Wi-Fi 7 capability for demanding deployments like large offices, hospitality, and campuses. With dual 10 Gb Ethernet ports, it supports high-throughput backhaul, while Ultra-Tri-Band filtering mitigates interference to maximize 6 GHz performance. On the management side, it runs Aruba's AOS-10 WLAN OS, enabling advanced features, automation, and integration with Aruba Central.
Key Features
Tri-radio 4×4 MIMO (2.4 / 5 / 6 GHz) × ensures maximum capacity across all bands.
Ultra-Tri-Band filtering × reduces interference in the 6 GHz band for better performance.
HPE S1G90A ArubaDual 10 Gb Ethernet ports × supports high-bandwidth wired uplinks or link aggregation.
Wi-Fi 7 (802.11be) × future-proof access point with very high aggregate throughput.
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE / Aruba Networking |
| Part Number | S1G90A |
| Product Type | Indoor Wireless Access Point |
| Wi-Fi Standard | Wi-Fi 7 (IEEE 802.11be) |
| Radio Configuration | 3 radios × 4×4 MIMO (2.4 GHz, 5 GHz, 6 GHz) |
| Max Theoretical Throughput | Up to ~18.7 Gbps aggregate (depending on mode) |
| Ethernet Uplinks | 2 × 10 GbE RJ-45 |
| Power | PoE+ (supports 802.3at) |
| Management / OS | Aruba AOS-10 with integration into Aruba Central |
| Security | WPA3, WPA2, role-based access, secure boot |
| Dimensions & Weight | ~240 × 240 × 57 mm (typical for AP-755) |
| Warranty | Limited lifetime (as per Aruba enterprise AP standard) |
