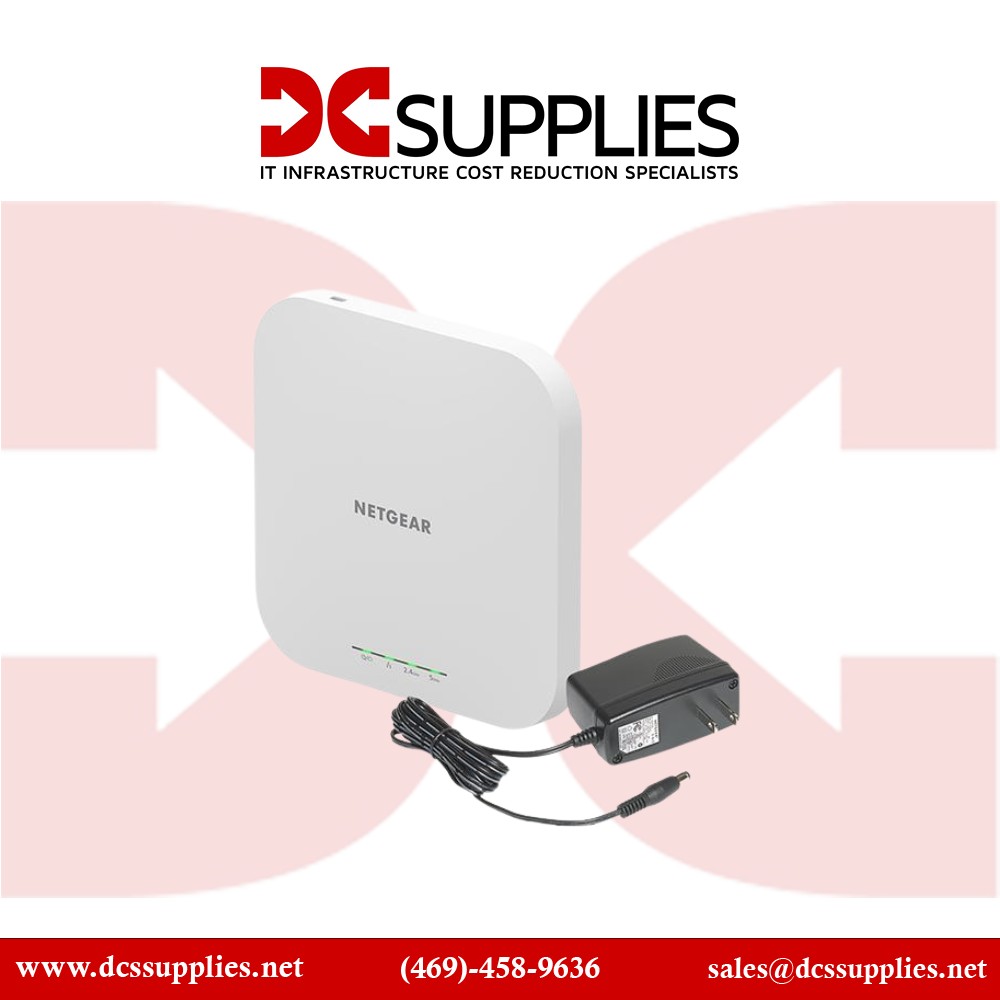

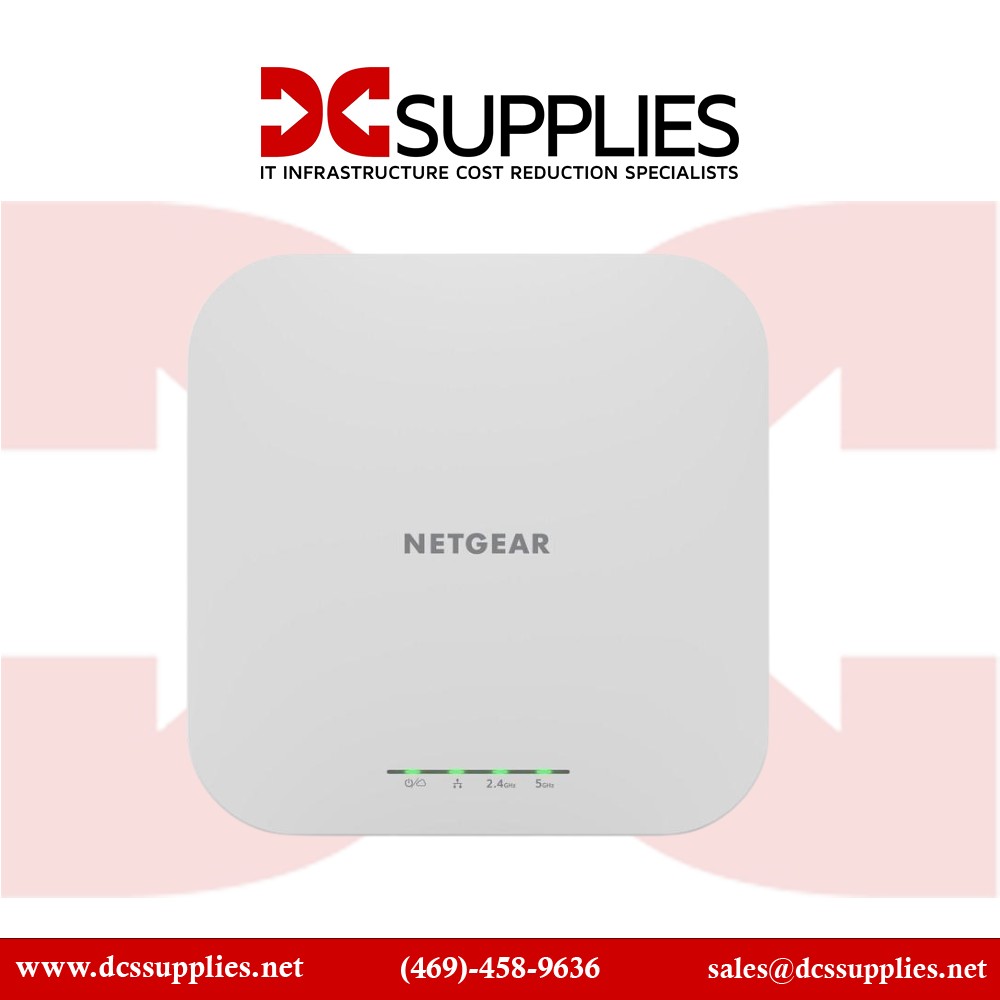

Netgear WAX615-100CNS Dual Band Wireless Access Point View larger

NETGEAR WAX615-100CNS AX3000 Insight Managed Wireless Access Point

New

Dual-Band AX3000 Insight AP
×




  • New

Detailed Specifications

NETGEAR WAX615-100CNS – AX3000 Insight Managed Access Point

Overview

The NETGEAR WAX615-100CNS is a dual-band WiFi 6 (802.11ax) access point managed via NETGEAR Insight, intended for SMB, hospitality, or campus deployments requiring scalable, high-performance wireless. It features a 2×2 radio on both 2.4 GHz and 5 GHz bands delivering up to ~3 Gbps aggregate throughput. It includes a 2.5 GbE PoE+ port for high-speed backhaul and supports wireless mesh for flexible expansion. It fits into ceiling or wall mounts and integrates with Insight-managed switches and APs.

Key Features

  • AX3000 dual-band 2×2 radios

  • 2.5 GbE PoE+ multi-gig port

  • Mesh and backhaul capability

  • Managed via NETGEAR Insight cloud/web

SpecificationDetails
Brand NETGEAR
Part Number WAX615-100CNS
Product Type Insight Managed Dual-Band WiFi 6 Access Point
WiFi Standard IEEE 802.11ax (WiFi 6)
Radio Configuration 2×2 for 2.4 GHz + 2×2 for 5 GHz
Max Aggregate Throughput 3 Gbps (600 Mbps + 2,400 Mbps)
Ethernet Port 1 × 100/1000/2.5GBASE-T PoE+ (802.3at)
Power over Ethernet IEEE 802.3at PoE+ (approx. 15.3 W)
Maximum Clients Up to 256 clients, ~60 concurrent users
Channelization 5 GHz: 20/40/80/160 MHz, 2.4 GHz: 20/40 MHz
Antenna Gain (internal) 2.9 dBi (2.4 GHz), 2.8 dBi (5 GHz)
Mounting Options Ceiling or wall mount kit included
