Detailed Specifications

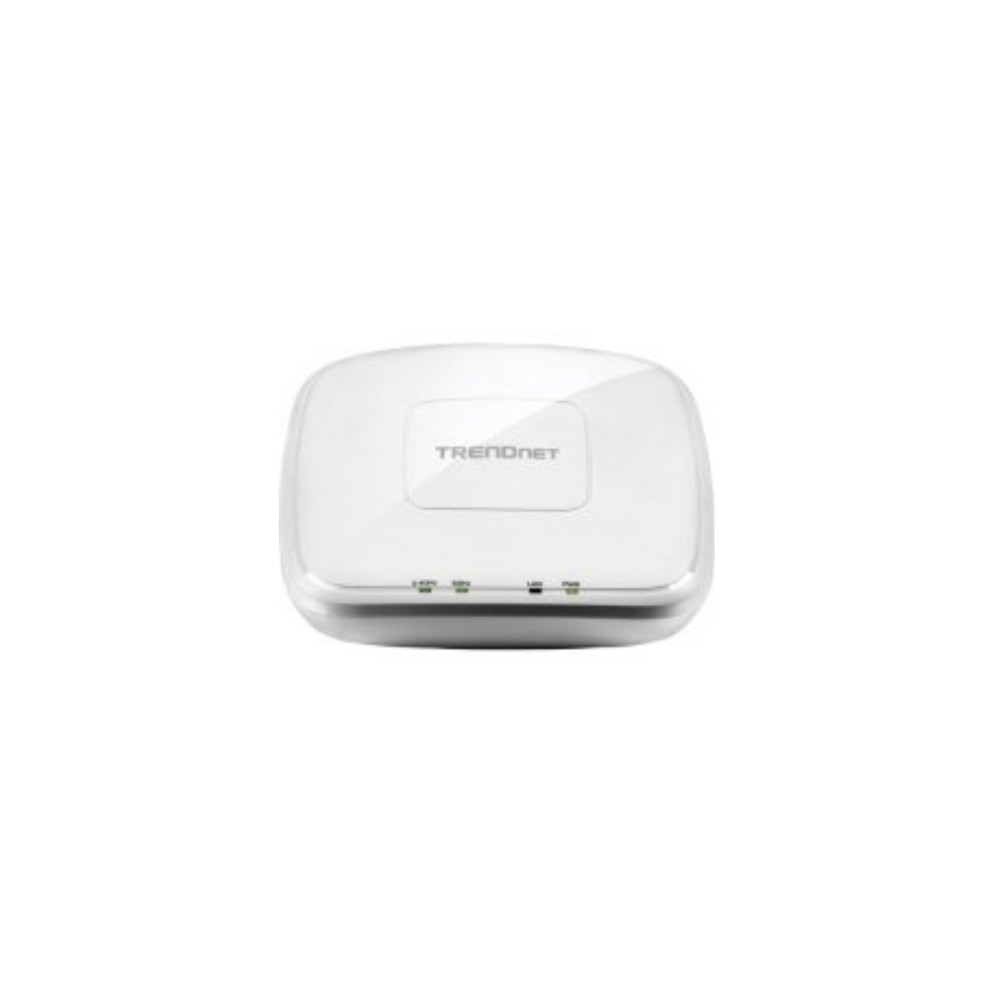

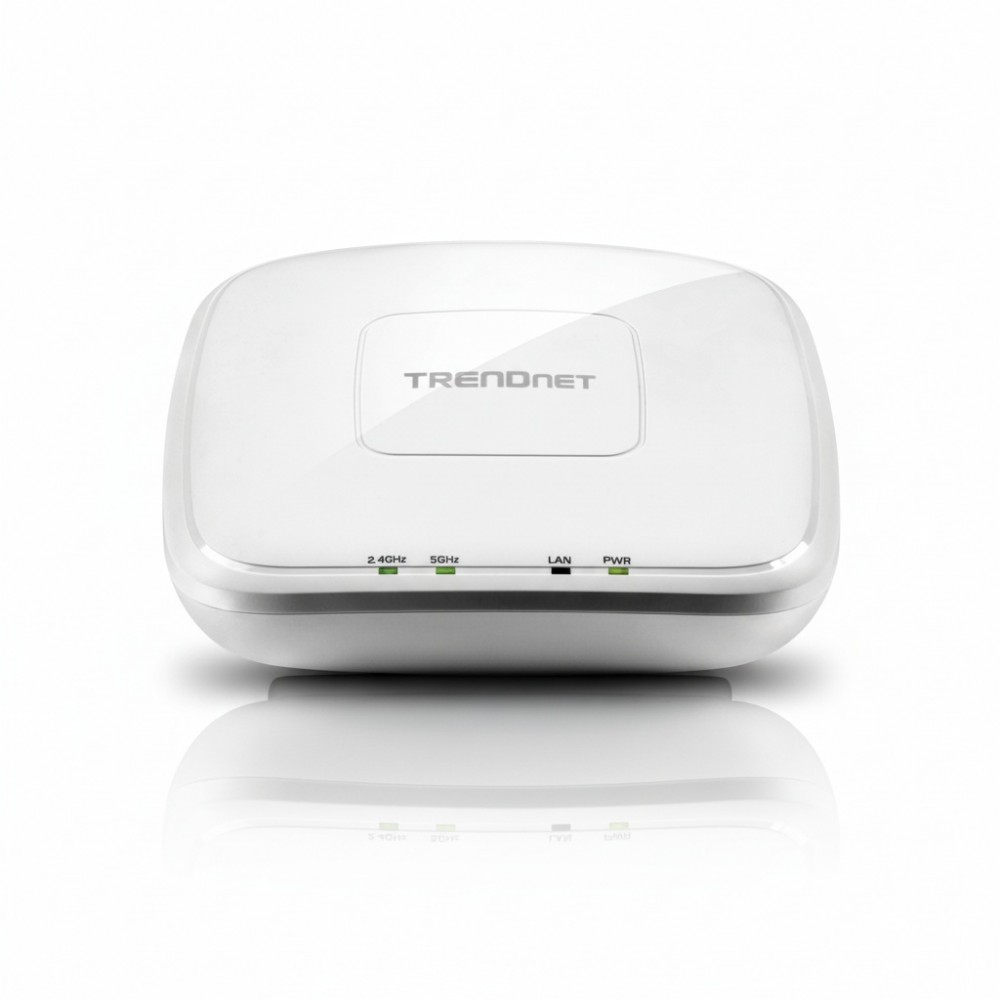

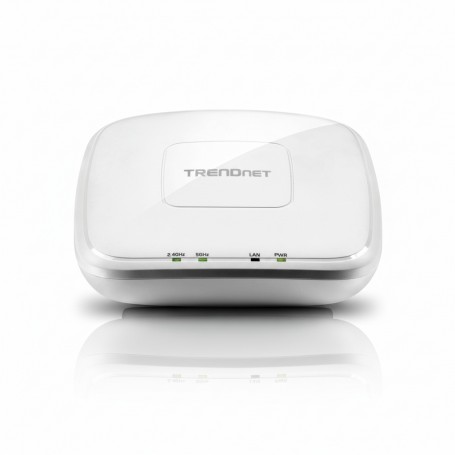

TRENDnet TEW-821DAP - AC1200 Dual-Band PoE AP
Overview :
The TRENDnet TEW-821DAP is a ceiling-or-wall mountable indoor access point built for dense office or enterprise deployments. It supports both 2.4 GHz (300 Mbps) and 5 GHz (867 Mbps) bands concurrently, offering AC1200 throughput for mixed-device environments. With multiple operating modes × including Access Point, Client, WDS Bridge/AP/Station, and Repeater × it adapts to a variety of networking topologies and legacy infrastructure. Power over Ethernet (PoE) simplifies installation, eliminating the need for a separate power source in ceilings or remote locations. The low-profile housing blends into professional environments, and a mounting plate with cable-guard helps secure cabling neatly. For management, TRENDnet provides a Windows-based utility to configure and monitor multiple units, easing large-scale deployments. Additional features include advanced access control, QoS, band steering, captive portal support, and IPv6 compatibility, making it suitable for enterprise Wi-Fi, hotspot, or managed service deployments.
Key Features
Concurrent 867 Mbps AC + 300 Mbps N
Multiple modes (AP, WDS, Repeater, Bridge)
Gigabit PoE for data and power
Up to 8 SSIDs per band (16 total)
Band steering for load balancing
Specification :
| Specification | Value |
|---|
| Brand | TRENDnet |
| Part Number | TEW-821DAP |
| Product Type | AC1200 Dual-Band PoE Access Point |
| Wireless Standards | 802.11a/b/g/n/ac (Wave 1) |
| Maximum Wireless Rate | 867 Mbps (5 GHz) + 300 Mbps (2.4 GHz) |
| MIMO Configuration | 2×2:2 (both 2.4 GHz and 5 GHz) |
| SSIDs | Up to 8 per band (16 total) |
| Frequency Range | 2.412-2.472 GHz (2.4 GHz), 5.180-5.8525 GHz (5 GHz) |
| Ethernet Interface | 1 × Gigabit RJ-45 PoE port |
| Power Input / Consumption | 12 V DC, 1 A; max 9.6 W |
| Operating Temperature | 0-40 °C (32-104 °F) |
| Humidity | Up to 95% non-condensing |
| Antenna Gain | 2.4 GHz: 2 × ~3 dBi, 5 GHz: 2 × 4 dBi (internal) |
| Transmit Power | Varies by mode: e.g. 802.11ac up to 15 dBm (FCC) |
| Modulation | DSSS (DBPSK/DQPSK/CCK), OFDM (up to 256-QAM) |
| Security | WEP, WPA, WPA2-PSK, WPA2-RADIUS; MAC filtering |
| Management | Windows-based utility, SNMP v1/v3, captive portal |
| Dimensions (L × W × H) | 7.30″ × 7.30″ × 1.80″ |
| Weight | ~0.9 lb (14.4 oz) (~408 g) |
| Warranty | 3-year limited |
