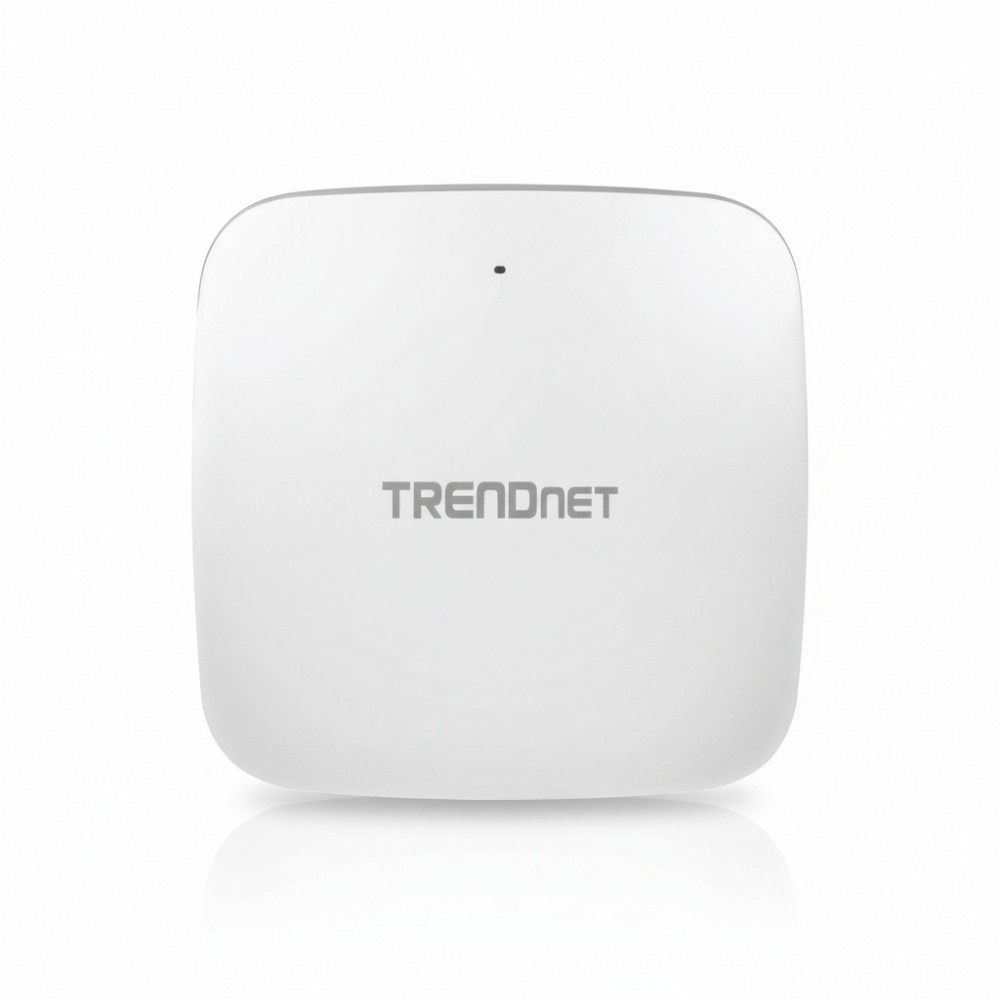

TRENDnet TEW-923DAP AX3000 Dual Band WiFi 6 PoE+ Access Point View larger

TRENDnet TEW-923DAP AX3000 Dual Band WiFi 6 PoE+ Access Point

New

AX3000 Wi-Fi 6 PoE+ Access Point

×




  • New

Detailed Specifications

TRENDnet TEW-923DAP AX3000 Wi-Fi 6 PoE+ Access Point

Overview :

The TRENDnet TEW-923DAP is a high-performance, dual-band Wi-Fi 6 access point designed for data-intensive wireless environments. Engineered to support the latest 802.11ax standard, this device provides a robust solution for businesses looking to upgrade their wireless infrastructure to handle a high density of connected clients and demanding applications. It is an ideal access point for deployment in offices, schools, and retail locations where reliable, high-speed wireless connectivity is critical for daily operations. This access point leverages Wi-Fi 6 technologies such as OFDMA and MU-MIMO to improve network efficiency and performance in congested areas. These features allow for simultaneous data transmission to multiple devices, significantly reducing latency and boosting overall throughput. With combined speeds up to 2402Mbps on the 5GHz band and 573Mbps on the 2.4GHz band, it provides the bandwidth necessary for smooth 4K video streaming, uninterrupted VoIP calls, and fast file transfers across the network. Installation is simplified with its 2.5GBASE-T PoE+ port, which allows for both power and data delivery over a single Ethernet cable. The TEW-923DAP features a low-profile housing with a wall and ceiling mounting plate, enabling discreet placement that blends into most environments. For centralized administration, the access point can be remotely managed via the TRENDnet Hive cloud platform, providing IT teams with the tools to configure, monitor, and troubleshoot the network from a single interface.

Key Features

  • AX3000 Wi-Fi 6 delivers speeds up to 2975Mbps.
  • 2.5GBASE-T PoE+ port simplifies installation.
  • OFDMA and MU-MIMO for high-density environments.
  • Supports Access Point, Repeater, and Mesh modes.
  • WPA3 encryption for enhanced network security.

Specifications

SpecificationValue
Brand TRENDnet
Part Number TEW-923DAP
Product Type Wireless Access Point
Wi-Fi Standards IEEE 802.11a/b/g/n/ac/ax
Frequency Bands 2.4 GHz, 5 GHz
Maximum Data Rate 2402Mbps (5GHz) + 573Mbps (2.4GHz)
Ethernet Port 1 x 2.5GBASE-T PoE+ LAN
Power Method 802.3at PoE+
Max Power Consumption 17.4 W
Antennas 2x2 Internal
Height 1.18 in.
Width 6.3 in.
Depth 6.3 in.
Weight 0.84 lbs.
