Detailed Specifications

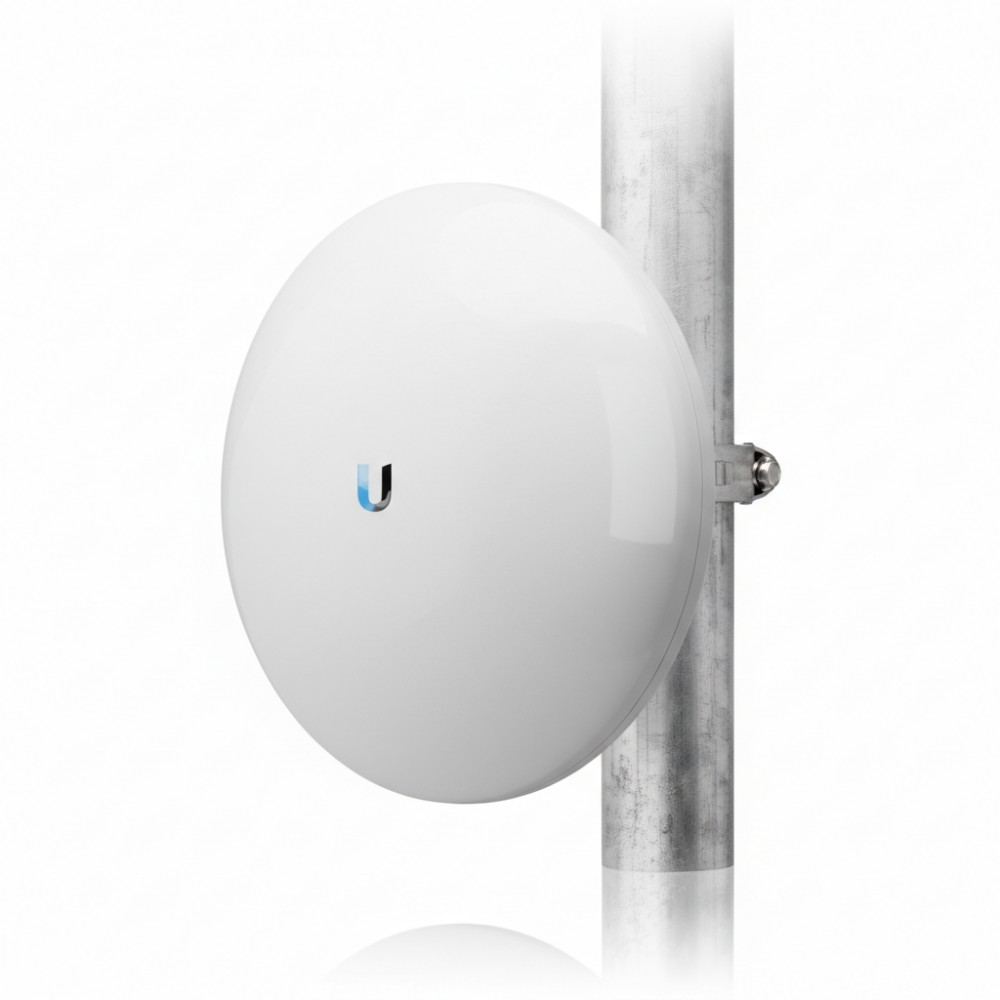

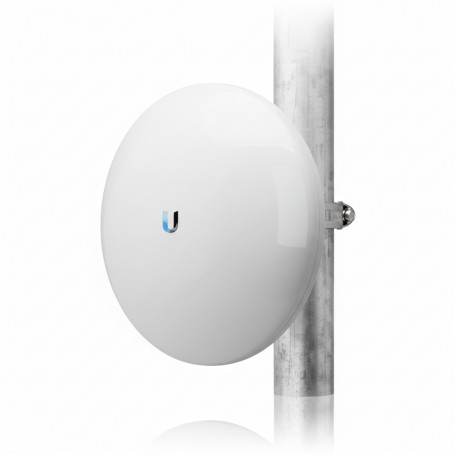

Ubiquiti NBE-2AC-13-US 2 4 GHz airMAX AC Bridge
Overview
The Ubiquiti NBE‑2AC‑13‑US is an outdoor 2.4 GHz airMAX AC wireless CPE designed for long‑range point‑to‑point or point‑to‑multi‑point links in outdoor networks. It combines a high‑gain 13 dBi directional antenna and airMAX ac radio into a compact weather‑ready unit for reliable RF delivery. The device uses a single Gigabit Ethernet port with passive PoE for data and power over one cable, and includes a pole‑mount kit for straightforward installation. It fits backhaul or CPE roles on campuses, rural sites, or remote locations needing resilient outdoor wireless connectivity.
Key Features
13 dBi directional 2.4 GHz antenna
Outdoor UV‑stabilized rugged housing
Passive PoE with Gigabit RJ45
Integrated signal strength LEDs
Technical Specifications
| Specification | Value |
|---|
| Brand | Ubiquiti |
| Part Number | NBE‑2AC‑13‑US |
| Product Type | 2.4 GHz Outdoor airMAX AC Bridge |
| Frequency Range (USA) | 2412–2462 MHz |
| Antenna Gain | 13 dBi |
| Networking Interface | 1× 10/100/1000 MbE RJ45 |
| Power Method | Passive PoE (Pairs 4,5+; 7,8 return) |
| Power Supply | 24 V, 0.5 A PoE adapter (included) |
| Max Power Consumption | ~7.5 W |
| Wind Loading | 45.4 N @ 200 km/h |
| Wind Survivability | 200 km/h |
| Mounting | Pole mount kit included |
| Enclosure | Outdoor UV‑stabilized plastic |
| ESD/EMP Protection | ±24 kV (air/contact) |
| Operating Temp | ‑40 to 80 °C |
| Operating Humidity | 5 % to 95 % non‑condensing |
