Detailed Specifications

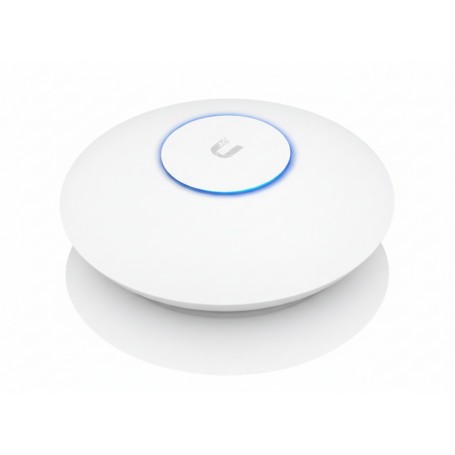

Ubiquiti Networks UAP-AC-HD-US Wave 2 Enterprise Wi-Fi Access Point
Overview :
The UAP-AC-HD-US Wave 2 Enterprise Wi-Fi Access Point from Ubiquiti Networks is a scalable enterprise access point solution designed to be easily deployed and managed. It supports the 802.11ac Wave 2 Wi-Fi standard with speeds of up to 1733 Mbps in the 5 GHz radio band, and up to 800 Mbps in the 2.4 GHz radio band. The Wi-Fi system offers simultaneous dual-band operation with 4x4 MIMO technology for each band. Install the UAP-AC-HD-US access point inside or outdoors (covered) using the included wall or ceiling mount kits. Once installed, the dual PoE compliant Gigabit Ethernet ports make it easy to connect the AP to the network without the need for a standalone power source.
The Wi-Fi system includes UniFi Controller software that can be installed on a PC, Mac, or Linux machine within the network, and is easily accessible through a standard Web browser. Using the UniFi Controller software, an Enterprise Wi-Fi network can be quickly configured and administered, without any special training. Real-time status, automatic UAP device detection, map loading, and advanced security options are all seamlessly integrated in the system.
Specifications :
| Product Name |
UniFi AC HD Access Point |
| Manufacturer Part Number |
UAP-AC-HD-US |
| Product Type |
Wireless Access Point |
| Frequency Band |
2.40 GHz
5 GHz
|
| Wireless LAN Standard |
IEEE 802.11ac |
| Ethernet Technology |
Gigabit Ethernet |
| USB |
No |
| Number of Network (RJ-45) Ports |
2 |
| Product Family |
UniFi AC HD |
| PoE (RJ-45) Port |
No |
| Wireless Transmission Speed |
1.69 Gbit/s |
| Form Factor |
Ceiling Mountable
Wall Mountable
|
| HDMI |
No |
| VGA |
No |
| Powerline |
No |
| Management Port |
No |
| MIMO Technology |
Yes |
| Beamforming Technology |
Yes |
| PoE PD Port |
Yes |
| Diameter |
8.7" |
| Country of Origin |
China |
| Height |
1.9" |
| Product Model |
UAP-AC-HD |
| Product Line |
UniFi AC HD |
| Limited Warranty |
1 Year |
