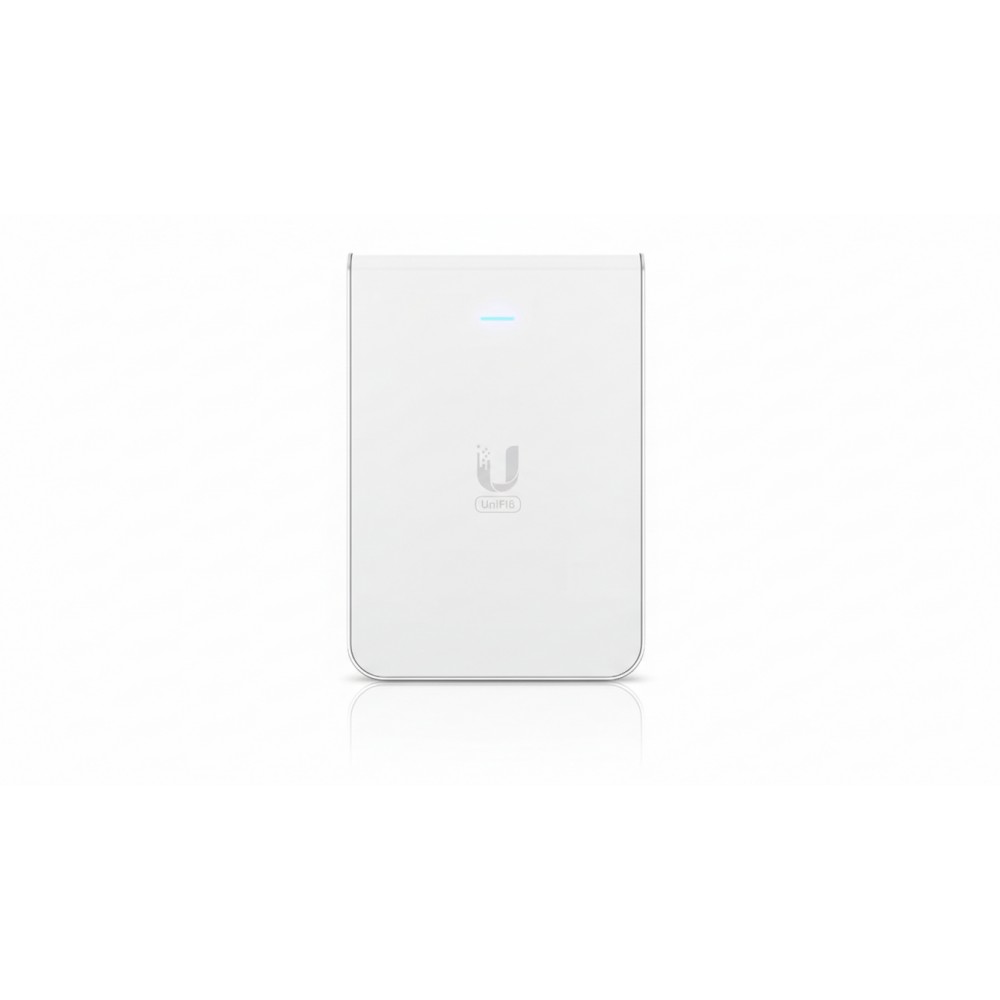

Ubiquiti U6-IW-US Access Point WiFi 6 In-Wall

New

Discreet in-wall Wi-Fi 6 access point with 4-port PoE switch
×




  • New

Detailed Specifications

Ubiquiti U6-IW-US

UniFi 6 In-Wall Wi-Fi 6 Access Point & Gigabit PoE Switch - Sleek In-Wall Connectivity Solution

The Ubiquiti U6-IW-US is a Wi-Fi 6 in-wall access point that seamlessly blends into professional environments while delivering high-performance wireless coverage. Designed for offices, hotels, and campus deployments, it features a dual-band 802.11ax radio offering up to 5.3 Gbps of total throughput. With an integrated 4-port Gigabit Ethernet switch (one with PoE output), it also doubles as a compact wired hub for desktop devices or IP phones.

Features :

This innovative in-wall access point features dual-band Wi-Fi 6 speeds up to 5.3 Gbps, with 4x4 MU-MIMO and OFDMA technologies supporting 300+ clients. Its in-wall design with internal antennas provides a discreet installation that replaces standard wall plates. The device includes 4 x Gigabit Ethernet ports with 1 x PoE out (15.4W), allowing direct connection of devices like VoIP phones without additional power sources. The rear uplink port is powered via PoE, making cable routing clean and efficient while maintaining a professional appearance.

Advanced Options :

Managed through the UniFi Network Application, the U6-IW provides centralized configuration, deep analytics, firmware updates, and user management across all your UniFi devices. It delivers strong 5 GHz (4.8 Gbps) and 2.4 GHz (573 Mbps) performance, ensuring smooth experiences for video conferencing, VoIP, and guest Wi-Fi usage. Security is enterprise-grade with full support for WPA3, VLANs, and multiple SSIDs for segmented network access. Ideal for retrofitting existing Ethernet wall outlets, it mounts directly into standard wall boxes for an elegant and non-intrusive installation that enhances both connectivity and aesthetics.

Product Key Features

  • Dual-band Wi-Fi 6 speeds up to 5.3 Gbps
  • In-wall design with internal antennas
  • 4 x Gigabit Ethernet ports with 1 x PoE out
  • Supports 300+ clients with MU-MIMO and OFDMA
  • Managed via UniFi Network Application
  • Rear uplink port powered via PoE

Reliability & Performance :

The U6-IW-US delivers exceptional reliability and performance in a compact form factor. Its Wi-Fi 6 technology efficiently handles high-density environments with advanced features like MU-MIMO and OFDMA, ensuring stable connections even with numerous concurrent devices. The integrated switch functionality provides both wireless and wired connectivity from a single wall outlet, reducing cable clutter while maintaining high-speed data transfer. With enterprise-grade security protocols and low power consumption (13.5W max), this access point is designed for continuous operation in professional settings. The internal antennas are optimized for consistent coverage patterns, making it ideal for hotel rooms, offices, and dormitories where both aesthetics and performance are essential.

Key Features :

  • Wi-Fi 6 (802.11ax) dual-band access point
  • Up to 5.3 Gbps total wireless throughput
  • In-wall form factor with internal antennas
  • 4 x Gigabit Ethernet ports, 1 x PoE out (15.4W)
  • Rear uplink port supports PoE input (802.3af)
  • Supports over 300 concurrent devices
  • WPA3 security with multiple SSID support
  • Managed via UniFi Network Application

Specifications :

SpecificationDetails
Model Number U6-IW-US
Type In-Wall Wi-Fi 6 Access Point & Switch
Wireless Standard IEEE 802.11ax (Wi-Fi 6)
Bands Dual-Band (2.4 GHz / 5 GHz)
Max Wireless Speed 5.3 Gbps (4.8 Gbps @ 5GHz + 573 Mbps @ 2.4GHz)
MIMO/OFDMA Yes (4x4 MU-MIMO, OFDMA)
Ethernet Ports 4 x GbE (1 x PoE Out), 1 x GbE Uplink
PoE Input Yes, via rear uplink port (802.3af)
PoE Output Yes, 1 port (Max 15.4W)
Security WPA, WPA2, WPA3, WPA-PSK, WPA-ENT
Mounting Wall-Mountable (In-Wall Box Compatible)
Antennas Internal
Power Consumption 13.5W Max
Dimensions (HxWxD) 5.5 x 3.8 x 1.2 in
Management Platform UniFi Network Application
USB Support No
Environmental Cert. WEEE
Product Line UniFi 6
