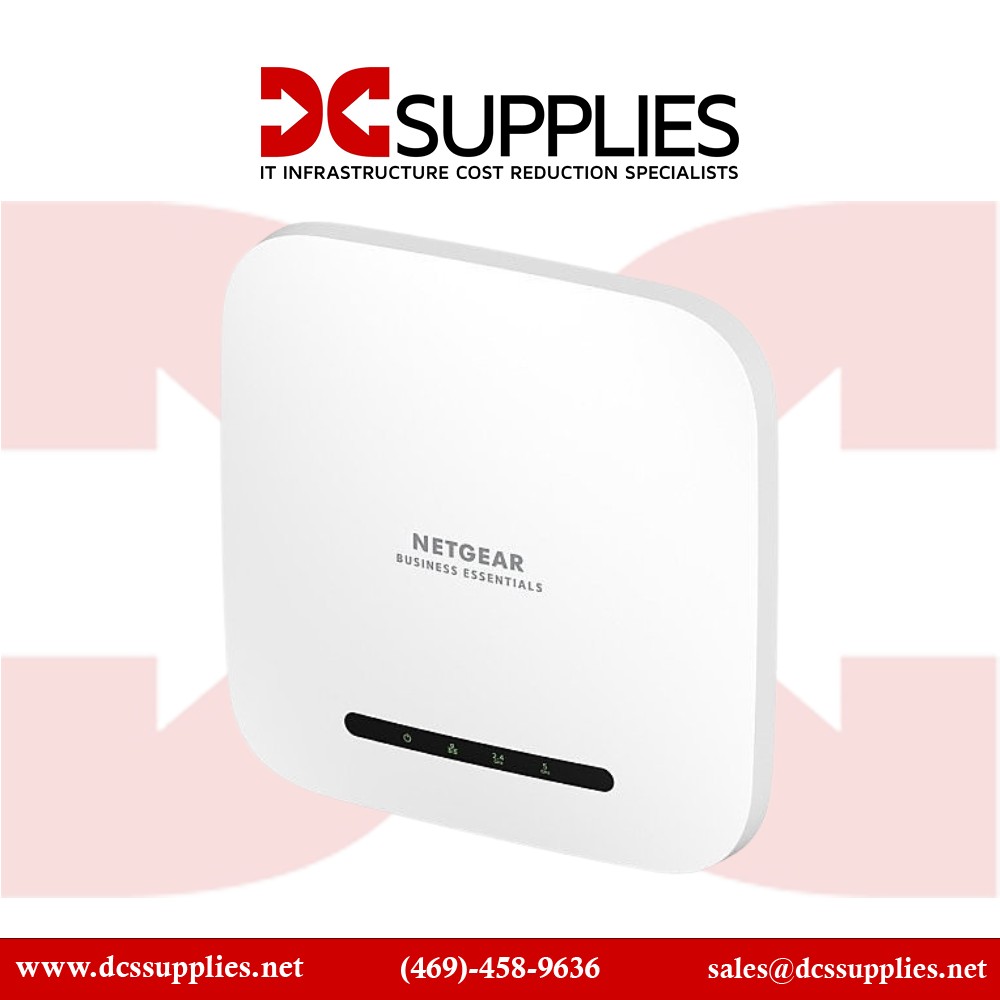

Netgear WAX220PA-100NAS AX4200 Dual-Band Access Point
Overview :
The Netgear WAX220PA-100NAS is a standalone WiFi 6 (802.11ax) access point built for small offices, retail, or branch environments. It combines dual-band 2.4 GHz and 5 GHz radios with a multi-gig Ethernet uplink and flexible power options (PoE+ or included adapter). It supports high client density and throughput with advanced wireless and security features. It fits ceiling or wall installations and offers easy local management without requiring a cloud subscription.
Key Features :
Dual-band WiFi 6 (AX4200) with 4×4 on 5 GHz and 2×2 on 2.4 GHz
2.5 G RJ-45 uplink with PoE+ support
Includes 12 V/2.5 A (30 W) power adapter
Supports WPA3, up to 256 clients, and 4 SSIDs
Technical Specifications :
| Specification | Value |
|---|
| Brand | Netgear |
| Part Number | WAX220PA-100NAS |
| Product Type | WiFi 6 Dual-Band Access Point |
| Wireless Standard | IEEE 802.11ax / ac / n / a / b / g |
| Total Throughput | 4.2 Gbps (600 Mbps @ 2.4 GHz + 3600 Mbps @ 5 GHz) |
| Ethernet Interface | 1 × RJ-45 100/1000/2.5 G (PoE+) |
| Power Options | PoE+ (802.3at), or 12 V/2.5 A DC adapter (30 W) |
| Power Consumption | 15.2 W |

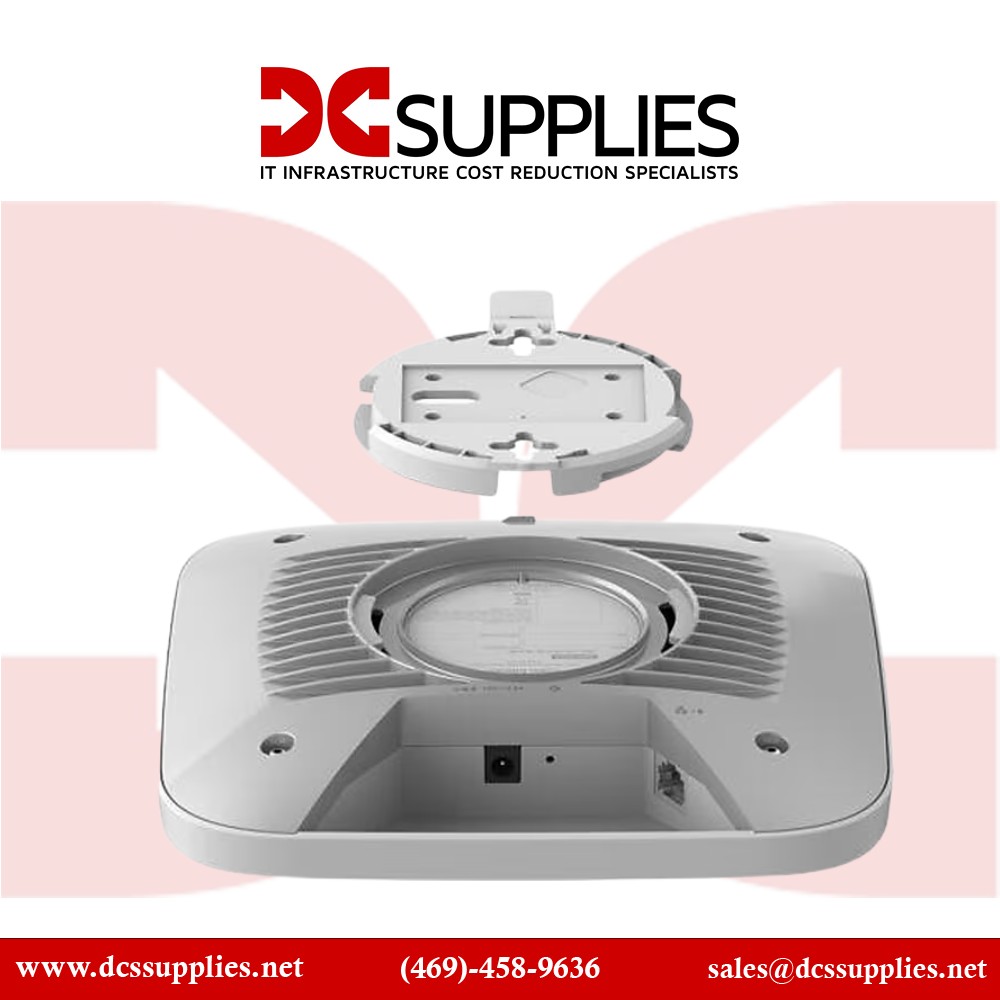

| Mounting Options | Ceiling or wall mount |
| Dimensions (W × D × H) | 196 × 196 × 44.4 mm |
| Weight | 523 g |
| Operating Temperature | 0 °C to 40 °C |
| Security | WPA2, WPA3, MAC ACL |
| Client Capacity | Up to 256 clients (128 per band) |
| Antennas | Internal (2.4 GHz & 5 GHz) |
| Management | Local web UI, standalone mode |
| Frequency Bands | 2.4 GHz + 5 GHz concurrent |
| SSIDs Supported | Up to 4 SSIDs |
