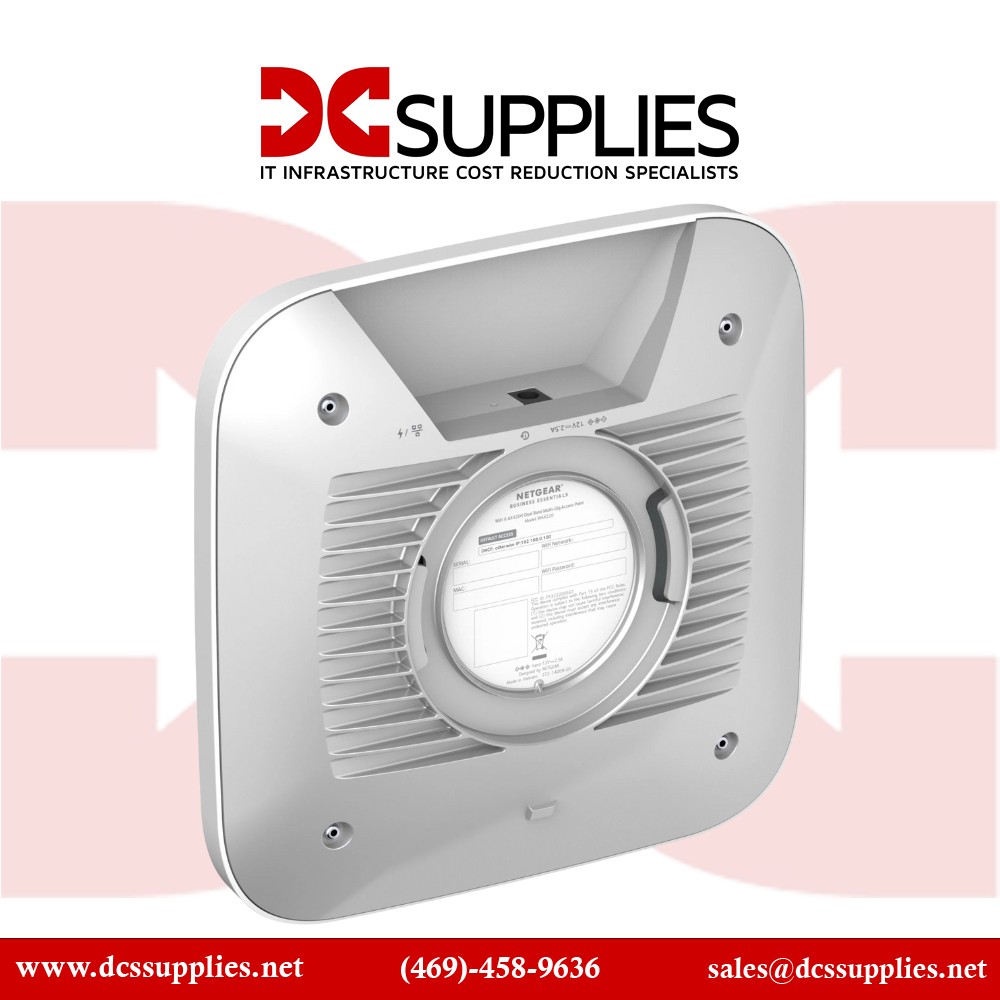

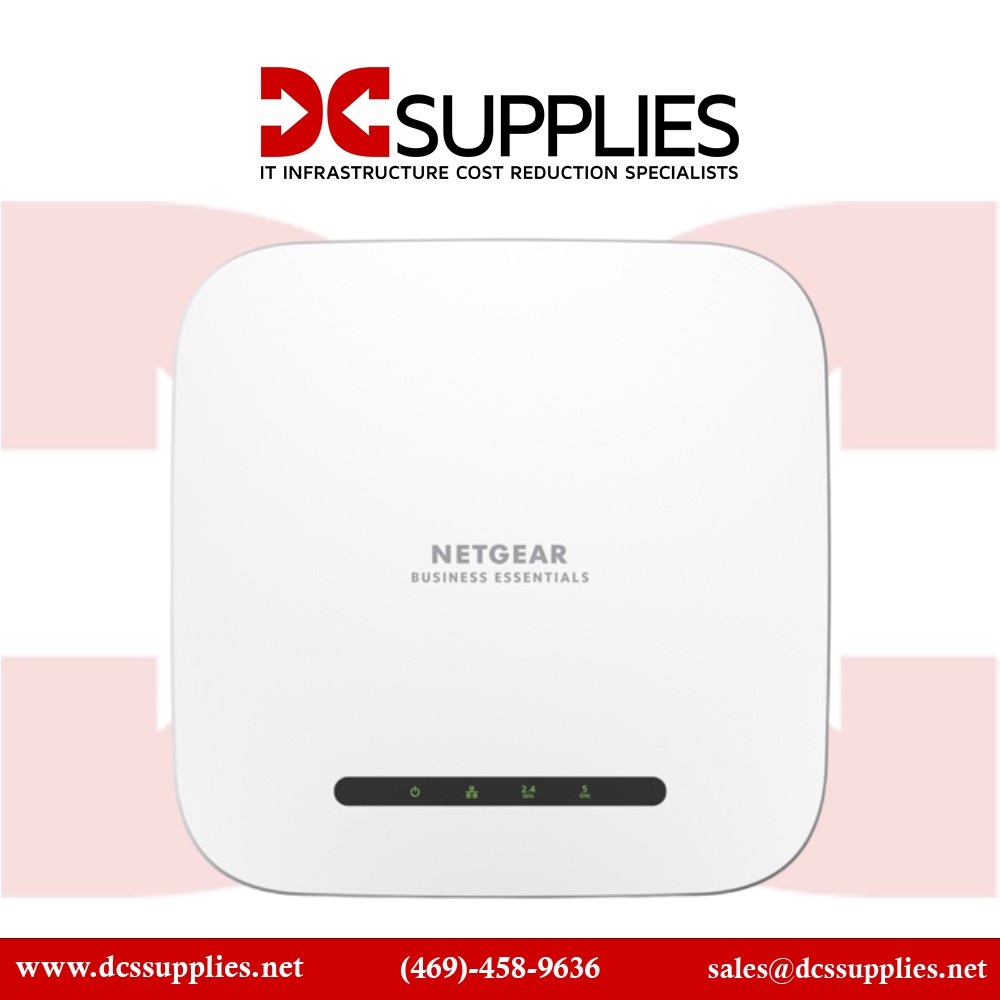

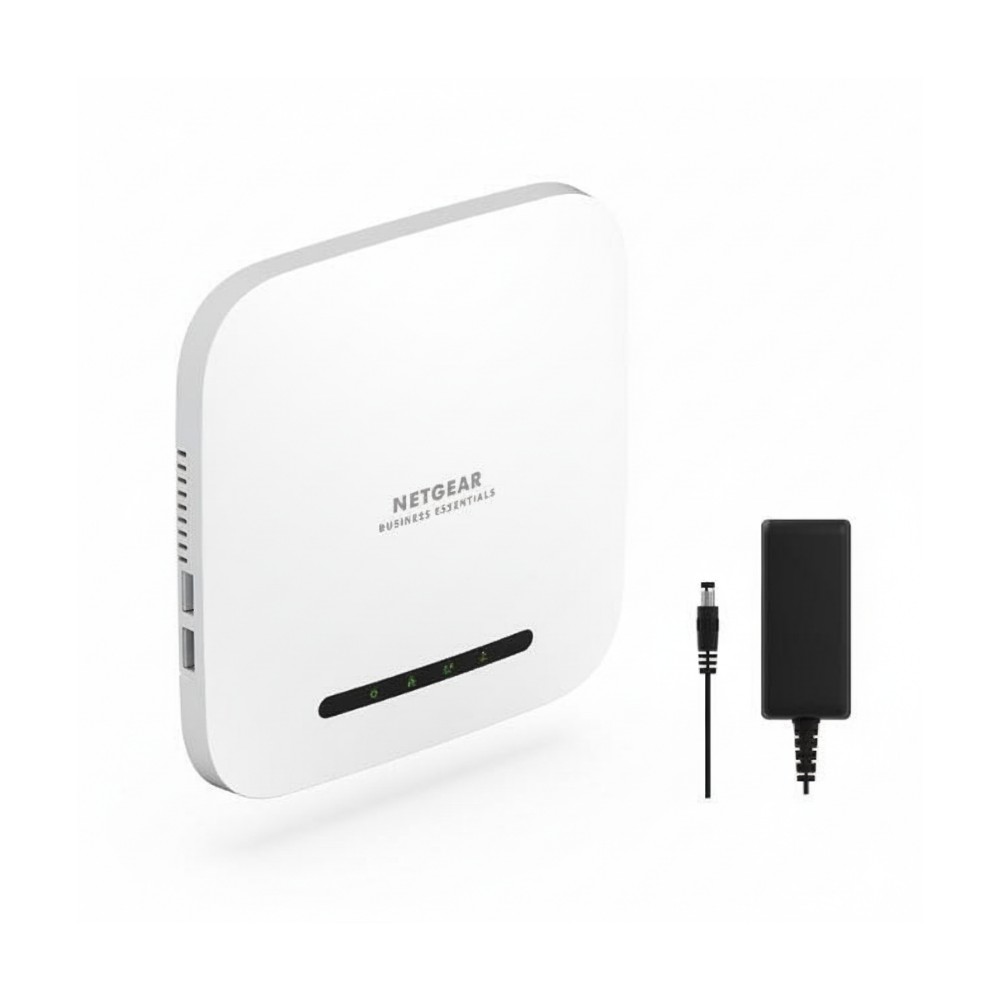

Netgear WAX220-100NAS AX4200 Dual-Band Access Point
Overview :
The Netgear WAX220-100NAS is a dual-band IEEE 802.11ax (WiFi 6) access point designed for small offices, retail, and branch environments. It supports combined theoretical throughput of 4.2 Gbps and delivers both wireless coverage and a multi-gig Ethernet uplink. It is powered via PoE+ and fits ceiling or wall installs, operating standalone (no cloud subscription required).
Key Features :
Combined 4.2 Gbps throughput (600 + 3600 Mbps)
1 × 2.5 G Ethernet RJ-45 PoE+ uplink

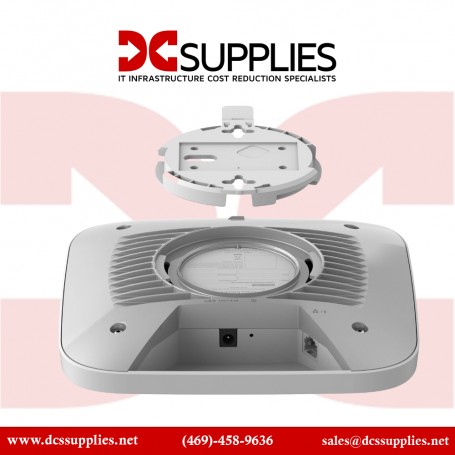

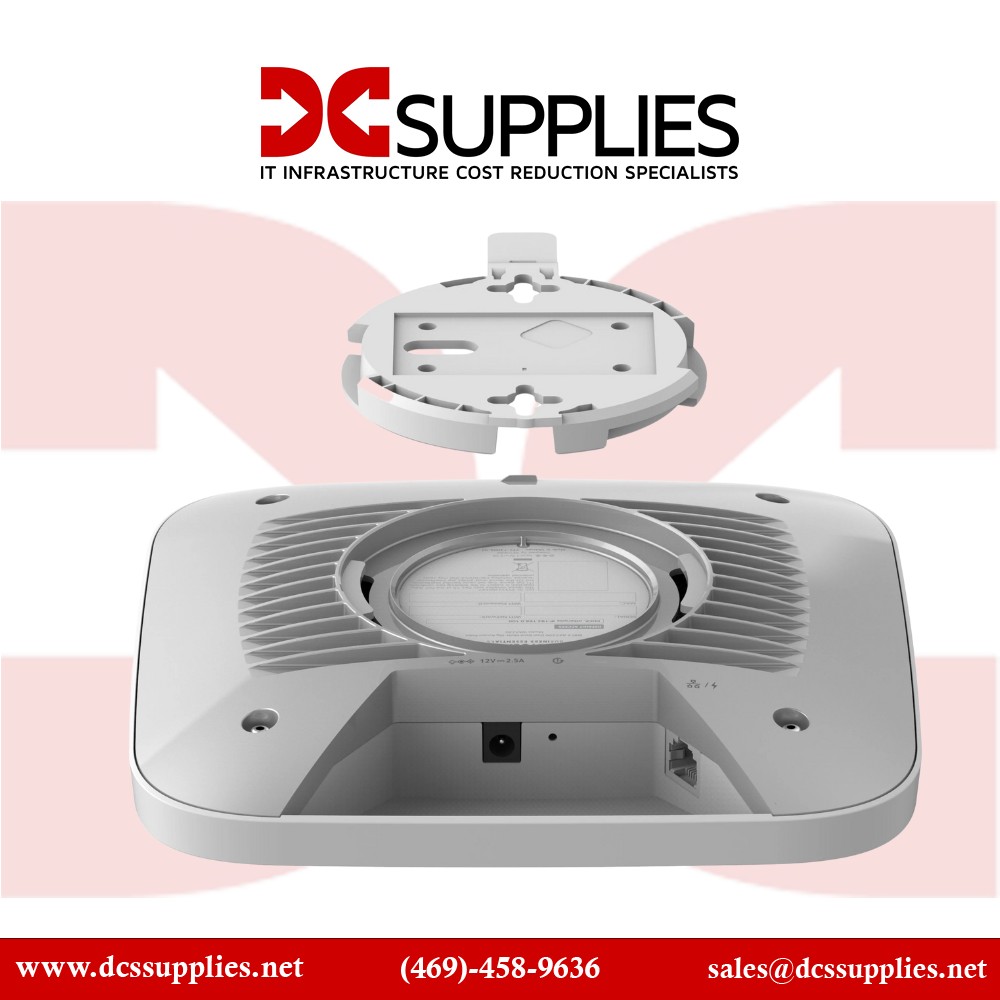

Ceiling or wall mount form factor
WPA3, 4 SSIDs, MAC ACL for enhanced security
Technical Specifications :
| Specification | Value |
|---|
| Brand | Netgear |
| Part Number | WAX220-100NAS |
| Product Type | WiFi 6 dual-band access point |
| Wireless Standard | IEEE 802.11ax / ac / n / a / b / g / e |
| Total Theoretical Throughput | 4.2 Gbps (600 Mbps @ 2.4 GHz + 3600 Mbps @ 5 GHz) |
| Ethernet Interface | 1 × RJ-45 100/1000/2.5 G multi-gig PoE+ |
| Power Consumption | 15.2 W |
| Mounting Options | Ceiling or wall mount |
| Dimensions (W × D × H) | 196 × 196 × 44.4 mm |
| Weight | 523 g |
| Operating Temperature | 0 °C to 40 °C |
| Supported Security | WPA2, WPA3, MAC ACL |
| SSID Support | Up to 4 SSIDs |
| Client Capacity | Up to 256 concurrent clients (128 per band) |
