Detailed Specifications

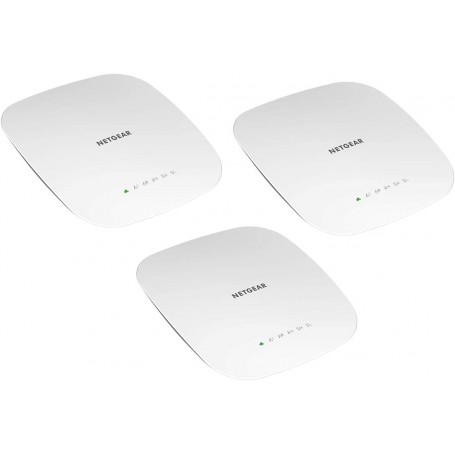

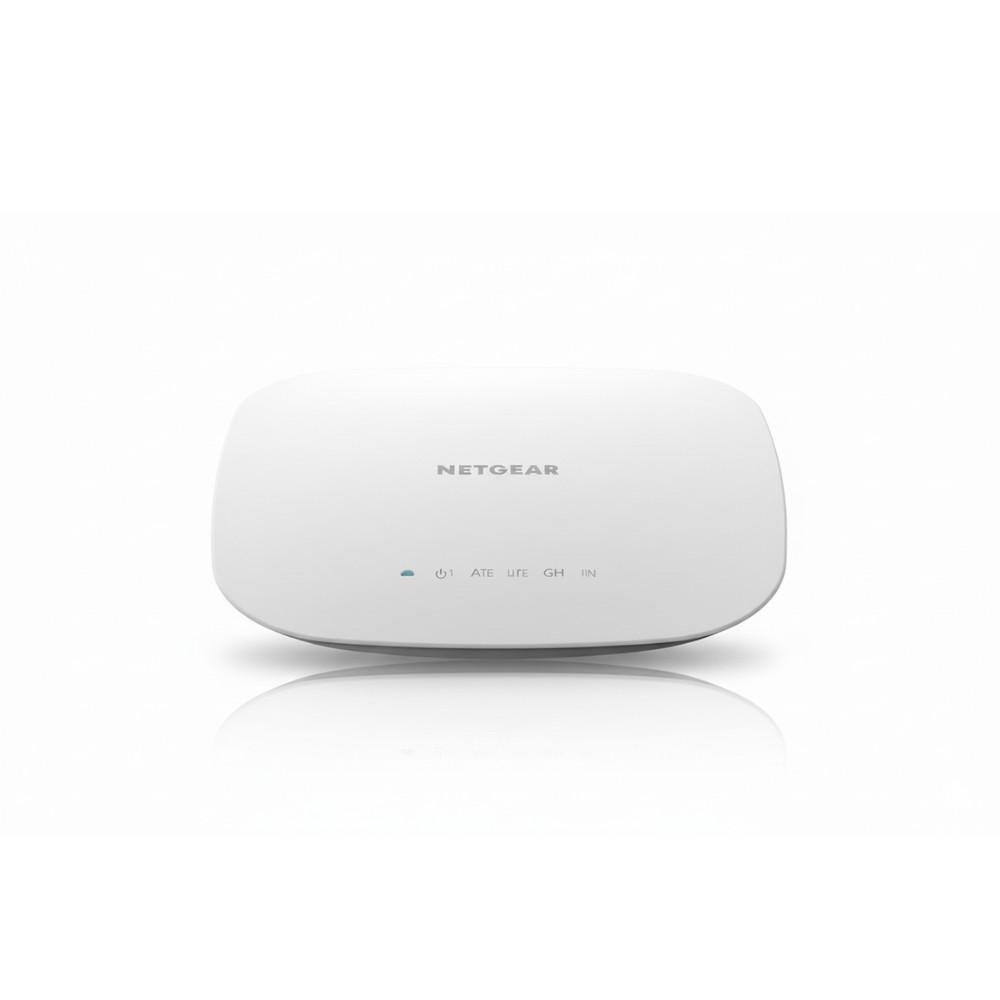

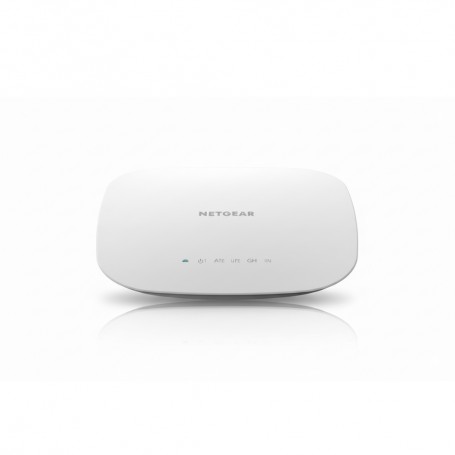

Netgear WAC540B03-100NAS – Tri-Band Access Point
Overview :
This is a tri-band WiFi 5 access point used in business environments to support high client density and scalable wireless deployment. It offers simultaneous 2.4 GHz + two 5 GHz radios to distribute load across bands under heavy usage. It is suited for deployment in offices, campuses, hotels, or branches. It integrates with NETGEAR Insight for cloud or local management without requiring separate controller hardware.
Key Features
3 radios: 2.4 GHz + 5 GHz low + 5 GHz high
MU-MIMO with 4×4 in one 5 GHz radio
Dual Gigabit Ethernet ports with link aggregation
Insight cloud management and automatic tuning
Specifications :
| Parameter | Value |
|---|
| Brand | NETGEAR |
| Part Number | WAC540B03-100NAS |
| Product Type | Tri-Band WiFi Access Point |
| Wireless Standard | IEEE 802.11ac Wave 2 |
| Maximum Theoretical Throughput | 3 Gbps (400 + 867 + 1733 Mbps) |
| Radios | 3 (1×2.4 GHz, 2×5 GHz) |
| MU-MIMO | Yes (4×4 on high 5 GHz radio) |
| Ethernet Ports | 2 × 10/100/1000 RJ-45 |
| PoE Support | IEEE 802.3at (PoE+) |
| Power Consumption | 25.5 W |
| Dimensions (W × D × H) | 241.53 × 241.53 × 40.21 mm |
| Weight | 752 g |
| Mount Options | Wall / Ceiling |
| Maximum Supported Clients | Up to 600 clients |
| Security | WPA, WPA2-PSK, WPA-Enterprise (RADIUS) |
| Management | NETGEAR Insight cloud / portal, SNMP v1/v2c |
| Warranty | 5-year hardware limited warranty |
