Overview

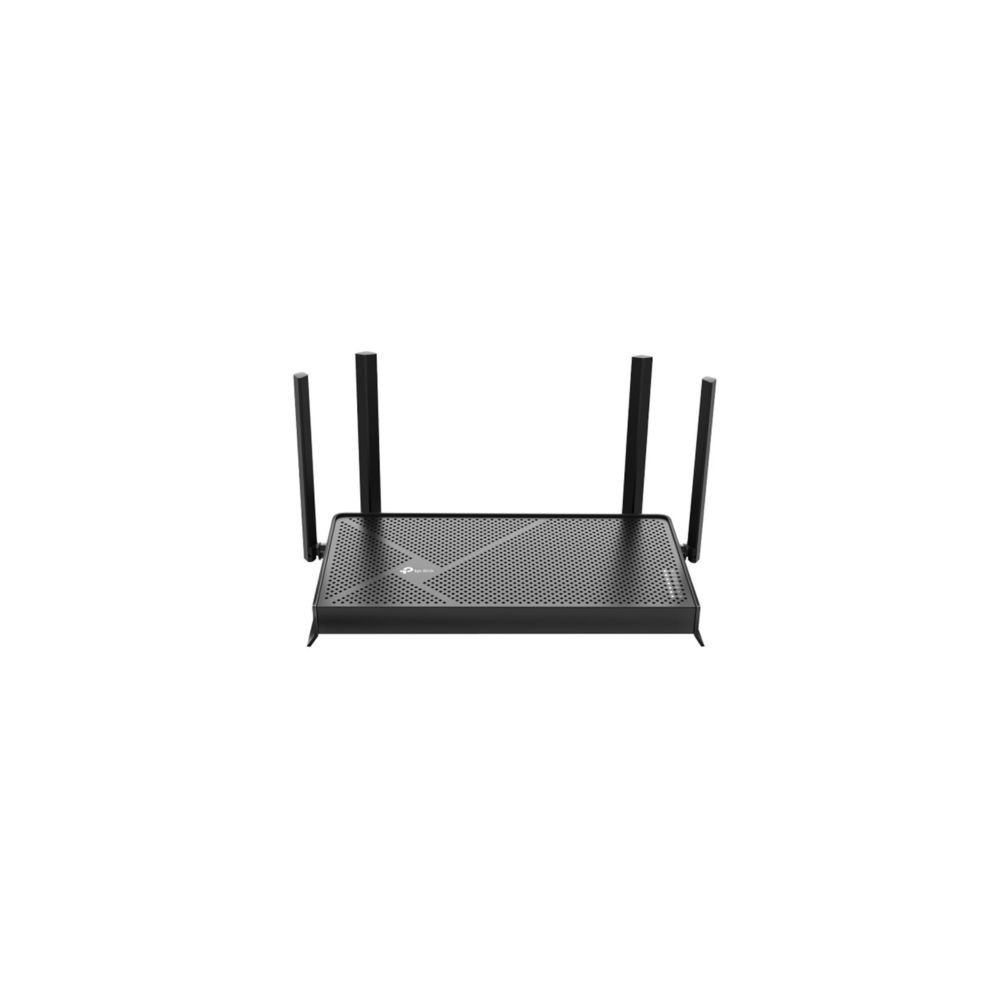

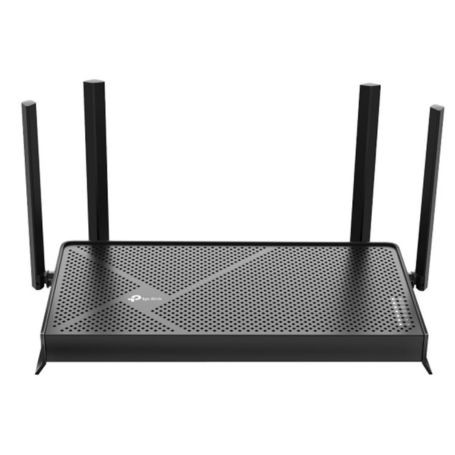

The TP-Link Archer BE230 is a dual-band BE3600 Wi-Fi 7 router designed to provide high-speed wireless connectivity for homes and small offices. Supporting combined theoretical wireless rates of up to 3.6 Gbps, it operates on the 2.4GHz and 5GHz bands to support compatible smartphones, laptops, smart TVs, gaming devices and other network-connected equipment.
Two 2.5Gbps Ethernet ports provide multi-gigabit wired connectivity, while three additional Gigabit LAN ports support conventional wired devices. Four external antennas and Beamforming technology help direct wireless signals toward connected clients. EasyMesh compatibility allows the router to participate in a compatible mesh network for broader wireless coverage.
Key Features
- Dual-band Wi-Fi 7: Supports theoretical wireless speeds of up to 2882Mbps on 5GHz and 688Mbps on 2.4GHz, with compatible Wi-Fi 7 features including Multi-Link Operation, 4K-QAM and Multi-RUs.
- Dual 2.5Gbps Ethernet ports: One 2.5Gbps WAN port and one 2.5Gbps LAN port support multi-gigabit internet connections and wired networking.
- Four external antennas with Beamforming: Helps extend wireless coverage and direct signals toward connected devices.
- USB 3.0 storage sharing: Connect compatible external storage to provide network file access through supported FTP, Samba and media server functions.
- EasyMesh and HomeShield: Supports compatible EasyMesh devices and offers network management and security features through TP-Link HomeShield.
Wireless Performance and Networking
The Archer BE230 uses Wi-Fi 7 technology, based on IEEE 802.11be, alongside support for earlier Wi-Fi standards. Its two wireless bands provide a combined advertised class of BE3600. The 5GHz band supports a theoretical rate of up to 2882Mbps, while the 2.4GHz band supports up to 688Mbps.
Multi-Link Operation, 4K-QAM, Multi-RUs, OFDMA and 2x2 MU-MIMO support efficient communication with compatible clients. Actual wireless performance depends on client capabilities, network congestion, interference, building materials and distance from the router.
Wired Connectivity and USB Features
The router provides one 2.5Gbps WAN port for an internet connection, one 2.5Gbps LAN port for a compatible wired device, and three 1Gbps LAN ports for additional equipment. Achieving multi-gigabit internet speeds requires a compatible service plan, modem or terminal equipment, Ethernet cabling and connected devices.
The USB 3.0 port supports compatible external storage formatted with NTFS, exFAT, HFS+ or FAT32. Supported functions include FTP server, Samba server and media server operation, subject to the router's firmware and storage configuration.
Security and Network Management
TP-Link HomeShield provides network management and security capabilities, including a home network scanner, malicious-site blocking, intrusion prevention and parental controls. Some advanced HomeShield functions require a paid subscription.
VPN client and server functionality supports OpenVPN, PPTP, L2TP and WireGuard. This enables supported VPN configurations at router level without requiring every connected device to run its own VPN application. Availability and functionality depend on firmware, service configuration and the selected VPN provider.
Applications
- Home Wi-Fi for compatible Wi-Fi 7 and earlier-generation devices
- 4K and 8K streaming on supported devices and services
- Online gaming and low-latency networking with compatible equipment
- Multi-gigabit wired connections for supported computers and network storage
- Small-office internet access and local network connectivity
- Network file and media sharing through compatible USB storage
Compatibility
- Supports Wi-Fi 7 and earlier Wi-Fi generations using compatible wireless standards.
- Supports router mode and access point mode.
- Works with cable or DSL modem equipment where required by the internet connection.
- Compatible with EasyMesh devices that support the applicable EasyMesh functions and firmware.
- Supports Ethernet-connected devices through its 2.5Gbps and Gigabit LAN ports.
- USB storage functions depend on the storage format, connected drive and supported router software.
Specifications
| Brand | TP-Link |
|---|
| Part Number / MPN | Archer BE230 |
|---|
| Product Type | Dual-band wireless router |
|---|
| Wireless Class | BE3600 |
|---|
| Wi-Fi Standard | Wi-Fi 7 (IEEE 802.11be) |
|---|
| Wireless Bands | 2.4GHz and 5GHz |
|---|
| Maximum Advertised Wireless Rate | Up to 3.6Gbps combined theoretical rate |
|---|
| 5GHz Wireless Rate | Up to 2882Mbps |
|---|
| 2.4GHz Wireless Rate | Up to 688Mbps |
|---|
| Antennas | 4 external antennas |
|---|
| Beamforming | Supported |
|---|
| MU-MIMO | 2x2 MU-MIMO |
|---|
| Wi-Fi 7 Features | Multi-Link Operation (MLO), 4K-QAM and Multi-RUs |
|---|
| WAN Port | 1 x 2.5Gbps Ethernet |
|---|
| Multi-Gigabit LAN Port | 1 x 2.5Gbps Ethernet |
|---|
| Gigabit LAN Ports | 3 x 1Gbps Ethernet |
|---|
| USB Port | 1 x USB 3.0 |
|---|
| USB File Systems | NTFS, exFAT, HFS+ and FAT32 |
|---|
| USB Server Functions | FTP server, Samba server and media server |
|---|
| Mesh Compatibility | EasyMesh |
|---|
| Operating Modes | Router mode and access point mode |
|---|
| VPN Client Protocols | OpenVPN, PPTP, L2TP and WireGuard |
|---|
| VPN Server Protocols | OpenVPN, PPTP, L2TP and WireGuard |
|---|
| Wireless Security | WPA, WPA2, WPA3 and WPA/WPA2-Enterprise (802.1X) |
|---|
| Network Security | SPI firewall, access control, IP and MAC binding, application layer gateway and HomeShield |
|---|
| Guest Networks | Separate 2.4GHz and 5GHz guest networks |
|---|
| IPv6 | Supported |
|---|
| Management | TP-Link Tether app and web interface |
|---|
| Voice Assistant Compatibility | Amazon Alexa and Google Assistant support |
|---|
| Power Supply | 12V DC; adapter rating varies by regional version |
|---|
| Operating Temperature | 0°C to 40°C |
|---|
| Operating Humidity | 10% to 90% non-condensing |
|---|
DC Supplies Product Note
To benefit from the Archer BE230's 2.5Gbps ports, make sure your internet plan and connected network equipment support multi-gigabit speeds. Wi-Fi 7 benefits also depend on compatible client devices. If you plan to use USB storage sharing, confirm that your preferred file-sharing method and drive format are supported.
Frequently Asked Questions
Is the TP-Link Archer BE230 a Wi-Fi 7 router?
Yes. It supports Wi-Fi 7 and offers dual-band wireless rates of up to 2882Mbps on 5GHz and 688Mbps on 2.4GHz under compatible conditions.
Does the Archer BE230 have 2.5Gbps Ethernet ports?
Yes. It has one 2.5Gbps WAN port and one 2.5Gbps LAN port, in addition to three Gigabit LAN ports.
Can I use the Archer BE230 with older Wi-Fi devices?
Yes. It supports earlier Wi-Fi generations as well as Wi-Fi 7. Older devices will connect using the standards and capabilities they support.
Does this router support mesh networking?
Yes. It supports EasyMesh and can work with compatible EasyMesh routers or range extenders. Compatibility and available features depend on the connected device and firmware.
Can I connect an external hard drive?
Yes. The USB 3.0 port supports compatible external storage and functions such as FTP, Samba and media serving. Supported file systems include NTFS, exFAT, HFS+ and FAT32.
Does the Archer BE230 support VPN connections?
Yes. It supports VPN client and server functions for OpenVPN, PPTP, L2TP and WireGuard, subject to the applicable configuration and firmware.
