Overview

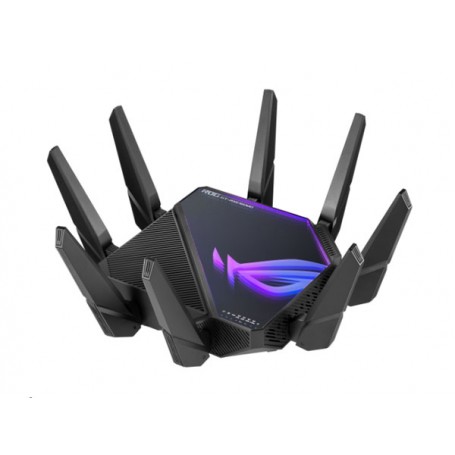

The ASUS GT-AXE16000 ROG Rapture is a quad-band Wi-Fi 6E gaming router designed for high-performance home networks, gaming setups, and bandwidth-intensive applications. It combines four wireless bands with multi-gigabit wired connectivity, advanced traffic management, and ASUS AiMesh support.
Wireless Performance
The router operates on 2.4 GHz, two separate 5 GHz bands, and 6 GHz. Its AXE16000-class wireless configuration provides theoretical data rates of up to 1148 Mbps on 2.4 GHz and up to 4804 Mbps on each of the three higher-frequency bands. Wi-Fi 6E provides access to the 6 GHz band for compatible clients, subject to local regulations and device support.
Multi-Gigabit Connectivity
The GT-AXE16000 features two 10 Gigabit Ethernet ports, one 2.5 Gigabit WAN port, and four Gigabit LAN ports. The 10G ports support flexible WAN/LAN configuration, allowing the router to accommodate compatible high-speed internet connections and wired network devices. Separate 2.4 GHz, 5 GHz, and 6 GHz wireless networks provide flexibility for different client devices.
Gaming and Network Security
Gaming features include Game Boost, Game Radar, WTFast, ROG First, and OpenNAT. VPN Fusion supports selected VPN configurations, while AiProtection Pro, firewall controls, and parental controls provide additional network management and security options.
Key Features
- Quad-band Wi-Fi 6E with 2.4 GHz, dual 5 GHz, and 6 GHz bands.
- Two 10 Gigabit Ethernet ports for high-speed wired networking.
- One 2.5 Gigabit WAN port and four Gigabit LAN ports.
- Gaming acceleration features including Game Boost, Game Radar, and OpenNAT.
- ASUS AiMesh, AiProtection Pro, and VPN Fusion support.
Applications
The GT-AXE16000 can serve gaming rooms, high-bandwidth home networks, content creation workstations, and environments with multiple demanding wireless clients. Its 10G interfaces can connect compatible multi-gigabit network equipment, storage devices, or internet services.
DC Supplies Product Note
To use the 6 GHz band, both the router and client device must support Wi-Fi 6E, and the operating system and regional regulations must permit 6 GHz operation. For wired deployments, confirm that connected switches, network adapters, and internet services support the intended 2.5G or 10G speeds.
Specifications
| Brand | ASUS |
|---|
| Part Number / MPN | GT-AXE16000 |
|---|
| Product Type | Quad-Band Wi-Fi 6E Gaming Router |
|---|
| Product Series | ROG Rapture |
|---|
| Wireless Standard | Wi-Fi 6 / Wi-Fi 6E (IEEE 802.11ax) |
|---|
| Wireless Class | AXE16000 |
|---|
| Frequency Bands | 2.4 GHz, 5 GHz-1, 5 GHz-2, 6 GHz |
|---|
| Maximum 2.4 GHz Data Rate | 1148 Mbps |
|---|
| Maximum 5 GHz-1 Data Rate | 4804 Mbps |
|---|
| Maximum 5 GHz-2 Data Rate | 4804 Mbps |
|---|
| Maximum 6 GHz Data Rate | 4804 Mbps |
|---|
| Antennas | 8 external antennas |
|---|
| Processor | 2.0 GHz quad-core processor |
|---|
| Flash Memory | 256 MB |
|---|
| RAM | 2 GB DDR4 |
|---|
| 10G Interfaces | 2 x 10 Gigabit Ethernet WAN/LAN |
|---|
| WAN Interface | 1 x 2.5 Gigabit Ethernet WAN |
|---|
| LAN Interfaces | 4 x Gigabit Ethernet LAN |
|---|
| USB Interfaces | 1 x USB 3.2 Gen 1, 1 x USB 2.0 |
|---|
| Wireless Technologies | OFDMA, MU-MIMO, beamforming, 1024-QAM |
|---|
| Wireless Security | WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise, WPA2-Enterprise, OWE |
|---|
| Network Protocols | IPv4, IPv6 |
|---|
| Gaming Features | Game Boost, Game Radar, WTFast, ROG First, OpenNAT |
|---|
| Security | AiProtection Pro, firewall, parental controls |
|---|
| Mesh Networking | ASUS AiMesh |
|---|
| Power Input | 110–240 V AC, 50–60 Hz |
|---|
| Power Adapter Output | 19 V DC, 3.42 A maximum or 19.5 V DC, 3.33 A maximum |
|---|
| Dimensions (W x D x H) | 354 x 354 x 193 mm |
|---|
| Product Weight | 2425 g |
|---|
Frequently Asked Questions
Does the GT-AXE16000 support Wi-Fi 6E?
Yes. It supports quad-band Wi-Fi 6E, including a dedicated 6 GHz band for compatible devices.
Does this router have 10 Gigabit Ethernet ports?
Yes. It has two 10 Gigabit Ethernet WAN/LAN ports, along with a 2.5 Gigabit WAN port and four Gigabit LAN ports.
Can older Wi-Fi devices connect to this router?
Yes. Compatible devices using supported earlier Wi-Fi standards can connect on the relevant 2.4 GHz or 5 GHz bands. Wi-Fi 6E devices are required to access 6 GHz.
Does it support ASUS AiMesh?
Yes. It can operate as an AiMesh router or node with compatible ASUS AiMesh equipment.
What power adapter does it use?
The specified DC output is 19 V at up to 3.42 A or 19.5 V at up to 3.33 A. Use the compatible adapter supplied for the specific regional unit.
