Overview

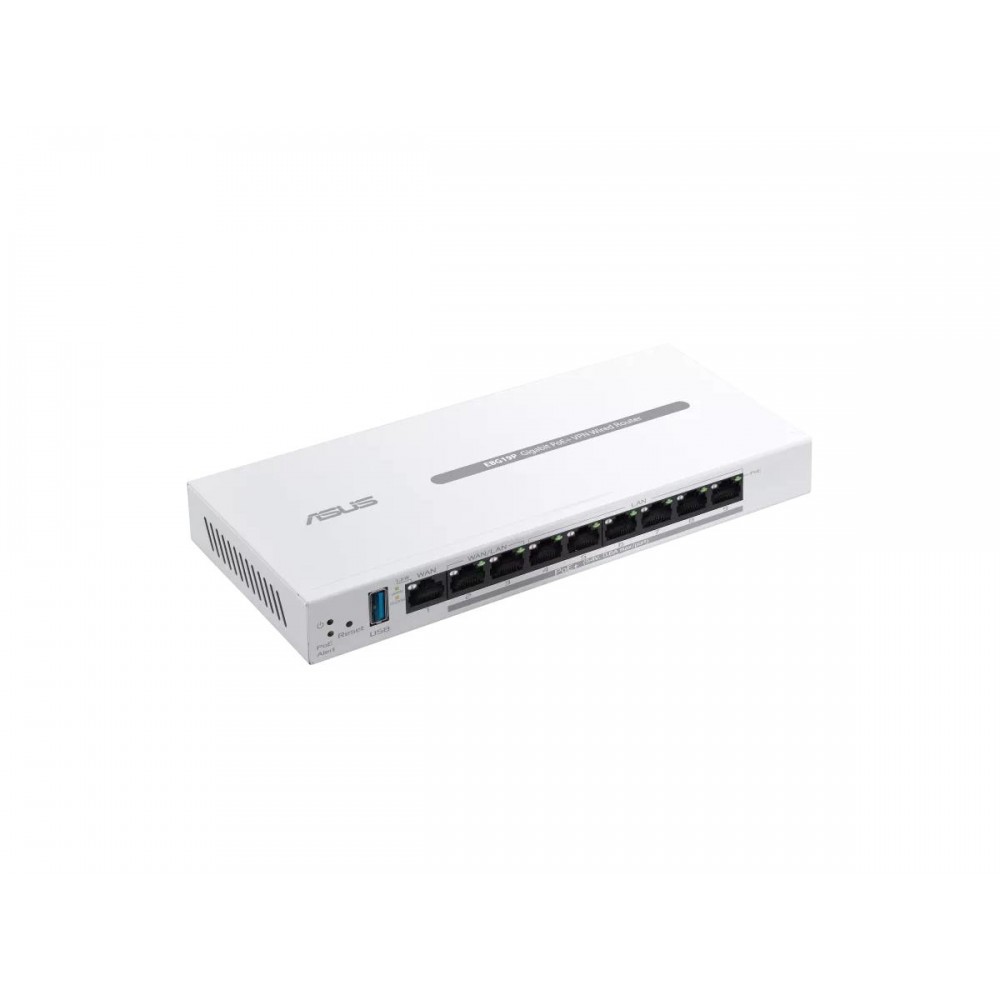

The ASUS ExpertWiFi EBG19P is a Gigabit PoE+ VPN wired router designed for small businesses and professional network deployments. It combines wired routing, Power over Ethernet, network segmentation, and security management in a compact device. Its multi-WAN capabilities support flexible internet connectivity, while its PoE+ ports can power compatible network devices such as access points.
Connectivity and Network Management
The EBG19P provides one dedicated Gigabit WAN port and eight Gigabit LAN ports, including two configurable WAN/LAN ports. This arrangement supports flexible network configuration, including additional WAN connections for load balancing and failover. A USB 3.2 Gen 1 port is also available for supported connectivity and backup-WAN configurations.
The router supports VLAN configuration to separate network traffic and provides centralized management of compatible ASUS ExpertWiFi devices through a web browser or the ASUS ExpertWiFi mobile app.
PoE+ Power Delivery
Eight PoE+ ports provide power to compatible Ethernet-connected devices. ASUS lists a total PoE power budget of up to 123 W. Actual power allocation depends on the connected devices and the available power budget.
Security and VPN
The EBG19P includes business-oriented security capabilities such as ASUS AiProtection Pro, intrusion prevention, Safe Browsing, and VPN functionality. Supported VPN and network configuration options can help businesses protect traffic and connect separate locations, depending on the selected configuration and supported features.
Key Features
- Eight Gigabit LAN ports with PoE+ support and a total listed PoE power budget of up to 123 W.
- Multi-WAN connectivity with one dedicated Gigabit WAN port and two configurable WAN/LAN ports.
- VLAN support for separating wired and wireless network traffic.
- VPN and ASUS AiProtection Pro security features for business network management.
- USB 3.2 Gen 1 connectivity with support for compatible backup-WAN configurations.
Applications
The EBG19P can serve as a central wired router for offices, retail locations, clinics, hospitality businesses, and small commercial networks. Its PoE+ capability can simplify deployment of compatible access points and other powered Ethernet devices. Multi-WAN configuration can be useful where a business requires more than one internet connection.
DC Supplies Product Note
Before connecting multiple PoE devices, calculate their combined power requirements and keep the total within the router's 123 W listed PoE budget. For multi-WAN deployment, confirm which Ethernet ports will be assigned to WAN duties because the two configurable WAN/LAN ports may be used for either role.
Specifications
| Brand | ASUS |
|---|
| Part Number / MPN | EBG19P |
|---|
| Product Type | Gigabit PoE+ VPN Wired Router |
|---|
| Product Series | ExpertWiFi |
|---|
| Processor | 1.8 GHz dual-core ARMv8 |
|---|
| Flash Memory | 256 MB |
|---|
| RAM | 512 MB |
|---|
| Dedicated WAN Port | 1 x Gigabit Ethernet WAN |
|---|
| LAN Ports | 8 x Gigabit Ethernet LAN |
|---|
| Configurable WAN/LAN Ports | 2 |
|---|
| USB Interface | 1 x USB 3.2 Gen 1 |
|---|
| PoE Support | PoE+ |
|---|
| Total PoE Power Budget | Up to 123 W |
|---|
| Network Standards | IEEE 802.3, 802.3u, 802.3i, 802.3ab, 802.3x, 802.1Q, 802.1p |
|---|
| Network Protocols | IPv4, IPv6 |
|---|
| Security Features | ASUS AiProtection Pro, Safe Browsing, intrusion prevention |
|---|
| Network Management | Web interface, ASUS ExpertWiFi mobile app |
|---|
| Operating Mode | Router and supported AiMesh modes |
|---|
| Power Supply Input | 110–240 V AC, 50–60 Hz |
|---|
| Power Adapter Output | 54 V DC, up to 2.778 A (regional specifications may vary) |
|---|
| Product Dimensions | 212 x 95 x 26 mm |
|---|
| Product Weight | 530 g |
|---|
Frequently Asked Questions
Does the ASUS EBG19P support PoE+?
Yes. It provides eight PoE+ ports and a listed total PoE power budget of up to 123 W.
Can the router use multiple internet connections?
Yes. It has one dedicated Gigabit WAN port and two configurable WAN/LAN ports for supported multi-WAN configurations, including load balancing and failover.
Does the EBG19P support VLANs?
Yes. VLAN configuration is supported for network segmentation and management.
Can it power ASUS ExpertWiFi access points?
It can power compatible PoE-enabled access points, subject to their power requirements and the available PoE budget.
Can the USB port be used for internet backup?
ASUS describes a supported backup-WAN option using a compatible mobile phone hotspot connected through USB. Device and configuration compatibility should be confirmed before deployment.
What is included in the package?
The listed package contents include the EBG19P router, RJ-45 cable, power adapter, warranty card, and quick start guide. Confirm the contents of the specific regional package with the seller.
