Detailed Specifications
Overview

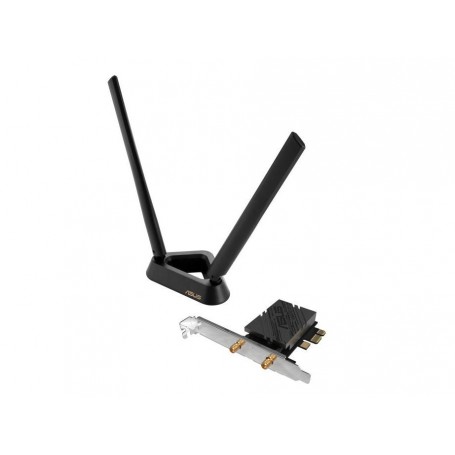

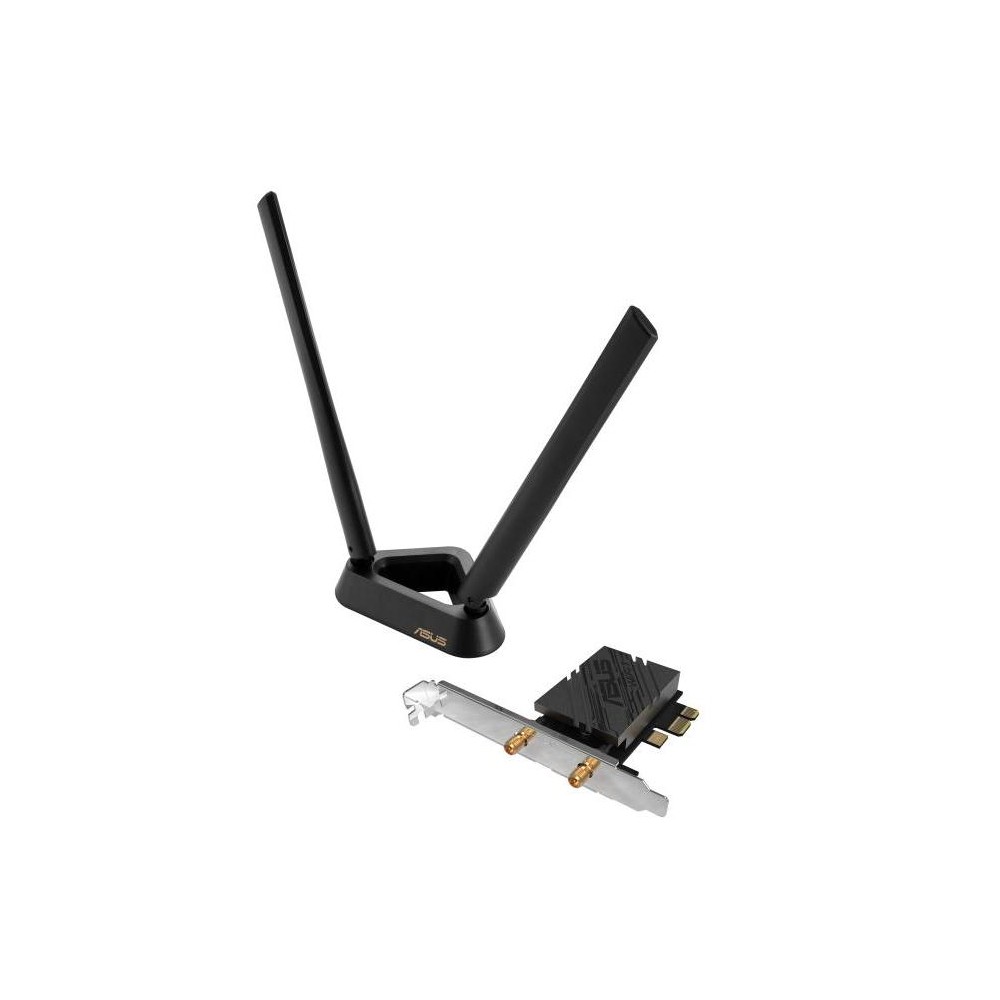

The ASUS PCE-BE92BT is a BE9400 tri-band WiFi 7 PCIe adapter designed to upgrade compatible desktop computers with advanced wireless networking and Bluetooth 5.4 connectivity. Supporting the 2.4GHz, 5GHz, and 6GHz bands, it delivers combined theoretical wireless rates of up to 9,334 Mbps. Its external antenna base allows flexible antenna placement, while WPA3 security helps protect compatible wireless connections. The adapter is designed for compatible Windows systems and desktop PCs with an available PCI Express slot.
Key Features
- WiFi 7 technology based on IEEE 802.11be.
- BE9400 tri-band wireless connectivity across 2.4GHz, 5GHz, and 6GHz.
- Theoretical data rates of up to 688 Mbps on 2.4GHz, 2,882 Mbps on 5GHz, and 5,764 Mbps on 6GHz.
- Bluetooth 5.4 support for compatible wireless peripherals.
- 320MHz channel bandwidth support with compatible routers and regional availability.
- Two external antennas with a separate antenna base for flexible positioning.
- WPA3 wireless security for supported networks.
- PCI Express x1 interface for compatible desktop computers.
- Designed for Windows 11 systems; check regional ASUS support for additional operating-system compatibility.
Technical Specifications
| Brand | ASUS |
|---|
| Part Number / MPN | PCE-BE92BT |
|---|
| Product Type | WiFi 7 PCIe Network Adapter |
|---|
| Wireless Standard | WiFi 7 (IEEE 802.11be) |
|---|
| Product Segment | BE9400 |
|---|
| Frequency Bands | 2.4GHz, 5GHz, and 6GHz |
|---|
| Maximum Data Rate | Up to 9,334 Mbps combined theoretical rate |
|---|
| 2.4GHz Data Rate | Up to 688 Mbps |
|---|
| 5GHz Data Rate | Up to 2,882 Mbps |
|---|
| 6GHz Data Rate | Up to 5,764 Mbps |
|---|
| Bluetooth | Bluetooth 5.4 |
|---|
| Interface | PCI Express x1 |
|---|
| Antenna | 2 x External Antennas with Base |
|---|
| Channel Bandwidth | Up to 320MHz, with compatible equipment |
|---|
| Security | WPA3 |
|---|
| Operating System Support | Windows 11; confirm additional support by region |
|---|
| Product Dimensions | 120.5 x 88.5 x 21.6 mm |
|---|
| Product Weight | 84.8 g |
|---|
| Warranty | Varies by region and seller |
|---|
Applications
- Upgrading compatible desktop PCs to WiFi 7
- High-bandwidth streaming and online gaming
- Large file transfers and wireless productivity
- Video conferencing and remote work
- Connecting Bluetooth peripherals to compatible computers
- Tri-band networking with compatible WiFi 7 routers
What's Included
- ASUS PCE-BE92BT wireless adapter
- External antenna base
- Quick start guide
- Warranty card
Package contents and included accessories may vary by region. Confirm the retail package details with the seller before purchase.
Why Choose the ASUS PCE-BE92BT?
The ASUS PCE-BE92BT combines WiFi 7 tri-band networking, Bluetooth 5.4, and flexible external antenna placement in a PCIe adapter for compatible desktop systems. Its high theoretical wireless speeds, 6GHz support, and WPA3 security make it a practical upgrade for users seeking modern wireless connectivity. A compatible router, operating system, and hardware platform are required to access supported features.
