Detailed Specifications
Overview

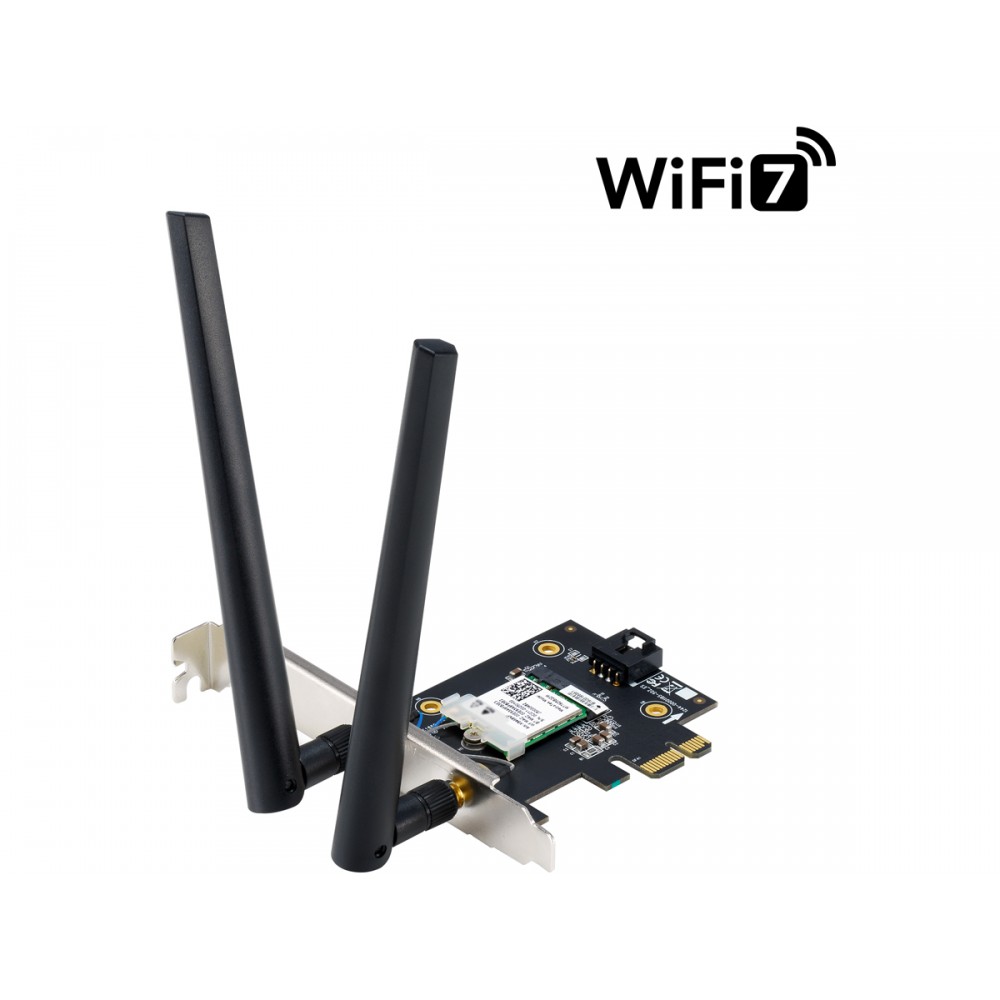

The ASUS PCE-BE6500 is a WiFi 7 tri-band PCIe adapter designed to upgrade compatible desktop computers with high-speed wireless networking and Bluetooth 5.4 connectivity. Supporting the 2.4GHz, 5GHz, and 6GHz frequency bands, it delivers wireless data rates of up to 6,452 Mbps combined under supported conditions. With two external antennas, 4096-QAM technology, and WPA3 security, it provides an efficient wireless networking solution for compatible Windows 11 systems.
Key Features
- WiFi 7 technology based on IEEE 802.11be for improved wireless performance.
- Tri-band connectivity across 2.4GHz, 5GHz, and 6GHz frequencies.
- Combined theoretical data rates of up to 6,452 Mbps across supported bands.
- Bluetooth 5.4 support for compatible wireless peripherals.
- 4096-QAM modulation for higher data throughput under suitable conditions.
- Two external antennas to help improve wireless reception.
- OFDMA and MU-MIMO support through compatible WiFi technologies.
- WPA3 security for supported wireless networks.
- PCI Express x1 interface for compatible desktop motherboards.
- Designed for Windows 11 64-bit systems.
Technical Specifications
| Brand | ASUS |
|---|
| Part Number / MPN | PCE-BE6500 |
|---|
| Product Type | WiFi 7 PCIe Network Adapter |
|---|
| Network Standard | WiFi 7 (IEEE 802.11be) |
|---|
| Supported Standards | WiFi 4, WiFi 5, WiFi 6, WiFi 6E, WiFi 7 |
|---|
| Wireless Class | BE6500 |
|---|
| Frequency Bands | 2.4GHz, 5GHz, 6GHz |
|---|
| Maximum Data Rate | Up to 6,452 Mbps combined theoretical rate |
|---|
| 2.4GHz Data Rate | Up to 688 Mbps |
|---|
| 5GHz Data Rate | Up to 2,882 Mbps |
|---|
| 6GHz Data Rate | Up to 2,882 Mbps |
|---|
| Bluetooth | Bluetooth 5.4 |
|---|
| Interface | PCI Express x1 |
|---|
| Antenna | 2 x External Antennas |
|---|
| Modulation | 4096-QAM |
|---|
| Security | WPA3 |
|---|
| Operating System | Windows 11 64-bit |
|---|
| Product Dimensions | 120.5 x 88.5 x 21.6 mm |
|---|
| Product Weight | 51.6 g |
|---|
| Warranty | Varies by region and seller |
|---|
Applications
- Upgrading desktop PCs to WiFi 7 wireless networking
- High-bandwidth streaming and online gaming
- Video conferencing and remote work
- Fast wireless downloads and large file transfers
- Connecting Bluetooth peripherals to compatible desktop computers
- Home and office networking with compatible WiFi 7 routers
What's Included
- ASUS PCE-BE6500 wireless network card with standard bracket
- Low-profile bracket
- 2 external antennas
- Motherboard USB cable for Bluetooth functionality
- Quick start guide and warranty documentation
Package contents may vary by region and retail configuration.
Why Choose the ASUS PCE-BE6500?
The ASUS PCE-BE6500 provides a convenient way to add WiFi 7 and Bluetooth 5.4 to a compatible desktop PC. Its tri-band support, high theoretical wireless speeds, external antennas, and WPA3 security make it suitable for demanding home and office networking. For full WiFi 7 functionality, use a compatible router and supported Windows 11 system.
