Detailed Specifications

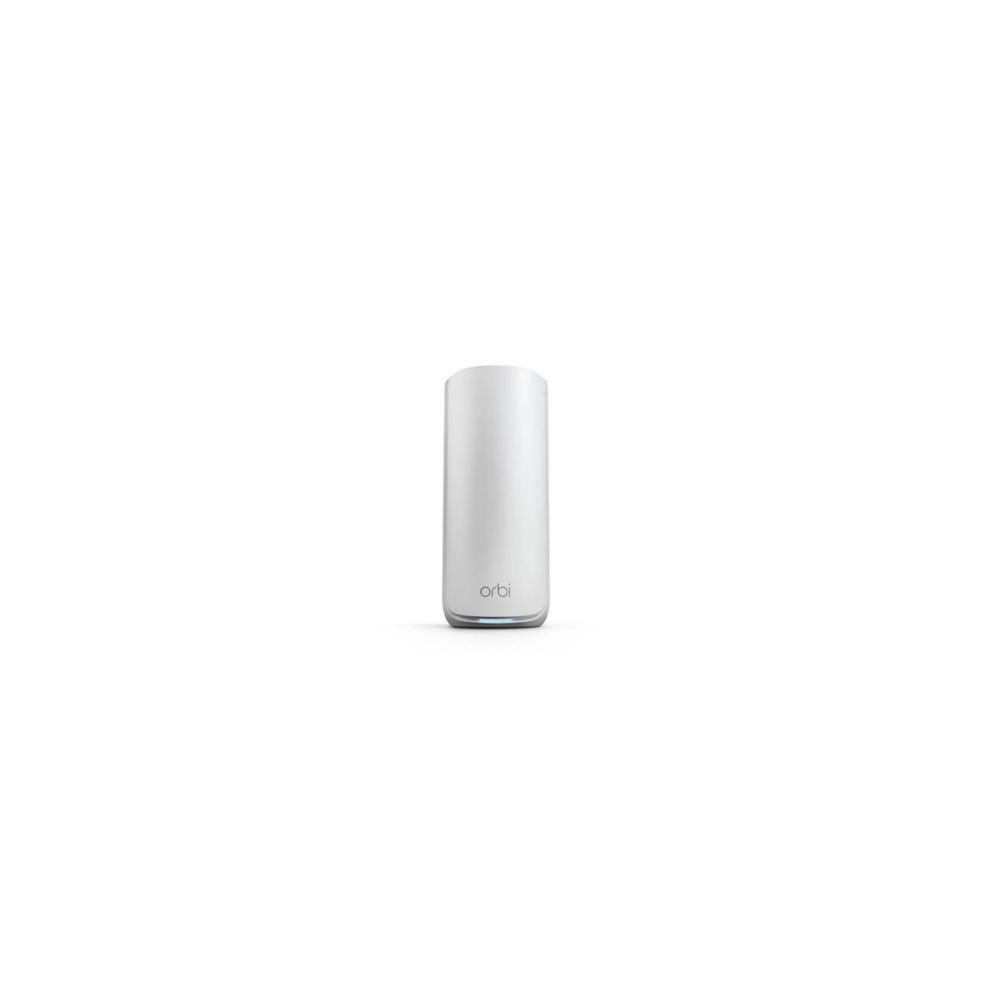

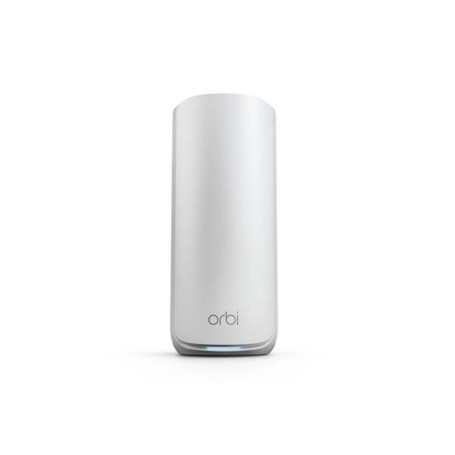

NETGEAR RBE870-100NAS Orbi 870 Series WiFi 7 Mesh Add-on Satellite
Overview :
The NETGEAR RBE870-100NAS is an Orbi 870 Series tri-band WiFi 7 add-on satellite designed to expand an existing Orbi 870 mesh network. It requires an Orbi 870 Series RBE871 router and is not a standalone router.
The satellite provides BE21000-class wireless performance with three bands: 2.4 GHz, 5 GHz, and 6 GHz. NETGEAR specifies up to 21 Gbps combined wireless speed, eight internal amplified antennas, and Multi-Link Operation using shared 5 GHz and 6 GHz backhaul.
Four 2.5GbE RJ45 LAN ports provide high-speed wired connectivity and optional Ethernet backhaul. The unit supports up to 3,000 sq. ft. of additional WiFi coverage and up to 150 devices. It should not be used as a standalone access point or paired with incompatible Orbi generations.
Key Features :
- WiFi 7 delivers up to 21 Gbps combined wireless speed
- Four 2.5GbE ports support high-speed wired connections
- Adds up to 3,000 sq. ft. of Orbi 870 WiFi coverage
- Eight amplified antennas provide broad wireless coverage
- Multi-Link Operation supports high-speed mesh backhaul
Specifications :
| Specification | Details |
|---|
| Brand | NETGEAR |
| Part Number | RBE870-100NAS |
| Product Type | WiFi 7 Mesh Add-on Satellite |
| Product Series | Orbi 870 |
| WiFi Standard | IEEE 802.11be (WiFi 7) |
| Wireless Configuration | Tri-band, 10 streams |
| Wireless Speed | Up to 21 Gbps / BE21000 |
| Wireless Bands | 2.4 GHz / 5 GHz / 6 GHz |
| Antennas | 8 internal high-performance antennas |
| Ethernet Ports | 4 x 10/100/1000/2500 Mbps RJ45 |
| Mesh Backhaul | Shared 5 GHz / 6 GHz MLO |
| WiFi Coverage | Up to 3,000 sq. ft. |
| Supported Devices | Up to 150 |
| Compatibility | Orbi 870 Series RBE871 router |
| Security | WPA3 |
