Detailed Specifications
NETGEAR RBE872-100NAS Orbi 870 Series WiFi 7 Mesh System
Overview :

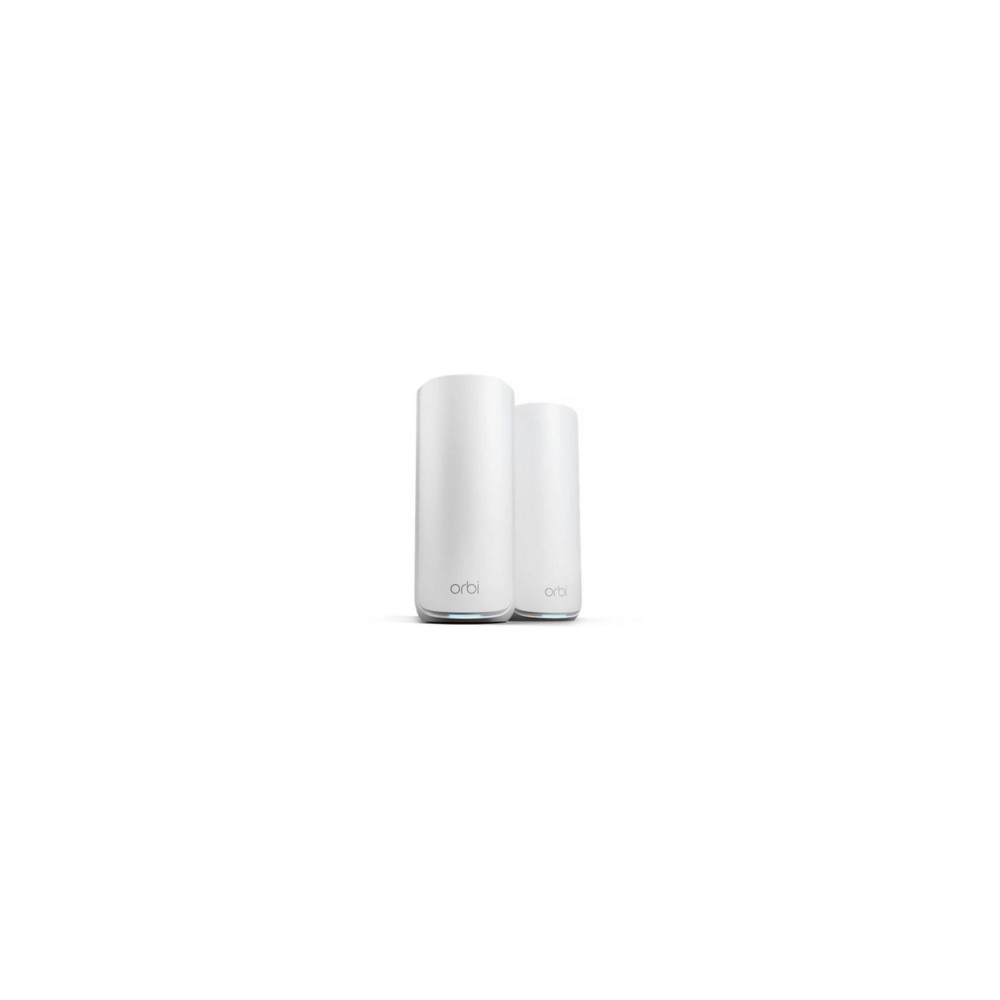

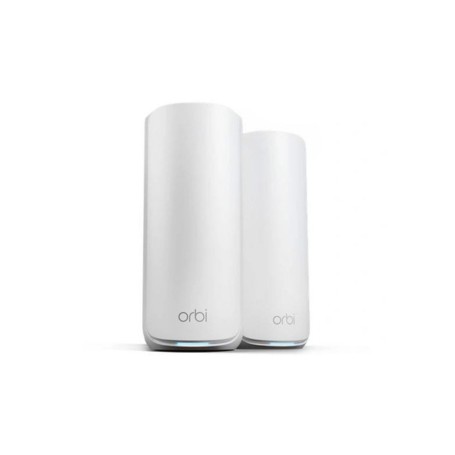

The NETGEAR RBE872-100NAS is the Orbi 870 Series two-piece tri-band WiFi 7 mesh system, consisting of one RBE871 router and one RBE870 satellite. It is designed for high-performance whole-home wireless deployments requiring multi-gigabit connectivity and broad coverage. NETGEAR specifies support for up to 6,000 sq. ft. and up to 150 connected devices.
The system uses three wireless bands with 10 streams and supports combined wireless speeds up to 21 Gbps. The router provides one 10GbE WAN port plus four 2.5GbE LAN ports, while the satellite provides four 2.5GbE LAN ports. Multi-Link Operation combines the 5 GHz and 6 GHz bands for mesh backhaul and client connectivity.
RBE872 is appropriate for homes and demanding edge environments requiring WiFi 7, 10GbE internet connectivity, multi-gigabit wired connections, and mesh coverage. It should not be selected when only basic WiFi connectivity is required or where enterprise WLAN management features beyond the Orbi platform are a requirement.
Key Features :
- WiFi 7 tri-band mesh delivers up to 21 Gbps wireless speed
- 10GbE WAN supports high-speed fiber and cable internet
- Four 2.5GbE LAN ports provide multi-gigabit wired access
- One router and satellite provide broad whole-home coverage
- Multi-Link Operation strengthens high-speed mesh backhaul
Specifications :
| Specification | Details |
|---|
| Brand | NETGEAR |
| Part Number | RBE872-100NAS |
| Product Type | Tri-Band WiFi 7 Mesh System |
| Product Series | Orbi 870 |
| System Configuration | 1 Router + 1 Satellite |
| WiFi Standard | IEEE 802.11be (WiFi 7) |
| Wireless Bands | 2.4 GHz / 5 GHz / 6 GHz |
| Wireless Streams | 10 |
| Maximum Combined WiFi Speed | Up to 21 Gbps |
| Router WAN | 1 x 10GbE RJ45 |
| Router LAN | 4 x 10/100/1000/2500 Mbps RJ45 |
| Satellite LAN | 4 x 10/100/1000/2500 Mbps RJ45 |
| Maximum Devices | Up to 150 |
| WiFi Coverage | Up to 6,000 sq. ft. |
| Processor | Quad-core 1.5 GHz |
| Security | WPA3 |
