Detailed Specifications
NETGEAR RBK12-100NAS - Whole Home AC1200 Mesh WiFi System
Overview :

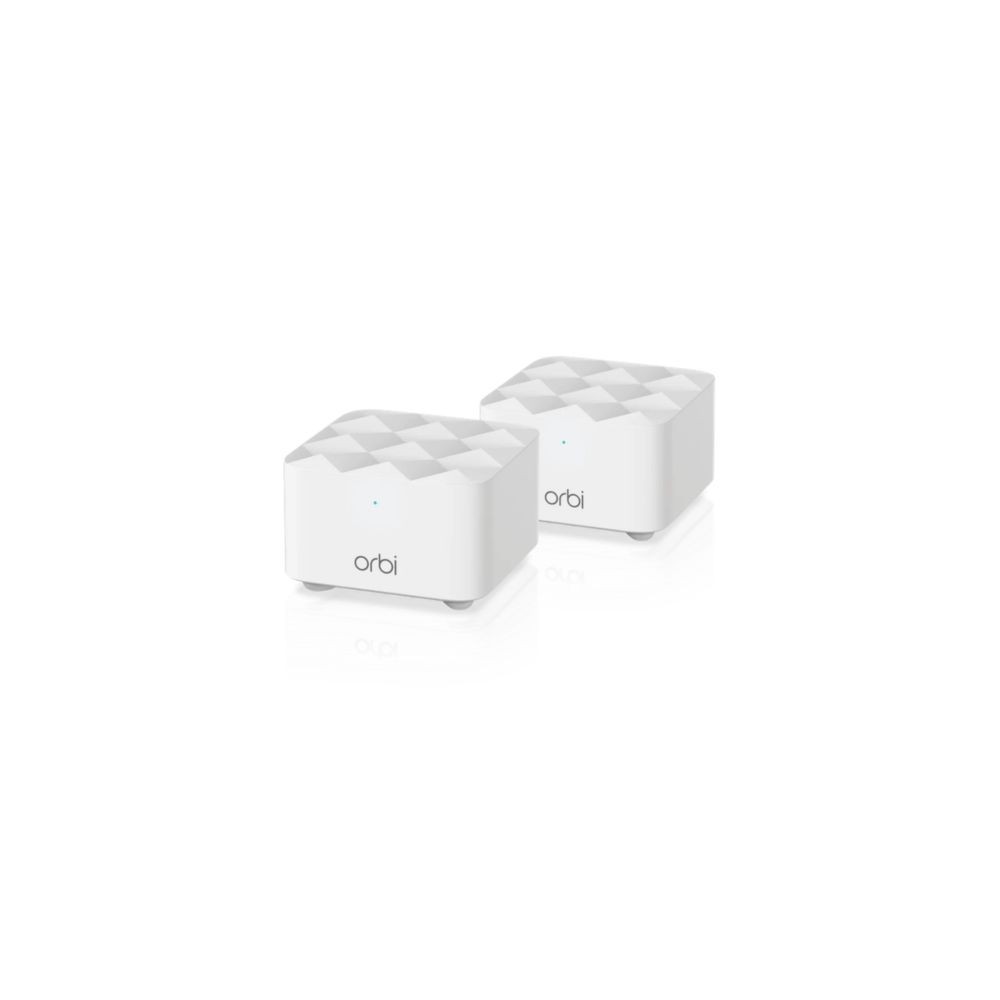

The NETGEAR RBK12-100NAS is a compact, dual-band Wi-Fi 5 (802.11ac) mesh wireless system comprising one router (RBR10) and one satellite (RBS10). Designed for residential, remote office, and edge branch deployments, it eliminates Wi-Fi dead zones across spaces up to 3,000 sq. ft. by delivering up to 1.2 Gbps aggregate throughput.
Engineered with a 710 MHz quad-core processor, 512 MB RAM, and 128 MB flash memory, the system efficiently handles simultaneous data streams and connected client devices.The router includes two auto-sensing Gigabit Ethernet ports (1 WAN, 1 LAN) for direct wired gateway connectivity and high-speed local network extension.
Deployable on standard flat surfaces, it supports dynamic beamforming and MU-MIMO technology to optimize wireless signal strength. Do not deploy in high-density enterprise environments requiring dedicated multi-gigabit backhauls or Wi-Fi 6E/7 frequency bands.
Key Features :
Delivers combined AC1200 speeds up to 1.2 Gbps across 2.4 GHz and 5 GHz.
Dual-node mesh coverage eliminates dead spots up to 3,000 square feet.
MU-MIMO capability enables concurrent streaming to multiple client devices.
Explicit & Implicit Beamforming boosts connection reliability and range.
Gigabit RJ45 Ethernet ports provide fast broadband and wired LAN access.
Specifications :
| Parameter | Details |
| Brand | NETGEAR |
| Part Number | RBK12-100NAS |
| Product Type | Whole Home AC1200 Mesh WiFi System |
| Wireless Standard | IEEE 802.11ac (Wi-Fi 5) |
| Data Transfer Rate | AC1200 (866 Mbps + 400 Mbps) |
| Processing Unit | Quad-Core 710 MHz |
| System Memory | 512 MB RAM / 128 MB Flash |
| Frequency Bands | Simultaneous Dual-Band (2.4 GHz & 5 GHz) |
| Interfaces / Ports | 1 x 10/100/1000 Mbps WAN, 1 x 10/100/1000 Mbps LAN (Router) |
| Wireless Security | AES-PSK 128-bit Encryption, WPA/WPA2-PSK |
| Antennas | 2 x High-Performance Internal Antennas per unit |
| Coverage Area | Up to 3,000 sq. ft. |
| Power Supply | 12V / 1A Power Adapters |
| Form Factor | Desktop / Compact Mesh Node |
